Name: 4 Ton 14.5 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Brand: Goodman
SKU: HA27763
Price: 6945 USD
Availability: InStock

✓ Link Copied!

GOODMAN

Item:

HA27763

Model:

GLXS5BA4810,CHPTA6030D3,GR9T961005CN

Condition:

New

Was: $6,945.00 Add to Cart for Discount

Payments

with financing > Apply Now

IWAE Summer Sale Up to 10% Sitewide Use Code: USA10

In stock

Ships Within 2-3 Business Days

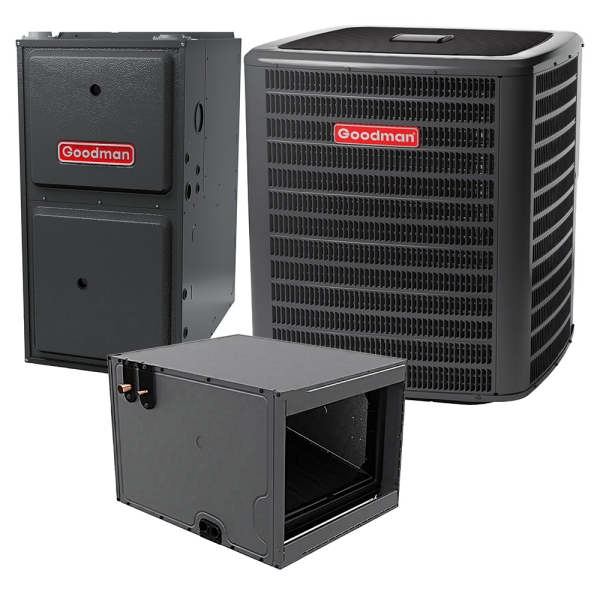

This Bundle Includes:

4 Ton 15.2 SEER2 Goodman Air Conditioner Condenser - R32

Item: HA27061Model: GLXS5BA4810 Qty: 1

5 Ton Goodman Evaporator Coil - Horizontal - 24.5" Cabinet - R-32

Item: HA25211Model: CHPTA6030D3 Qty: 1

100k BTU 96% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA25346Model: GR9T961005CN Qty: 1

Description / Documents

Additional Documents

From the Manufacturer

CAPFA/CAPTA/CHPTA/CAPEA R-32 Specification Manual

CHPTA R-32 Installation Manual

CHPTA R-32 Parts Manual

CHPTA Warranty

GD9T96/GRT96 Specification Manual

GLXS5B Specification Manual

Goodman Furnace Warranty Sheet

Goodman GLXS5 Warranty Manual

GR9T96 Parts Manual

GR9T96/GD9T96 Installation Manual

Customer Reviews / Q&A

Specifications

System Overview

Model	GLXS5BA4810,CHPTA6030D3,GR9T961005CN
AHRI Number	215381097
Gas Furnace Efficiency	96+%
Bundle Avg Coverage Area	2,000 - 2,400 Sq Ft
Bundle Cooling Capacity	4 Ton
Bundle Cooling Efficiency (SEER2)	14.5
Primary Heating Capacity	95,001 - 100,000 BTU
Region Compatibility	Nationwide

GLXS5BA4810 Specifications:

Model	GLXS5BA4810
UPC	663051735514
AHRI Number	215396371
Product Height (in)	36.5
Avg Coverage Area	2,000 - 2,400 Sq Ft
Product Length (in)	35.5
Compressor	Single Stage
Product Width (in)	35.5
Cooling Capacity	4 Ton
Electrical Phase	1-Phase
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Max Overcurrent Protection	40 amps
Weight (lbs)	249.000000
Refrigerant	R-32
Cooling Efficiency (SEER2)	15.2
Suction Line Size	1 1/8 inch
System Application Type	Central Split Systems
Voltage	240
Warranty	10 Year Parts
Region Compatibility	Nationwide

CHPTA6030D3 Specifications:

Model	CHPTA6030D3
UPC	663051693654
Product Height (in)	24.5
Air Flow Direction	Horizontal
Product Length (in)	21
Cooling Capacity	5 Ton
Product Width (in)	30
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Weight (lbs)	82.000000
Refrigerant	R-32
Suction Line Size	7/8 inch
Warranty	10 Year Parts

GR9T961005CN Specifications:

Model	GR9T961005CN
AHRI Number	215225030
Product Height (in)	34.5
Gas Furnace Efficiency	96+%
Product Length (in)	28.75
Product Width (in)	21
Air Flow Direction	Horizontal, Upflow
Blower Motor	High Efficiency
Cooling Compatibility (up to)	5 Ton
Electrical Phase	1-Phase
Exhaust Pipe	PVC
Fuel Source	Natural Gas
Gas Valve	Single Stage
Max Overcurrent Protection	15 amps
Weight (lbs)	140.000000
Primary Heating Capacity	95,001 - 100,000 BTU
System Application Type	Central Split Systems
Vent Connection	3 inches
Voltage	120
Warranty	10 Year Parts, Lifetime Heat Exchanger
