4 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
Keeping your home supplied with the temperatures you want throughout the year doesn’t have to be a struggle. If your HVAC hardware can’t seem to keep up with the modern climate in your region, let the 4 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 handle the heavy lifting of your home’s climate control. Backed by ETL listing and AHRI certification, the Goodman AC & Gas System passes the intensive inspections of independent agencies to verify the integrity of its safety and functional claims. Give your 2000 to 2400 square foot space the exact support it needs to ensure total comfort in every inch of the space with an upgrade to a 4 Ton Goodman Split System.

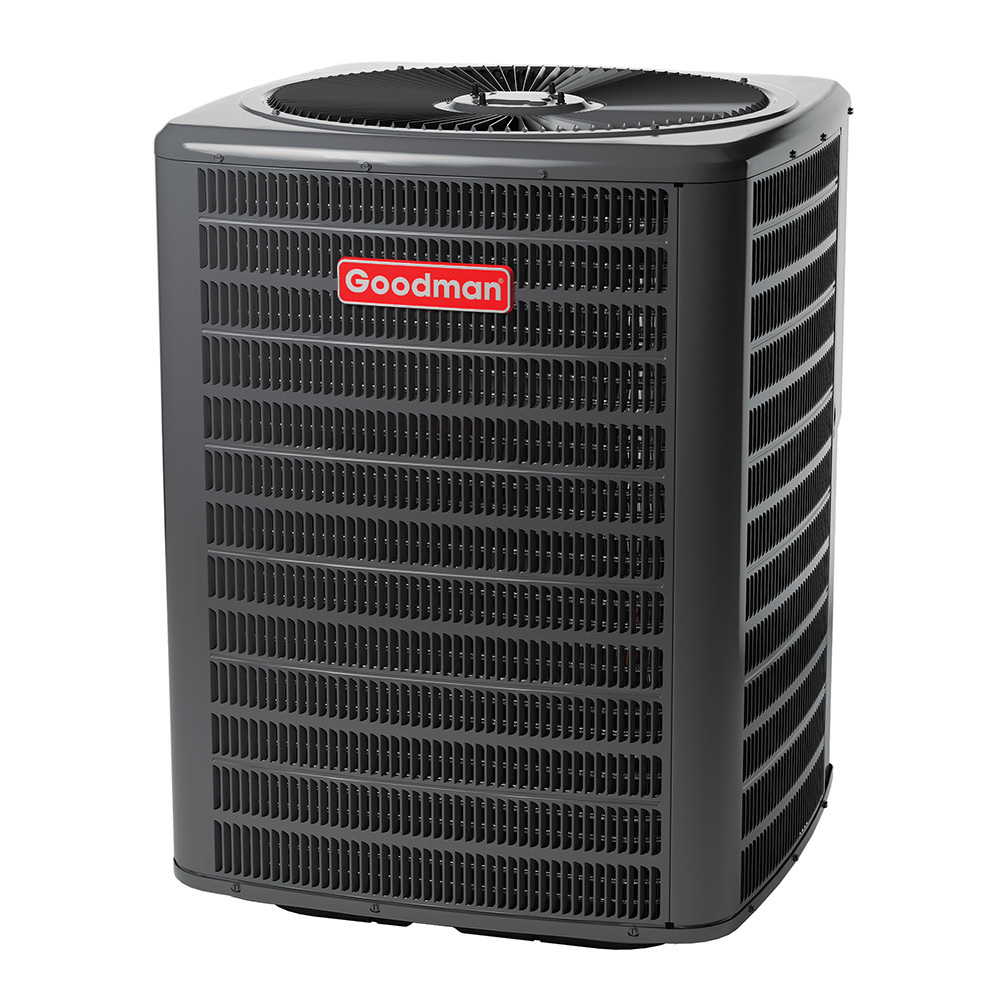

When hot weather leaves the outdoors feeling like a sauna, the AC in the 4 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 crafts the brisk temperatures you crave to break the heat. Adding to the innate durability of the casing with a steel louver coil guard, the Goodman AC manages to earn 500-hour salt-spray approval that highlights the longevity of the hardware. Between the side panel entry and removable top grille that complies with UL 60335-2-40 regulations, any trained technician can tackle installation, maintenance, and other tasks quickly and easily. Outfitted with a factory-installed filter drier, high-efficiency scroll compressor, and extended-life capacitors, the Goodman Split System has everything you need and more to keep cool all summer long.
As temperatures outside plummet, the furnace in the 4 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 cranks up the heat to keep your indoor ambiance cozy and comfortable. Insulation lines the inside of the heat exchanger and blower sections in the heavy-gauge steel cabinet, helping the Goodman Gas Furnace keep cabinet air leakage at or under a rate of 2% by minimizing heat loss during normal operation. Equipment like a multi-speed ECM blower motor, two-stage gas valve, and two heat exchangers ensure the Goodman Split System performs with quiet efficiency that optimizes your indoor ambiance from every angle. Equipped with left and right side options for gas and electrical connections and the means to work equally well in direct and non-direct venting applications, the Goodman Furnace is the versatile HVAC solution you’ve been looking for.

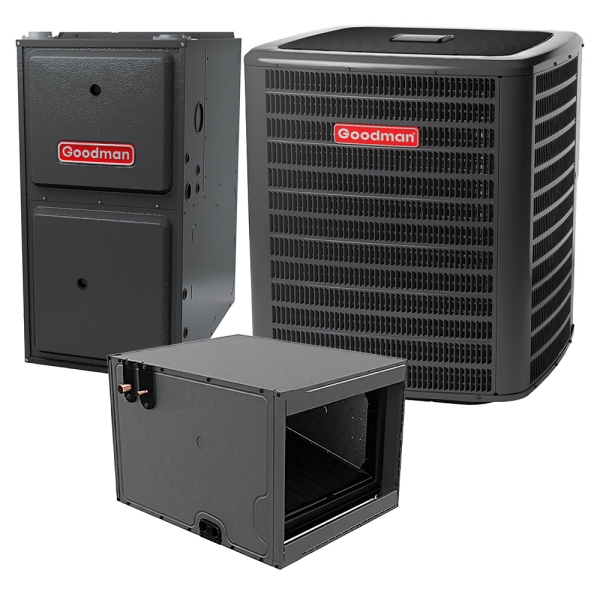

Between the powerful AC condenser, furnace, and evaporator coil included in this HVAC bundle, there’s no reason to accept discomfort in any season within your home. Snag a 4 Ton 120k BTU Horizontal Goodman Central Air Conditioner & Gas Furnace Split System utilizing R32 refrigerant today and feel the difference in your living space from the very first cycle.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA4810,CHPTA6030D3,GR9S961205DN |
|---|---|
| AHRI Number | 215381088 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA4810 Specifications:
| Model | GLXS5BA4810 |
|---|---|
| UPC | 663051735514 |
| AHRI Number | 215396371 |
| Product Height (in) | 36.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 249.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA6030D3 Specifications:
| Model | CHPTA6030D3 |
|---|---|
| UPC | 663051693654 |
| Product Height (in) | 24.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 82.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9S961205DN Specifications:
| Model | GR9S961205DN |
|---|---|
| AHRI Number | 215224977 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 24.5 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 156.000000 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
