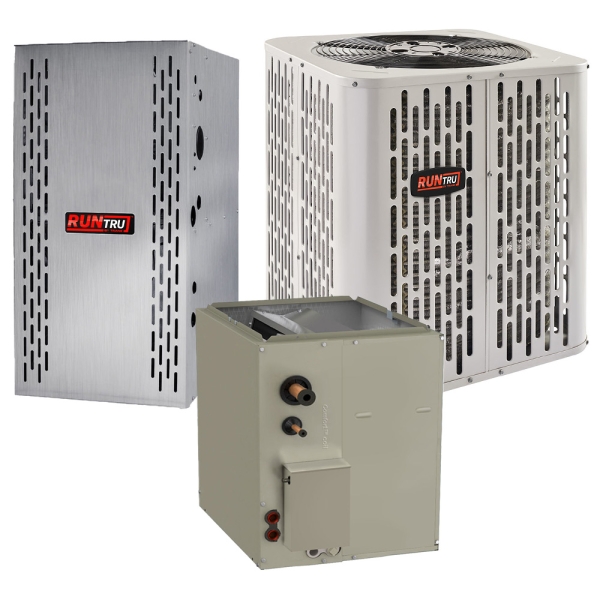

4 Ton 15.2 SEER2 80K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
RUNTRU

Accessories
Description / Documents
Don’t stress about how to make a comfortable and inviting space for your family when the process is easier than you think. While the recent updates in refrigerant regulations and the wide array of options on the market make the process seem overwhelming, the 4 Ton 15.2 SEER2 80k BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition simplifies the process by providing an all-in-one solution that meets both your heating and cooling needs. With many components earning AHRI and Energy Star certifications, in addition to ETL and UL listings, this Trane Heat Pump & Furnace proves the validity of every safety and functional claim. Built for homes between 2000 and 2400 square feet, this 4 Ton Trane System keeps your home at comfortable temperatures all year long.
Built with a carefully selected mix of premium materials, the heat pump in the 4 Ton 15.2 SEER2 80k BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition ensures reliable comfort in every season. With an all-aluminum coil, this Trane Split System offers exceptional resistance to rust and corrosion, providing long-lasting performance that doesn’t quit. The scroll compressor runs quietly and efficiently, delivering a level of comfort that extends beyond temperature management. The pre-painted steel cabinet and base pan provide robust protection against the elements, allowing the Trane Heat Pump to produce high-quality climate control year after year.

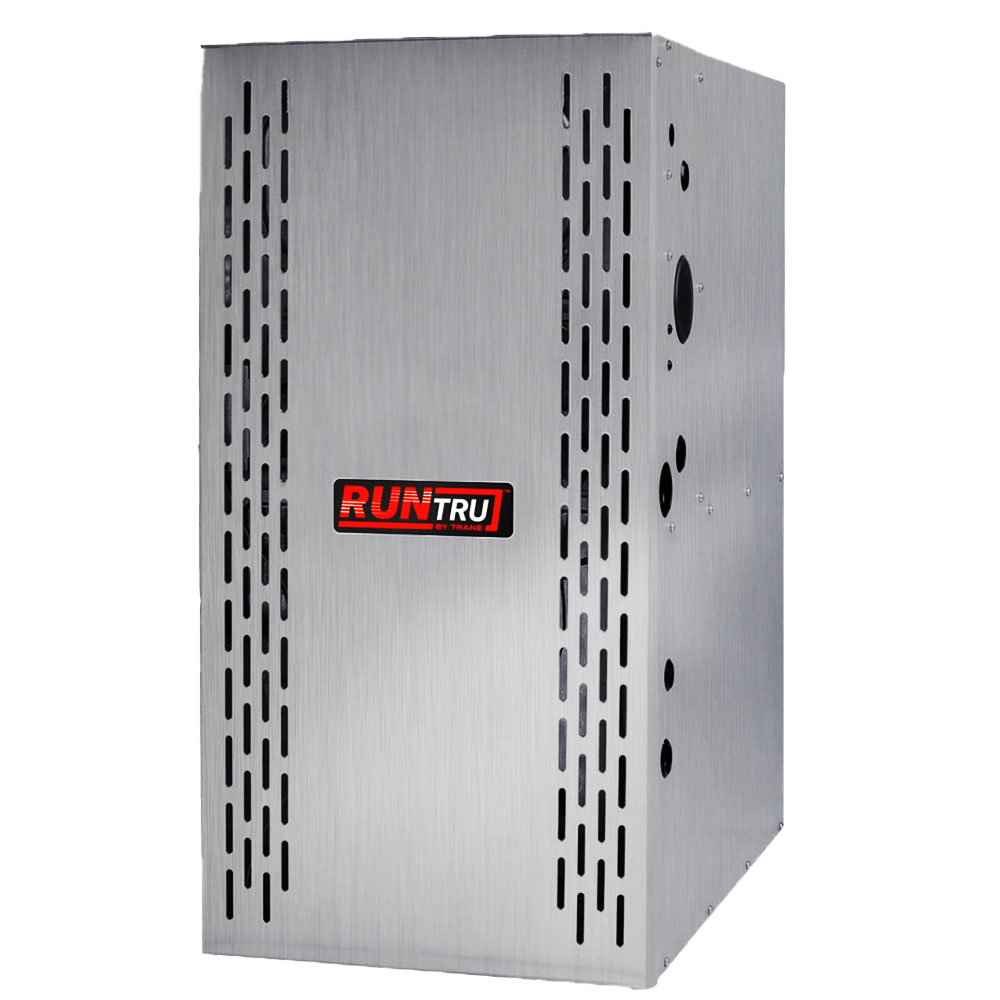

When the frigid winter weather hits, the gas furnace in the 4 Ton 15.2 SEER2 80k BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition provides the burst of sultry heat that creates a cozy ambiance throughout your home. Crafted to accommodate multiple venting options for every setup, this Trane Multiposition Furnace offers the versatility needed to adapt to your home’s specific layout. Enclosed in a strong galvanized steel cabinet, this Trane Split System protects internal components from any household hazards, ensuring the reliable performance you've come to expect.
Pushing the system’s efficiency to the next level, the evaporator coil in the 4 Ton 15.2 SEER2 80k BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition works seamlessly with the other components to guarantee optimal results all year long. Tested at pressures exceeding 500 PSI to identify any leaks, this Trane System is ready to perform at peak capacity right after setup. Designed to make both installation and servicing as simple as possible, this Trane Split System provides consistent, year-round comfort.
With all these impressive features available to you, why delay your upgrade any longer? Snag this 4 Ton 80k BTU Trane RunTru Central Heat Pump & Gas Furnace Split System today and transform your home into the peaceful sanctuary you've always envisioned.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5HP5048A1000A, A801X080CM5S, 5TXCC007AS3HCA |
|---|---|
| AHRI Number | 214296642 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Heat Pump Efficiency (HSPF2) | 7.8 |
| Region Compatibility | Nationwide |
A5HP5048A1000A Specifications:
| Model | A5HP5048A1000A |
|---|---|
| UPC | 612461003751 |
| Product Height (in) | 45.13 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 34.25 |
| Compressor | Single Stage |
| Product Width (in) | 37.25 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 301.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A801X080CM5SD Specifications:
| Model | A801X080CM5SD |
|---|---|
| UPC | 850017455436 |
| AHRI Number | 204606304 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 142.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
5TXCC007AS3HCA Specifications:
| Model | 5TXCC007AS3HCA |
|---|---|
| UPC | 612461306449 |
| Product Height (in) | 26.85 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21.5 |
| Cooling Capacity | 3.5 Ton, 4 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 61.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
