This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.
Out of stock
Loading...

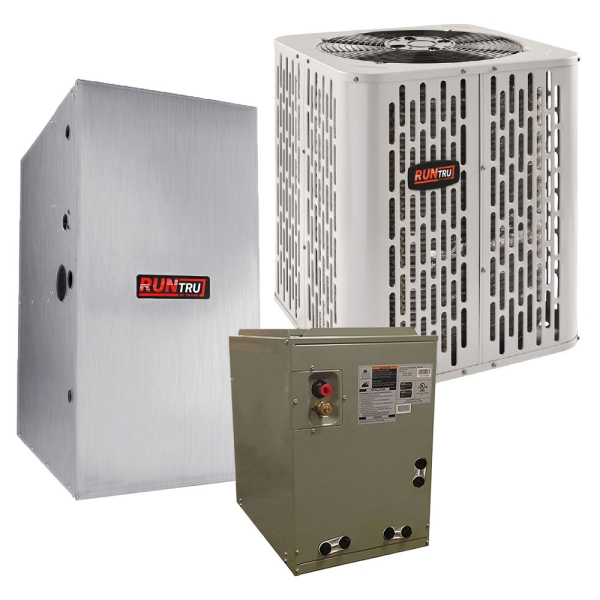

Banishing the frustration caused by the inconsistent temperatures that disrupt the ambiance of your space shouldn’t need a more intricate change than replacing your antiquated HVAC system. Usher in the reliable performance you've been dreaming of in your home with the cutting-edge technology included in the 4 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal. Conforming to the standards set forth in UL 1995 while obtaining AHRI certification, this Trane Central Heat Pump aims to validate the legitimacy of all functional claims. This 4 Ton Trane system achieves a SEER2 rating of 15 and an exceptional AFUE rating of 96% to effortlessly manage your 2000 to 2400 square foot living space.
Accessories
Description / Documents

Banishing the frustration caused by the inconsistent temperatures that disrupt the ambiance of your space shouldn’t need a more intricate change than replacing your antiquated HVAC system. Usher in the reliable performance you've been dreaming of in your home with the cutting-edge technology included in the 4 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal. Conforming to the standards set forth in UL 1995 while obtaining AHRI certification, this Trane Central Heat Pump aims to validate the legitimacy of all functional claims. This 4 Ton Trane system achieves a SEER2 rating of 15 and an exceptional AFUE rating of 96% to effortlessly manage your 2000 to 2400 square foot living space.

Upon completion of the installation process, the 4 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal demonstrates how it outperformed the competition. Utilizing 10 feet of tested connecting line and the smallest rated indoor evaporative coil match, this Trane Gas Furnace operates in ambient temperatures ranging from as high as 115 degrees all the way down to 55 degrees Fahrenheit, even working in temperatures down to 20 degrees with the aid of optional accessory kits. The refrigerant system controls include a condenser fan, compressor contactor, and low and high pressure switches. The centrifugal oil pump even promises over temperature and pressure protection, providing lowered vibration and reduced sound to create the tranquil atmosphere you desire.

The array of powerful safety nets in place allows the 4 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal to do all it can to shield the internal hardware. Crafted from pre-painted heavy gauge, galvanized steel with a weather-resistant powder paint coating, the casing of this Trane RunTru Split System even passes a thorough 1000 hour salt spray test. Equipped with both cooling only and heat/cooling modes, the thermostat remains safe behind a locking cover to safeguard the unit from potential issues. The condenser coil further elevates these safety precautions, guarding all four sides with louvered panels to provide low airflow resistance and efficient heat transfer and let you relax in your perfect environment regardless of the conditions outside.

With unparalleled climate control at your disposal, why put off the choice any longer? Obtain this Trane Split System and transform your home into the haven you've been looking for.

Customer Reviews / Q&A
Specifications

System Overview

Model A4HP4048D1000,A952V100CD5S,4MXCC009AC6
AHRI Number 211583390
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency (SEER2) 14.3 SEER2
EER2 12
Heat Pump Efficiency (HSPF2) 7.50
Region Compatibility Nationwide

A952V100CD5SB Specifications:

Model A952V100CD5SB
AHRI Number 204606328
Product Height (in) 34
Gas Furnace Efficiency 95%
Product Length (in) 28.75
Configuration Floor Mounted
Product Width (in) 24.5
Air Flow Direction Horizontal, Upflow
Avg Coverage Area 2,500 - 3,000 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 167.000000
Primary Heating Capacity 100,001 - 105,000 BTU
System Application Type Central Split Systems
Vent Connection 2 inches
Voltage 120
Warranty 5 Year Parts, 20 Year Heat Exchanger

4MXCC009AC6 Specifications:

Model 4MXCC009AC6
UPC 647535679631
Product Height (in) 30
Air Flow Direction Horizontal, Vertical
Product Length (in) 21
Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
Product Width (in) 21
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 91.000000
Refrigerant R-410a
Suction Line Size 7/8 inch
Warranty 5 Year Parts, 10 Year Evaporator Coil
