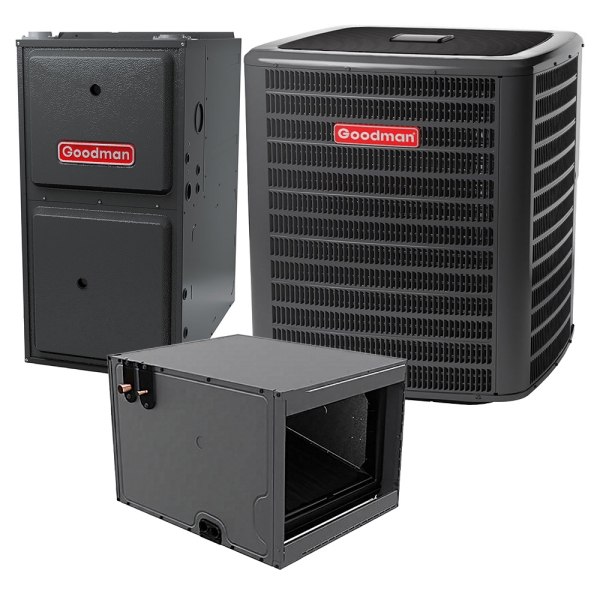

4 Ton 16.7 SEER2 2 Stage 120k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
No matter the time of the year, your HVAC system should be able to keep your indoor climate catered to your preferences. If modern day climate changes have rendered your current heating and cooling system ineffective, make a change for the better with the 4 Ton 16.7 SEER2 2 Stage 120k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32. Having gained the backing of ETL listing and AHRI certification, the Goodman AC & Gas System passes the intensive tests of third-party agencies to prove the validity of its safe, dependable operation claims. Keep your 2000 to 2400 square foot space comfortable in any weather with an upgrade to a 4 Ton Goodman Split System.
When the hot summer sun beats down, the AC in the 4 Ton 16.7 SEER2 2 Stage 120k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 keeps you chill. Protected by a heavy-gauge galvanized steel cabinet treated with a baked-on powder-paint finish, then shielded further by a steel louver coil guard and rust-resistant screws, the Goodman AC earns 500-hour salt spray approval to prove longevity. Using a side panel and removable grille-style top that’s compliant with UL 60335-2-40 regulations, any trained technician can access the internals for easy installation and servicing. Equipped with factory-installed hardware that includes a filter drier, transformer, and high and low pressure switches, the Goodman Split System has the cooling capabilities you require to fight off the heat of summertime all season long.
As temperatures outside take a turn, the furnace in the 4 Ton 16.7 SEER2 2 Stage 120k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 ensures the cozy conditions you crave to keep winter weather at bay. The heavy-gauge steel cabinet is treated with a baked enamel coating for lasting durability, all while affording the Goodman Furnace the flexibility to suit direct and non-direct venting setups as well as left and right side hook-ups for gas and electrical service. Thanks to two heat exchangers, a two-stage gas valve, ComfortBridge technology, and a two-speed induced draft motor, it’s easy to see the writing on the walls: you can enjoy toasty temperatures all winter long with an upgrade to a Goodman Split System.
With this perfect combination of AC condenser, furnace, and evaporator coil bundled together to offer a single comprehensive heating and cooling solution, there’s no reason to settle for discomfort another moment. Bring in a 4 Ton 120k BTU Horizontal Variable Speed 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System utilizing R32 refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXT7CA4810,CHPTA6030D3,GRVT961205DN |
|---|---|
| AHRI Number | 216613971 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 16.7 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| Region Compatibility | Nationwide |
GLXT7CA4810 Specifications:
| Model | GLXT7CA4810 |
|---|---|
| UPC | 633190240095 |
| AHRI Number | 217469152 |
| Product Height (in) | 41.6 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Two Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 276.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA6030D3 Specifications:
| Model | CHPTA6030D3 |
|---|---|
| UPC | 663051693654 |
| Product Height (in) | 24.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 82.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GRVT961205DN Specifications:
| Model | GRVT961205DN |
|---|---|
| UPC | 633190304377 |
| AHRI Number | 216619916 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.875 |
| Configuration | Floor Mounted |
| Product Width (in) | 24.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | Variable Speed |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 156.000000 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
