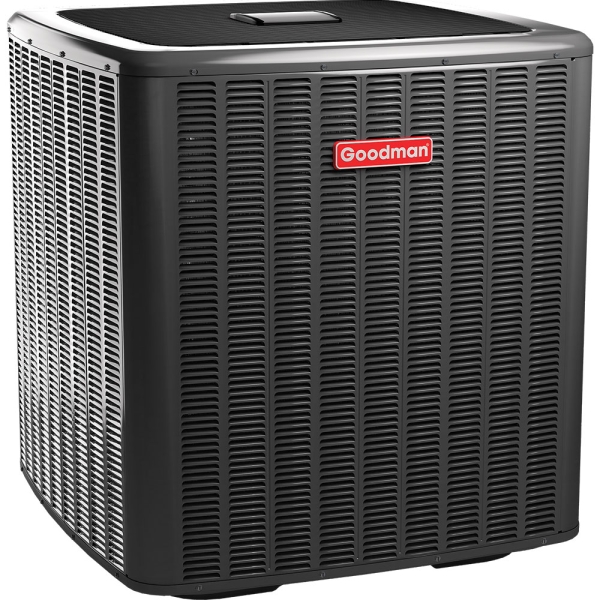

4 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser

Item: HA10542
Model: DSZC160481
Condition: New

4 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser Zoom

Photo Gallery

You don't have to ruin your finances to afford a superior quality HVAC condenser. The Goodman DSZC160481 4.0 Ton 16 SEER Heat Pump is an energy efficient unit with an affordable price tag. It features a Copeland UltraTech Two-Stage Scroll Compressor, high-density foam compressor cover, Copeland ComfortAlert Diagnostics, two-speed condenser fan motor, and chlorine-free refrigerant. You even get a 10-Year Parts Limited Warranty and a Lifetime Compressor Limited Warranty.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Are you looking for a heating and cooling solution that doesn't require gas? The 4 Ton 16 SEER 2 Stage Goodman DSZC160481 Central Heat Pump Condenser is both energy efficient and can keep you comfortable all year long!

Goodman brings you a two stage heat pump system that is among the best on the market. With low sound levels and energy savings, the second stage of heating/cooling is a popular choice for any homeowner. You will also be glad to know that this compressor comes with a lifetime warranty should you ever have a problem. As an added bonus, this unit comes charged with the environmentally friendly R-410a refrigerant. Which is nice if you like living in a chlorine-free, non-ozone depleting environment.

The 4 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser comes with many safety features that will keep your home secure in the unlikely event there is a problem. The low pressure switch will shut the system down if a refrigerant leak occurs. In addition, the factory installed filter dryer will help remove contaminants that may have entered the refrigeration circuit. And no one likes contaminants in the refrigeration circuit!

So, keep Goodman on the top of your list when looking for an efficient and reliable HVAC manufacturer at an affordable price. The 4 cooling tonnage rating makes this system suitable for homes that are 2100 to 2700 square feet in size, depending on your location and home build. Pair this condenser with a Goodman air handler to make your complete installation seamless. If you live in a cooler climate you may want a backup source of heat like an auxiliary heat kit that can fit easily into many Goodman air handlers.

You don't have to ruin your finances to afford a superior quality HVAC condenser. The Goodman DSZC160481 4.0 Ton 16 SEER Heat Pump is an energy efficient unit with an affordable price tag. It features a Copeland UltraTech Two-Stage Scroll Compressor, high-density foam compressor cover, Copeland ComfortAlert Diagnostics, two-speed condenser fan motor, and chlorine-free refrigerant. You even get a 10-Year Parts Limited Warranty and a Lifetime Compressor Limited Warranty.

Goodman HA10542

Manufacturer Highlights

The Goodman® brand DSZC Series Heat Pumps offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with two low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • SmartShift™ technology to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • High- and low-pressure switches
  • Fully charged for 15' of tubing length
  • Two-speed quiet condenser fan motor
  • Sweat connection service valves with easy access to gauge ports
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Rust-resistant coated screws
  • Compact footprint
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DSZC160481
UPC 663051509481
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Two Stage
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 38.25
Product Length (in) 35.5
Product Width (in) 35.5
Cooling Efficiency 16 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight (lbs) 327.0000
Region Compatibility Nationwide
