This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

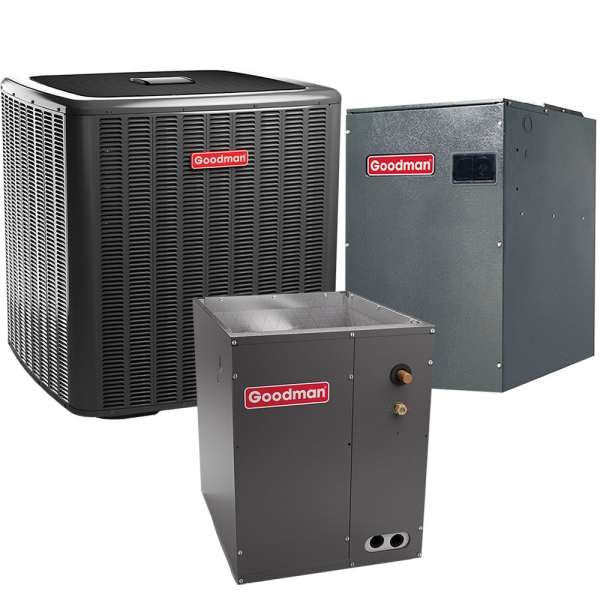

4 Ton 16 SEER 2 Stage Variable Speed Goodman Central Air Conditioner Split System - Vertical

Item: HA11365
Models: DSXC160481 , MBVC2000AA-1, CAPF4860D6, TX5N4
Condition: New
DSXC160481 air conditioner features a 2-stage condenser, ComfortNet compatibility, and 16 SEER. CAPF4860D6 cased evaporator coil uses "A" design with multiple features for no-waste processing of R-410A refrigerant. MBVC2000AA multi-speed modular blower features advanced controls including an MBR control board with a fan delay in cooling mode, separate from airflow. AHRI certified, backed by Goodman's industry-leading warranty, this vertical central split system has cool power.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

4 to 5 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet 4 to 5 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet Item: HA10477 Model: CAPF4860D6 Qty: 1
3.5 to 5 Ton Goodman Thermostatic Expansion Valve Kit 3.5 to 5 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11903 Model: TX5N4 Qty: 1

Overview

DSXC160481 air conditioner features a 2-stage condenser, ComfortNet compatibility, and 16 SEER. CAPF4860D6 cased evaporator coil uses "A" design with multiple features for no-waste processing of R-410A refrigerant. MBVC2000AA multi-speed modular blower features advanced controls including an MBR control board with a fan delay in cooling mode, separate from airflow. AHRI certified, backed by Goodman's industry-leading warranty, this vertical central split system has cool power.

Goodman 4 Ton 16 SEER 2 Stage Central Air Conditioner Condenser - DSXC160481

Goodman HA10535

Manufacturer Highlights

The Goodman® brand DSXC Series Air Conditioners offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with 2 low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of 6 fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches - Factory-installed filter drier
  • Coil and ambient temperature sensors
  • Two-speed, quiet condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Goodman 4 to 5 Ton Variable Speed Modular Blower - MBVC2000AA-1

Goodman HA10945

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Goodman 4 to 5 Ton Evaporator Coil - CAPF4860D6

Goodman HA10477

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DSXC160481,CAPF4860D6,MBVC2000AA,TX5N4
UPC 663051534148
AHRI Number 200583972
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 16 SEER
EER 12.5
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DSXC160481 Specifications:

Model DSXC160481
UPC 663051534148
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Two Stage
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 45 amps
Product Height (in) 36.25
Product Length (in) 35.5
Product Width (in) 35.5
Cooling Efficiency 16 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight (lbs) 241.0000
Region Compatibility Nationwide

MBVC2000AA-1 Specifications:

Model MBVC2000AA-1
UPC 663051528086
Blower Motor Variable Speed
Condenser/Coil Compatibility 4 Ton, 5 Ton
Cooling Capacity 4 Ton, 5 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Product Height (in) 30
Product Length (in) 21
Product Width (in) 24.5
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 86.0000

CAPF4860D6 Specifications:

Model CAPF4860D6
UPC 663051446984
Air Flow Direction Vertical
Cooling Capacity 4 Ton, 5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 30
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 68.0000

TX5N4 Specifications:

Model TX5N4
UPC 681344941473
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
