Overview
Product Features

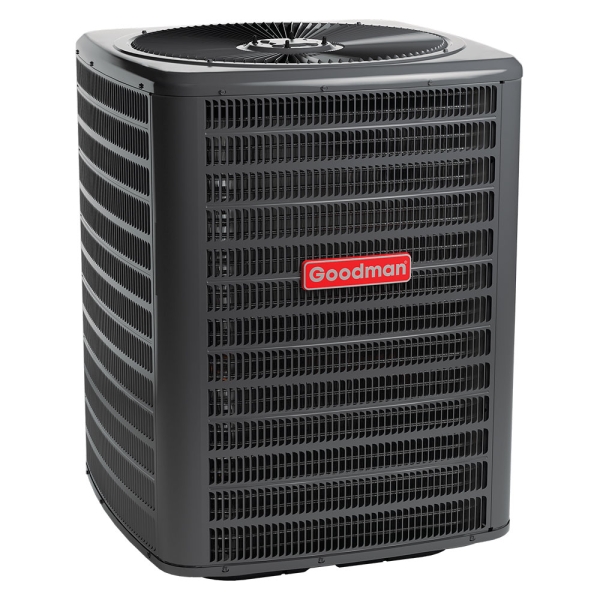

Don't settle for substandard air comfort. Stay cool and save with the Goodman GSX16 4.0 Ton 16 SEER Air Conditioner. This eco-safe HVAC unit from Goodman is built for efficiency and reliable conditioned air production. It has durable components ensured with a 10-Year Parts Limited Warranty, and a 10-Year Compressor Limited Warranty just for the high efficiency scroll compressor.
Manufacturer Highlights
The Goodman® brand GSX Series Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Energy-efficient compressor
- Factory-installed filter drier
- Copper tube/aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified
- ETL Listed
Cabinet Features
- Goodman® brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Specifications
Product Specifications
| Model | GSX160481 |
|---|---|
| UPC | 663051517530 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Lineset Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Product Height | 39.5 |
| Product Length | 35.5 |
| Product Width | 35.5 |
| Cooling Efficiency | 16 SEER |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight | 241.0000 |
| Region Compatibility | Nationwide |
Reviews
Customer Reviews
Accessories
Related Accessories
Air Handlers We Recommend
include item
-
4 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet
ITEM: HA10415 MODEL: AVPTC48D14
Evaporator Coils We Recommend
include item
-
4 to 5 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet
ITEM: HA10479 MODEL: CAPF4961D6
Fuel Furnaces We Recommend
include item
-
100k BTU 80% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet
ITEM: HA10684 MODEL: GMVC81005CN
-
120k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet
ITEM: HA10692 MODEL: GMVC961205DN
Electric Heat Strips We Recommend
include item
-
15kW Goodman Electric Heat Kit for Smartframe Air Handlers - Circuit Breaker
ITEM: HA10924 MODEL: HKSC15XB
HVAC Parts & Accessories We Recommend
include item
Thermostats We Recommend
include item
Equipment Pads We Recommend
include item
Q & A
Q&A: Ask Questions, Get Answers
Do you have questions about this product?
What size pad is required For a GSX160481 condenser?
