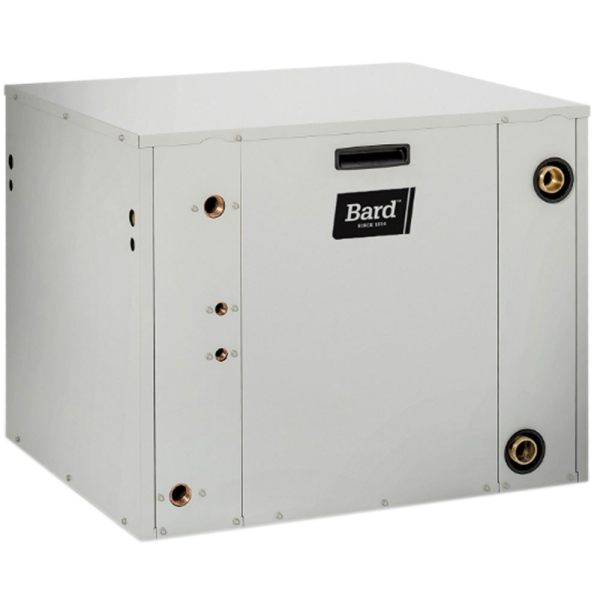

4 Ton 21.2 EER Bard Geothermal Radiant Floor System
Shop All BARD

Description / Documents
Ready to let your aging home heating and cooling system get some rest after decades of faithful service? Enter the realm of future climate control solutions with the 4 Ton 21.2 EER Bard Geothermal Radiant Floor System. Excelling in radiant floor heating, domestic water heating, snow/ice melt settings, and more, this Bard Geothermal System offers a myriad of hydronic options. With an out of this world 21.2 EER rating, the Bard GeoTrip Heat Pump accommodates water temperatures ranging from 40 to 75 degrees Fahrenheit in ground water applications or temperatures spanning 25 to 110 degrees Fahrenheit for ground loop setups. Supported by AHRI and Energy Star certifications, along with ETL listing, you can relax knowing this 4 Ton Bard has undergone thorough testing to guarantee the capacity to handle your 2000 to 2400 square foot space.
Crafted for a user-friendly experience, the 4 Ton 21.2 EER Bard Geothermal Radiant Floor System is brimming with features ensuring resilience and ease of use. The galvanized 16 gauge zinc coated steel cabinet, coated with baked-on enamel, empowers this 4 Ton Bard System to endure a stringent 1000 hour salt spray test following ASTM B117-03 standards. Both the front and rear service doors are forged from 20 gauge steel, further fortifying durability. The included liquid line drier shields the internals from moisture, while service access ports facilitate easy service pressure checks of suction and discharge pressures. Including the geothermal logic control featuring diagnostic lights for streamlined troubleshooting, this Bard Radiant Floor System is built to provide you with peace of mind.
With so many safety features put in place, the 4 Ton 21.2 EER Bard Geothermal Radiant Floor System is primed to prioritize delivering reliable results for your home. The thermostatic expansion valve allows for a wide range of refrigerant control, offering 2-way operation. The multi-capacity two-stage Aquastat stages between full and part-load capacity without cycling the compressor fully, boosting energy efficiency and enhancing the overall system life. The Copeland step-capacity scroll compressors are 2-stage, bolstering the operational efficiency and increasing the overall durability while also helping to hush operational noise. The compressor is even mounted on a full floating base with double grommets and equipped with a sound cover, bumping up your comfort to new heights in both climate control and quality of life.
With all these benefits within reach, why postpone the decision another moment? Seize this Bard Geothermal Floor System and enjoy the consistent climate control you've been looking for.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GW0481S1-A1RXCX |
|---|---|
| AHRI Number | 6345914 |
| Product Height (in) | 26.31 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 28.29 |
| Compressor | Two Stage |
| Product Width (in) | 33.38 |
| Cooling Capacity | 4 Ton |
| EER | 21.2 |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (COP) | 3.85 |
| HWG Connection | 1 inch |
| Load Connection | 1 inch |
| Loop Connection | 1 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 385.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Series | GW Series |
| Voltage | 240 |
| Warranty | 10 Year Parts |
