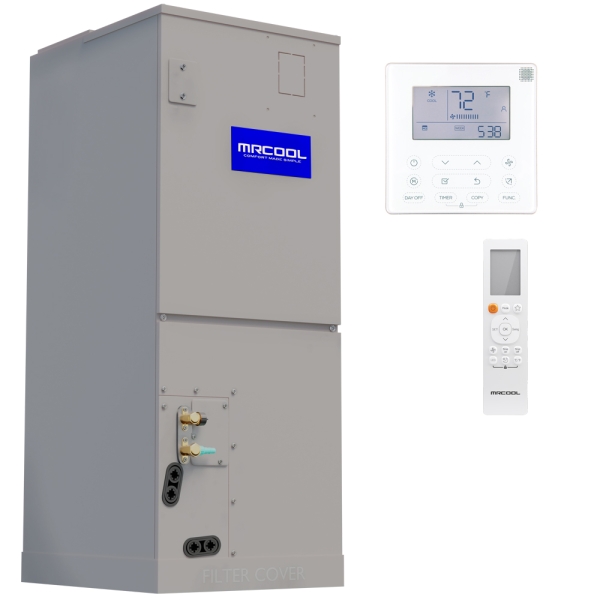

4 Ton MrCool Central Ducted Air Handler - Multiposition
Shop All MRCOOL
This product has been discontinued.
Recommended Alternative:
Description / Documents
Superior comfort in a home is a priority and can be effortlessly achieved with the 4 Ton MrCool Central Ducted Air Handler. The system is reliable, durable, and energy efficient. The air handler is capable of heating or cooling a space of up to 2,000 square feet, and features a SEER of 17.3. The handler proves itself to be an advanced, yet affordable comfort upgrade solution for any home.
The durability of the 4 Ton MrCool Central Ducted Air Handler is sure to increase the longevity of the system, allowing enjoyment of its effectiveness long-term. It is created with a durable build and finish made of high quality painted galvanized steel. The removable filter option will ensure you and your family are able to breathe the healthiest, cleanest air possible. The handler features a self-diagnostic feature allowing you to check the handler and the thermostat for any error codes. By doing this before the HVAC technician arrives, time and money can be saved on any maintenance needs.
Installation is easy and cost-saving thanks to the multi-position configuration options of the 4 Ton MrCool Central Ducted Air Handler. An HVAC technician is able to install it in an upflow, downflow, horizontal left, or horizontal right orientation. This saves on installation time and cost by not requiring an HVAC professional to adjust any preexisting ductwork. A heating kit can also be conveniently installed in the handler if desired. The system is compatible with the No Vac Quick Connect Line Set.
This air handler includes a wired thermostat and wireless remote. With the thermostat, you're able to accurately and easily adjust the temperature of your space. In addition, the wireless remote not only can adjust the temperature as well, but it also can initiate the Follow Me function. With this function, the handler automatically measures and adjusts the temperature so you can experience your most comfortable environment no matter where you and the remote are in the room.
The 4 Ton MrCool Central Ducted Air Handler confidently features a 10-year parts and service warranty. The service warranty conveniently does not require any registration.
With this reliable and durable air handler, long lasting comfort is one simple installation away.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CENTRAL-48-HP-MUAH-230-00 |
|---|---|
| UPC | 840255520126 |
| AHRI Number | 208960639 |
| Product Height (in) | 49.02 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.02 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 156.750000 |
| Refrigerant | R-410a |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
