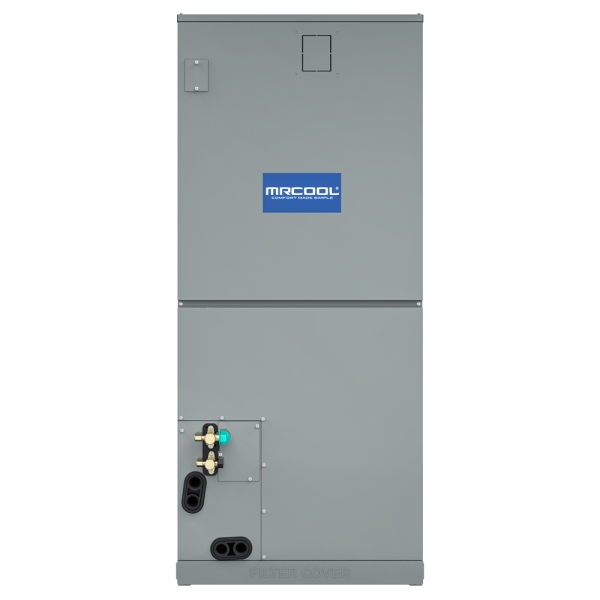

4 Ton MrCool Hyper Heat Central Ducted Air Handler - Multiposition
MRCOOL
Accessories
Description / Documents
Attaining the perfect level of comfort in your home enhances daily productivity and ensures a restful night's sleep. The 4 Ton MrCool Hyper Heat Central Ducted Air Handler presents a budget-friendly and exceptional method for establishing a cozy atmosphere while retaining superior efficiency and performance. With a remarkable SEER2 up to 15.6 and an HSPF2-4 rating up to 9.4, this air handler can preserve a pleasant indoor climate even as outdoor temperatures drop to -22 degrees F or rise to 122 degrees F. This advanced and economical air handler is an ideal upgrade choice to replace outdated, less efficient units.
Made from top-notch painted galvanized steel, the 4 Ton MrCool Hyper Heat Central Ducted Air Handler features a sturdy construction and an elegant finish. This ensures its long-lasting heating and cooling capabilities, while generating noise levels no greater than average room sounds. The unit's compact, space-saving design and slide-out blower make maintenance a breeze. With removable filters, the air handler promotes a clean and healthy atmosphere for your household. Its self-diagnostic panel assists in pinpointing any error codes, which can also be found on the included wired thermostat, ultimately saving you time and maintenance expenses.
The 4 Ton MrCool Hyper Heat Central Ducted Air Handler has been engineered for seamless installation by HVAC specialists, thanks to its compatibility with the optional MrCool No-Vac Quick Connect Line Set. With Quick Connect fittings, the handler and condenser can be effortlessly joined together, saving valuable time and resources. The line set, which is kink-resistant and precharged with environmentally friendly R410-A refrigerant, does away with traditional vacuuming or flare welding requirements. This air handler supports a range of installation orientations, such as upflow, downflow, horizontal left, and horizontal right, allowing it to easily integrate with existing ductwork. If needed, a separate heat kit is also available for purchase.
The air handler comes with a wireless remote that features the unique Follow Me capability. This function allows the unit to track and adjust the temperature while directing airflow towards your current position in the room, guaranteeing comfort wherever you are. Furthermore, a wired thermostat is included with the air handler, providing you with the ability to accurately set your preferred temperature.
The air handler has been granted AHRI certification, which means it has undergone a thorough and unbiased evaluation to confirm that it fulfills all the manufacturer's claims. If any unexpected issues occur, you can find peace of mind knowing that the 4 Ton MrCool Hyper Heat Central Ducted Air Handler includes a comprehensive 10-year warranty for both parts and labor. Furthermore, no registration is required to activate the included labor warranty.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CENTRAL-48-HP-MUAH230A00 |
|---|---|
| UPC | 840255553131 |
| AHRI Number | 210279123 |
| Product Height (in) | 49.02 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.02 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 156.750000 |
| Refrigerant | R-410a |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
