Overview

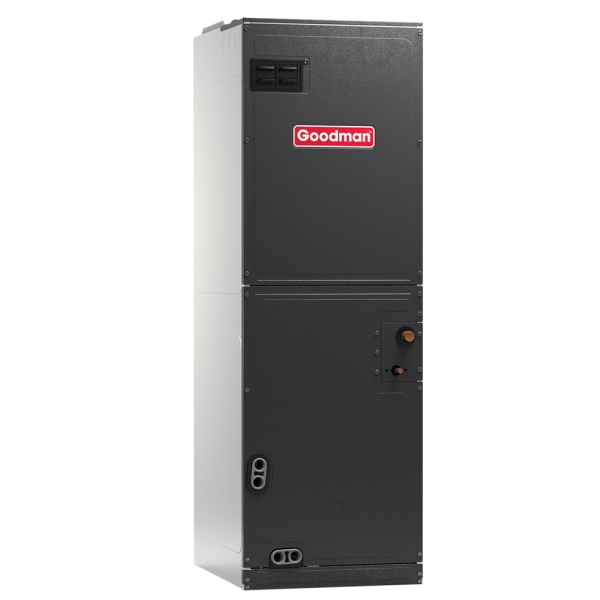

A solid air handling unit is a critical component of split system HVAC operation. When it comes to these systems, the Goodman ARUF49C Air Handler is an excellent choice. These units are multi-speed, multi-position, and R-410A refrigerant compatible air handlers built inside a SmartFrame cabinet. They also include an all-aluminum evaporator coil, direct-drive motor, solid warranty support, and are suitable for multiple installation applications.
Manufacturer Highlights
The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Suitable for use with the refrigerants R-410A and R-22
- All-aluminum evaporator coil
- Check flowrater expansion device for cooling-only and heat pump applications
- Direct-drive, multi-speed motor
- Transformer and blower time-delay on all units
- AHRI Certified; ETL Listed
Cabinet Features
- Rust-resistant, fully insulated steel cabinet
- Galvanized, leather grain-embossed finish
- Attractive Architectural Gray painted front panels
- Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
- Built-in filter rack for 1" filter (filter not included)
- Power supply entry at top; low-voltage entry on left side and top
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
| Model | ARUF49C14 |
|---|---|
| UPC | 663051513372 |
| Air Flow Direction | Horizontal, Vertical |
| Configuration | Floor Mounted |
| Blower Motor | Multi Speed |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 53.438 |
| Product Length (in) | 21 |
| Product Width (in) | 21 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 135.0000 |
| California Residents | see Prop 65 WARNING |
