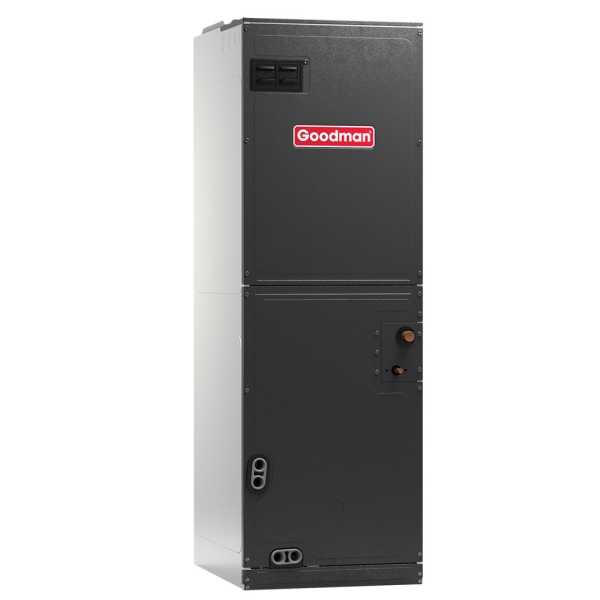

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater

Item: HA10314
Model: ARUF48D14
Condition: New

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater Zoom

Photo Gallery

Need a reliable air handling unit for a Goodman heat pump or air conditioner condenser? Look no further than the Goodman ARUF Series technology like the Goodman ARUF48D SmartFrame Multi-Position Air Handler. This quality Goodman product comes standard with great features like an all-aluminum evaporator coil, flowrater expansion technology for cooling and heat pump applications, UV light compatibility, glue-less cabinet insulation retention, coil-mounting track repositioning, and a whole lot more.

Availability: Out of stock

$799.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Need a reliable air handling unit for a Goodman heat pump or air conditioner condenser? Look no further than the Goodman ARUF Series technology like the Goodman ARUF48D SmartFrame Multi-Position Air Handler. This quality Goodman product comes standard with great features like an all-aluminum evaporator coil, flowrater expansion technology for cooling and heat pump applications, UV light compatibility, glue-less cabinet insulation retention, coil-mounting track repositioning, and a whole lot more.
Goodman HA10314

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model ARUF48D14
UPC 663051494923
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 58
Product Length 21
Product Width 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 147.0000
