This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

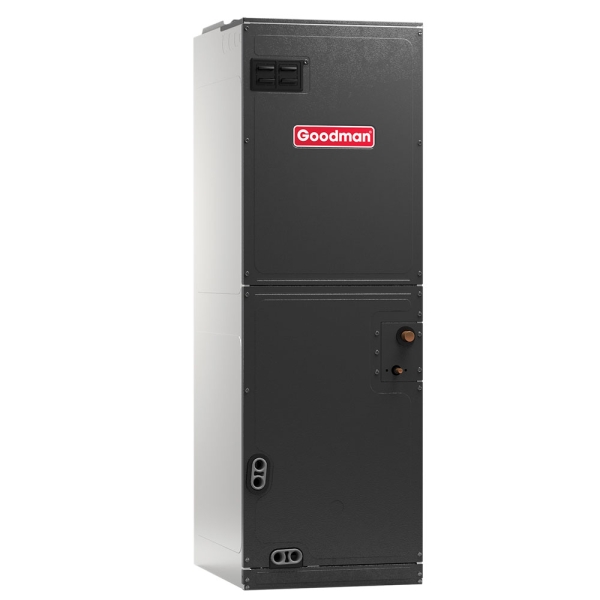

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater

Item: HA10316
Model: ARUF49D14
Condition: New

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater Zoom

Photo Gallery

An air conditioner condenser cannot deliver reliable air comfort without a properly matched air handling unit. The Goodman ARUF49D Multi-Position R410A Multi-Speed Air Handler with SmartFrame is specifically designed to make your heat pump or air conditioner condenser the best it can be. It is sold standard with improved condensate management, a factory-sealed cabinet to achieve a leakage rate below 2%, and a coil-mounting track for quick repositioning as needed.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

An air conditioner condenser cannot deliver reliable air comfort without a properly matched air handling unit. The Goodman ARUF49D Multi-Position R410A Multi-Speed Air Handler with SmartFrame is specifically designed to make your heat pump or air conditioner condenser the best it can be. It is sold standard with improved condensate management, a factory-sealed cabinet to achieve a leakage rate below 2%, and a coil-mounting track for quick repositioning as needed.
Goodman HA10316

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ARUF49D14
UPC 663051513396
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 53.438
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 145.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

I just had a 4 ton heat pump condenser installed April 9 in the day before Mother’s Day the handler went, Will this unit match up to a Johnson Controls unit (YORK)? It is up in the loft in the garage laying down with the drip pan underneath it !
