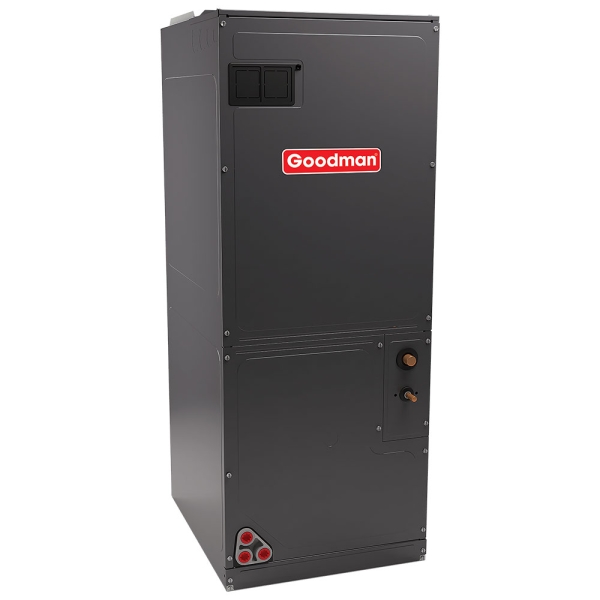

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet

Item: HA10299
Model: ARPT48D14
Condition: New

4 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet Zoom

Photo Gallery

Quality air handling technology can ensure your home air comfort is both energy efficient and effective. The Goodman ARPT48 4.0 Ton Multi-Position Multi-Speed Smart Frame Air Handler may be exactly the kind of quality unit you've been searching for. This system features an all-aluminum evaporator coil, direct-drive motor, factory-installed TXV valve, coil-mounting track for quick repositioning, improved condensate management, and much, much more.

Availability: In stock

$953.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...

Overview

Product Features

Quality air handling technology can ensure your home air comfort is both energy efficient and effective. The Goodman ARPT48 4.0 Ton Multi-Position Multi-Speed Smart Frame Air Handler may be exactly the kind of quality unit you've been searching for. This system features an all-aluminum evaporator coil, direct-drive motor, factory-installed TXV valve, coil-mounting track for quick repositioning, improved condensate management, and much, much more.
Goodman HA10299

Manufacturer Highlights

The Goodman® brand ARPT Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed PSC blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW - 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • Rigid SmartFrame™ cabinet
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish Glue-less cabinet insulation retention
  • Tool-less filter access
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model ARPT48D14
UPC 663051494886
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 58
Product Length 21
Product Width 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 157.0000
