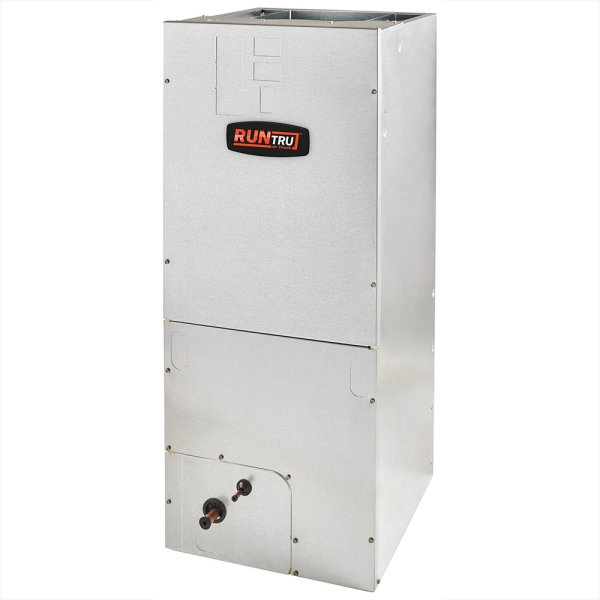

4 Ton Multi Speed Trane RunTru Air Handler - Multiposition - 23.5" Cabinet
RUNTRU

In stock
Ships Within 2-3 Business Days
Accessories
Description / Documents
Frustrated with inconsistent heating and cooling that forces your home to stay uncomfortable during seasonal changes? With new refrigerant regulations flooding the market with a wide range of options that make selecting the right system feel overwhelming, the 3 to 4 Ton Trane RunTru Air Handler - Multiposition - 23.5" Cabinet simplifies the decision by providing exactly what your home requires. Subjected to rigorous third-party inspections, this Trane RunTru Air Handler boasts both UL listing and AHRI certification when used with a range of split systems. Engineered to manage airflow in spaces ranging from 1500 to 2400 square feet, this 3 to 4 Ton Trane RunTru Handler gives you reliable comfort in every inch of your home.
Designed with a range of premium features that optimize performance, the 3 to 4 Ton Trane RunTru Air Handler - Multiposition - 23.5" Cabinet is built to deliver lasting improvements to your home’s comfort. Equipped with a thermal expansion valve, or TXV, this Trane Air Handler has the capacity to provide improved energy efficiency, reduced electricity consumption, and safety for the compressor, protecting it from slugging to promote reliable performance over the years. Equipped with a centrifugal fan, you’ll even enjoy enhanced durability, minimized maintenance, and additional focus placed on maximizing energy savings. Offering exceptional versatility, this Multiposition Trane RunTru Handler is compatible with upflow, downflow, and horizontal left or right orientations, making this the perfect choice for most home layouts.
Elevating your home’s climate control to even greater heights, the 3 to 4 Ton Trane RunTru Air Handler - Multiposition - 23.5" Cabinet is a key component in creating a high-efficiency HVAC system. Running on R454B refrigerant, this Trane RunTru Handler is remarkably eco-friendly, boasting zero ozone depletion potential and a significantly reduced global warming potential to minimize your home’s ecological footprint with every cycle. Enclosed in a painted metal cabinet and insulated with captured foil face insulation, this Trane Air Handler maintains an R-4.2 insulating value while ensuring cabinet air leakage is kept at or below 2%. Featuring an electronically commutated motor (ECM), low voltage pigtail connections, and a horizontal drain pan, the draw through design of this Trane RunTru Air Handler delivers outstanding efficiency and consistency in every season.
With so many groundbreaking benefits at your disposal, combined with a warranty that covers five years by default with the option to extend it even further, why wait any longer to pull the trigger on an upgrade? Secure this 3 to 4 Ton Multiposition Trane RunTru Air Handler in a 23.5" Cabinet today and turn your home into the serene oasis you’ve always desired.
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5AHC005A1D30A |
|---|---|
| UPC | 612461303882 |
| Product Height (in) | 51.45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.15 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 3 Ton, 3.5 Ton, 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 138.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Evaporator Coil |
