40k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 14" Cabinet

Item: HA10592
Model: GDH80403AN
Condition: New

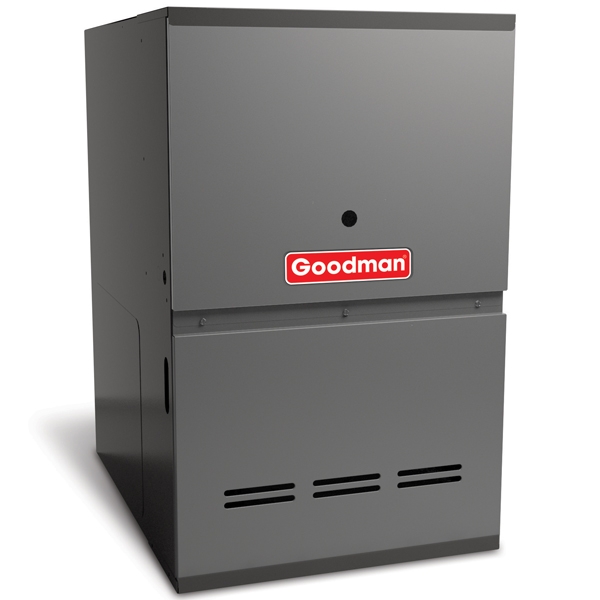

40k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 14" Cabinet Zoom

Photo Gallery

Hypothermia is bad. Avoid it with a Goodman GDH8 Series Two-Stage Gas Furnace! Built for multi-stage operation and designed for installation flexibility, the GDH8 Series features a dual-diameter, tubular heat exchanger made of heavy-day aluminized-steel and a single speed draft inducer optimized for quiet running. You'll even avoid a financial chill thanks to the Lifetime Heat Exchanger Limited Warranty, a 10-Year Parts Limited Warranty, and a 10-Year Unit Replacement Limited Warranty.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Hypothermia is bad. Avoid it with a Goodman GDH8 Series Two-Stage Gas Furnace! Built for multi-stage operation and designed for installation flexibility, the GDH8 Series features a dual-diameter, tubular heat exchanger made of heavy-day aluminized-steel and a single speed draft inducer optimized for quiet running. You'll even avoid a financial chill thanks to the Lifetime Heat Exchanger Limited Warranty, a 10-Year Parts Limited Warranty, and a 10-Year Unit Replacement Limited Warranty.

Don’t leave your comfort up to chance. Choose a gas furnace from Goodman and ensure you have a unit made to last you for decades while keeping your heating and cooling costs affordable. The 40k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 14" Cabinet is known for running with little noise so you can continue your daily schedule without a disturbance. The blower, motor and igniter were designed with your comfort in mind and largely contribute to this unit’s very quiet sound level. It employs a dual-diameter tubular heat exchanger design made to last.

The steel shell of this unit is contracted to withstand any damage or wear so that your unit stays safe, inside and out. The cabinet contains insulation that works hard to maximize the airflow into your home, so that you experience as little waste as possible with this mid-efficiency unit.

At 80% AFUE, this unit will directly heat your home with 80 cents of every $1 you spend on your monthly bills. This qualified ranking will keep your heating and cooling affordable, and save you upfront thanks to a reasonable purchase price. Goodman also sends you home with a dependable limited parts warranty, so you are covered in the unlikely event something goes wrong.

Goodman HA10592

Manufacturer Highlights

The Goodman® brand GDH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve Dual$aver™ technology that allows the installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Quiet four-speed direct-drive circulating blower motor
  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts furnace to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Certain models available with low NOx emissions

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger compartment
  • Factory-sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: Dedicated Downflow
  • Removable bottom for side or bottom return applications
  • Convenient left or right connection for gas/electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GDH80403AN
UPC 663051536180
AHRI Number 5012568
Gas Furnace Efficiency 80%
Air Flow Direction Downflow
Configuration Floor Mounted
Avg Coverage Area 750 - 900 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 14
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 88.0000
