This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

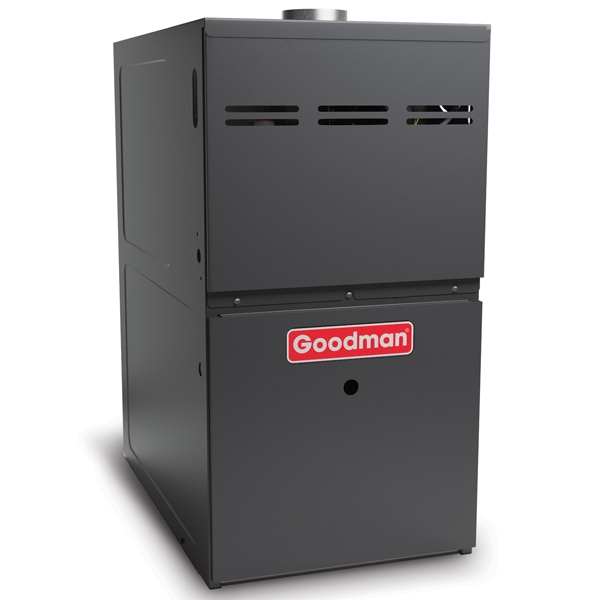

40k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet

Item: HA10650
Model: GMS80403AN
Condition: New

40k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet Zoom

Photo Gallery

Do you need an upflow gas furnace to keep your home warm during the cold winter months? Consider the Goodman GMS8 Multi-Speed 40k BTU 80% AFUE Gas Furnace. This unit comes standard with outstanding warranty protection and a price few competitors can match. It features great components like a durable hot surface mini-igniter, aluminized-steel heat exchanger, four-speed circulator motor, and electronic control board with self-diagnostics.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Do you need an upflow gas furnace to keep your home warm during the cold winter months? Consider the Goodman GMS8 Multi-Speed 40k BTU 80% AFUE Gas Furnace. This unit comes standard with outstanding warranty protection and a price few competitors can match. It features great components like a durable hot surface mini-igniter, aluminized-steel heat exchanger, four-speed circulator motor, and electronic control board with self-diagnostics.

Need to heat your cabin so it can be used all year long? If you have access to propane or natural gas, the Goodman GMS80 furnace is right for you. The 14” wide cabinet makes it small enough that you can have it installed in a closet. This unit has been factory assembled and run tested for natural gas, but if you'd like to use it with propane it can be adapted with a conversion kit.

Not only will your cabin get the heat you want, but you this furnace can be customized to improve overall air quality. You can add a UV light, integrate the furnace with a split system a/c unit, or air humidifier get the most out of your experience.

The 40k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet is assembled in the United States. Backed by a great parts warranty, you can have confidence in your purchase knowing that you will be covered if a problem ever arises. Built with heavy gauge steel the cabinet was built to last. That's what you would expect with a name like Goodman.

Goodman HA10650

Manufacturer Highlights

The Goodman® brand GMS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and lowvoltage terminal block
  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Foil-faced insulation lines the heat exchanger compartment
  • Factory sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: upflow, horizontal left or right
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMS80403AN
UPC 663051536326
AHRI Number 201702247
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 750 - 900 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 14
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 120.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
How soon can I get this furnace and can I make this a cold air return from bottom?
I would like 54" tall, 15" wide, 28" deep 80% up flow side cold air return, vents through top furnace. What do you have close?
Does this unit come with the coil in it to hook up an ac unit?
how much foe a l p conversion kit?
looking fro 60k high flue effmrating.
How much clearance is required on the back and sides of unit? Can it be mounted within 1” Inch of walls?
I have a cabin with ( No Electric Power) I would like to hear my cellar it's dimensions are 18'x30' what do you suggest?
what is the difference between a up flow or down flow
