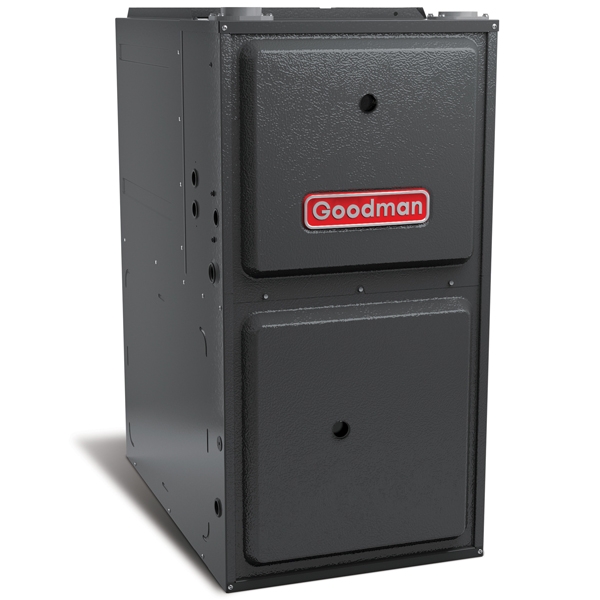

Are you shivering due to an inferior gas furnace? Cut your losses by investing in Goodman's GMSS92 40k BTU 92% AFUE 800CFM Gas Furnace with a 17.5"
Manufacturer Highlights
The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Multi-speed blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board
- Color-coded low-voltage terminals
- All models comply with California Low Nox emissions standards
Cabinet Features
- Designed for multi-position installation
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) - 2%
- Heavy-gauge steel cabinet with durable finish
- Foil-faced insulated heat exchanger cabinet
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Specifications
Product Specifications
| Model | GMSS920402BN |
|---|---|
| UPC | 663051496422 |
| AHRI Number | 7367470 |
| Gas Furnace Efficiency | 92-94% |
| Air Flow Direction | Horizontal, Upflow |
| Configuration | Floor Mounted |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 2 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Product Height | 34.5 |
| Product Length | 28.75 |
| Product Width | 17.5 |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
| Weight | 109.0000 |
