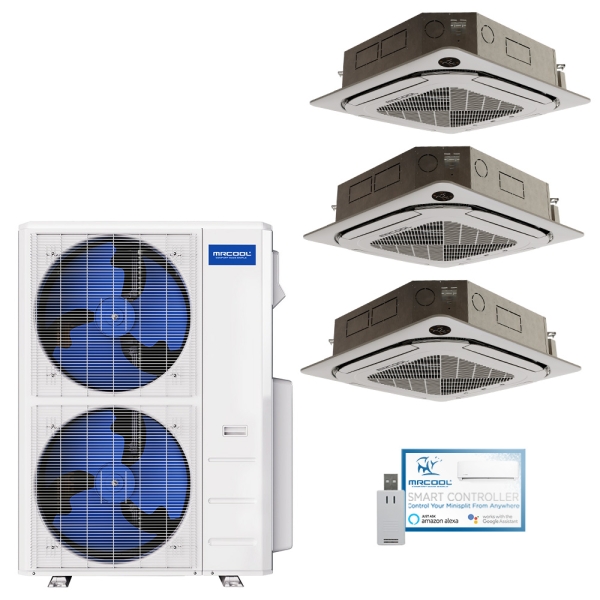

42k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 18k - R454B
MRCOOL

Accessories
Description / Documents
Offering respite from sweltering summers or frigid winters is why you have an HVAC setup, but what’s the plan when your central hardware can’t keep up with extreme temperatures in a few rooms? With the integration of a 42k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 18k - R454B, you’ll be able to enjoy top-tier comfort any time of the year. Supported by AHRI and Energy Star certifications, on top of ETL listing, the MrCool Olympus Ductless Heat Pump validates each efficiency, functional, and safety claim by passing intensive inspections from third-party agencies. Guarantee your ideal indoor ambiance all year long in any room with the addition of a 42k BTU MrCool Split System.
Packed to the brim with powerful hardware, the condenser in the 42k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 18k - R454B is built to support up to three unique zones with ease. Thanks to inverter technology, your indoor temperatures won’t drift far enough from your set-point to run up the electric bill or leave your space uncomfortable. Using R454B refrigerant, the MrCool Condenser boasts zero ozone depletion potential and a reduced global warming potential compared to older models. When you live in an area that hits temperatures below freezing in winter, the MrCool Olympus Heat Pump can heat and cool your home all year-round without issue.
Making each inhale feel fresh and crisp, the three air handlers in the 42k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 18k - R454B remove allergens to ensure fresh air in any zone where they’re installed. The slim design of the MrCool Air Handlers lay flush against your ceiling, avoiding disruption of your carefully curated aesthetic. Both the 12k and 18k BTU MrCool Ceiling Cassettes offer quiet function, maximizing your ambiance from every angle. With options like the included remote and smartphone app letting you monitor and adjust your settings with convenience, it’s easy to see why the MrCool Olympus Split System is the right tool for the task.
Between the performance you want and the peace of mind from a warranty that covers 7 years on the compressor, 5 years on parts, and includes the ability to enroll in the MrCool Care Program for a limited lifetime compressor warranty extension, there’s no reason to hesitate. Opt for a 42k BTU 3 Zone MrCool Olympus Ductless Heat Pump Split System with one 18k BTU and two 12k BTU Ceiling Cassette Air Handlers equipped with R454B refrigerant today and ensure your loved ones can enjoy the exact temperatures they want in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M348HP23CC01C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE18HP-230C-P-O Specifications:
| Model | CASSETTE18HP-230C-P-O |
|---|---|
| UPC | 840255588003 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
