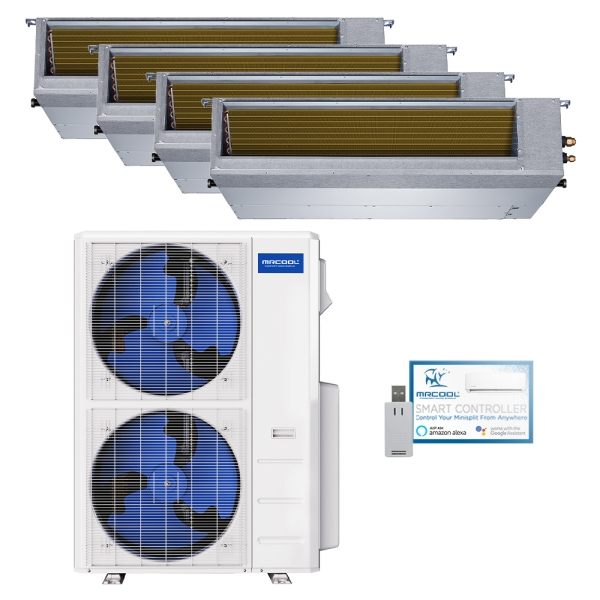

42k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 12k - R454B
MRCOOL

Accessories
Description / Documents
From homes and small commercial properties with central systems that struggle in some seasons to areas that simply benefit from customizable temperatures, you don’t have to settle for discomfort. Make a change for the better with the 42k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 12k - R454B and enjoy the year-round comfort you’ve been seeking. Supported by ETL listing, on top of Energy Star and AHRI certifications, the MrCool Olympus Heat Pump validates every efficiency, performance, and safety claim by passing thorough examinations from independent agencies. Build a customized indoor climate that can cater to your whims with the addition of a 42k BTU MrCool Split System.
Providing next level performance, the condenser in the 42k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 12k - R454B has the strength to support multiple indoor units with ease. Inverter technology grants the MrCool Condenser the means to trap temperatures closer to your set-point throughout the day, optimizing efficiency and comfort in one fell swoop. Sustainable R454B refrigerant lets the MrCool Heat Pump keep an ozone depletion potential of zero and a decreased global warming potential compared to HVAC hardware using previous refrigerant standards. For a solution that can cool you down in triple digit heat or warm you up when temperatures plummet below freezing, the MrCool Olympus Split System is the tool for the task.
Ready and willing to supply personalized temperatures, the four ceiling recessed air handlers in the 42k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 12k - R454B tailor your results in each zone in any conditions. The flush installation of the 9k and 12k BTU MrCool Ceiling Recessed Air Handlers ensures the customized ambiance you want without ruining your carefully curated aesthetic. Whether you use the included remote or a wall-mounted controller, the MrCool Olympus Split System makes it easy to stay comfortable all year long.
Since you can have powerful performance that’s backed by warranty coverage that includes 7 years on the compressor, 5 years on parts, and extends the option to enroll in the MrCool Care Program to extend compressor coverage to a limited lifetime, there’s no reason to hesitate. Acquire a 42k BTU 4 Zone MrCool Olympus In-Duct Heat Pump Split System with two 9k BTU and two 12k BTU Ceiling Recessed Air Handlers running on R454B refrigerant today and guarantee the exact temperatures you crave in each individual zone, regardless of the season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M448HP23RD03C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
