In stock

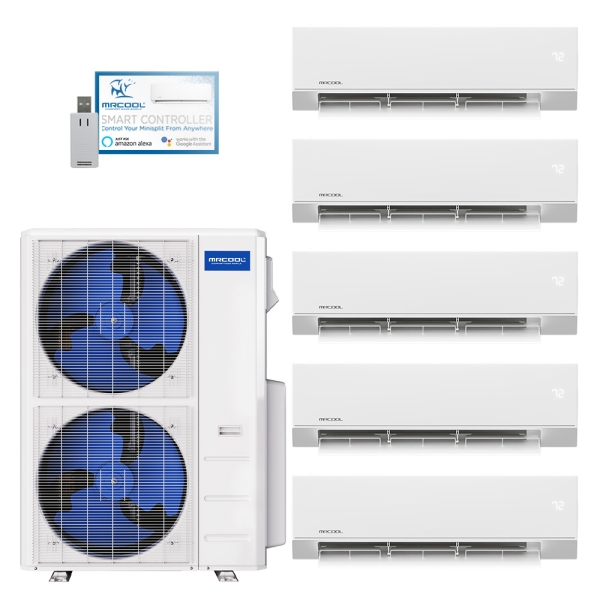

45k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B
Shop All MRCOOL

Accessories
Description / Documents
Whether your home has a central HVAC system that leaves multiple rooms uncomfortable in extreme temperatures, or your home can’t support ductwork at all, ductless HVAC systems are a great way to provide tailored temperatures in different zones of your home. With a 45k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B, you can stay comfortable throughout the year. Supported by AHRI and Energy Star certifications, as well as ETL listing, the MrCool Olympus Ductless Heat Pump highlights every safety, functional, and efficiency claim by passing thorough testing from third-party agencies. Make the most of your space in any weather with the addition of a 45k BTU MrCool Split System.
Built to handle the needs of many different rooms simultaneously, the condenser in the 45k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B uses intelligent features to make a lasting impact on your quality of life. Inverter technology stops temperatures from drifting away from your set-point, conserving energy while optimizing comfort. By choosing R454B refrigerant, the MrCool Condenser keeps an ozone depletion potential of zero and a global warming potential that’s smaller than older HVAC equipment. For any region where winter conditions drop below freezing, the MrCool Olympus Split System has the power to provide toasty temperatures that won’t leave you shivering.
Providing customized results in each unique zone, the five air handlers in the 45k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B guarantee comfort that meets your expectations. The use of washable filters saves you money on five monthly replacement filters, allowing you to simply wipe down each unit’s filter to maintain crisp, clean airflow over time. All five 9k BTU MrCool Air Handlers produce quiet results, optimizing your comfort beyond mere temperature regulation. Thanks to the included remote and smartphone app compatibility that give you access to your settings from anywhere, the MrCool Olympus Split System ensures your ideal indoor ambiance in any season.
Between the performance you’ve been dreaming of, a warranty that covers 7 years on the compressor and 5 years on parts by default, and the ability to extend compressor coverage to a limited lifetime by enrolling in the MrCool Care Program, there’s no reason to delay your upgrade another moment. Bring home a 45k BTU 5 Zone MrCool Olympus Ductless Heat Pump Split System with five 9k BTU Air Handlers equipped with R454B refrigerant today and give your loved ones the year-round temperatures they crave.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M548HP23WM00C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
