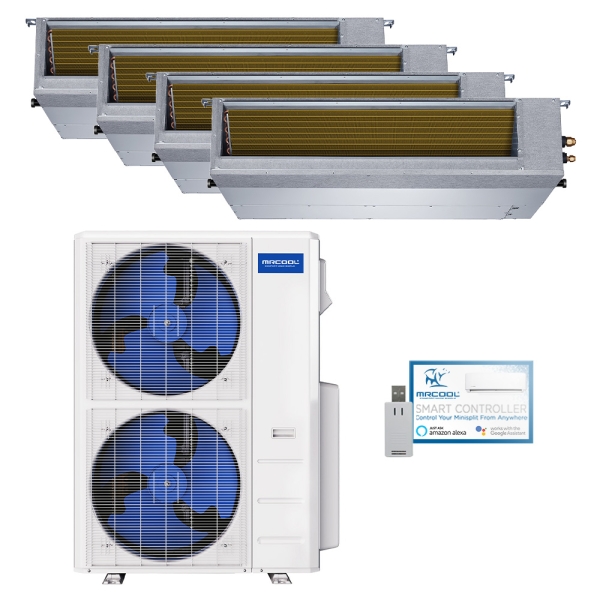

45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 18k - R454B
MRCOOL

Accessories
Description / Documents
There’s any number of reasons why your HVAC setup could be struggling to keep each room comfortable throughout the year. Whether some rooms have structural considerations to account for, or if some multiple people have opposing climate control preferences, the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 18k - R454B is the perfect solution. Backed by ETL listing, along with Energy Star and AHRI certifications, the MrCool Olympus Heat Pump proves every efficiency, functional, and safety claim by passing intensive evaluations from third-party agencies. Make the most of each individual room or zone of your home or light commercial space with the integration of a 45k BTU MrCool Split System.
Built using intelligently chosen hardware, the condenser in the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 18k - R454B handles the unique demands of your space with grace. By using inverter technology, the MrCool Condenser locks temperatures closer to your set-point to maximize both comfort and efficiency. With the use of R454B refrigerant, the MrCool Heat Pump sports zero ozone depletion potential and a lower global warming potential than older refrigerant hardware. Keeping indoor conditions stable in frigid, below freezing temperatures and sweltering, triple digit heat, the MrCool Olympus Split System goes above and beyond to ensure the exact ambiance you crave in any season.
Packed with powerful climate control capabilities, the four ceiling recessed air handlers in the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 18k - R454B guarantee the results you want from every angle. Boasting an installation that doesn’t require wall space or ruin the vibe, the 9k and 18k BTU MrCool Ceiling Recessed Air Handlers prioritize both ambiance and aesthetic. Between the included remote control and wall-mounted controller compatibility, the MrCool Olympus Split System has the flexibility and consistency to ensure your preferred temperatures all year long.
Giving you the year-round performance you crave, then adding on the peace of mind that comes from the warranty coverage that encompasses 7 years on the compressor, 5 years on parts, and the option to extend compressor coverage to a limited lifetime with enrollment in the MrCool Care Program, what do you gain by waiting? Choose a 45k BTU 4 Zone MrCool Olympus In-Duct Heat Pump Split System with one 18k BTU and three 9k BTU Ceiling Recessed Air Handlers making use of R454B refrigerant today and give your home or small business the top-tier temperature regulation results you deserve.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M448HP23RD02C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-18HP-230B-O Specifications:
| Model | DUCT-18HP-230B-O |
|---|---|
| UPC | 840255587686 |
| Product Height (in) | 8.3 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 26.5 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 34.7 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 54.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
