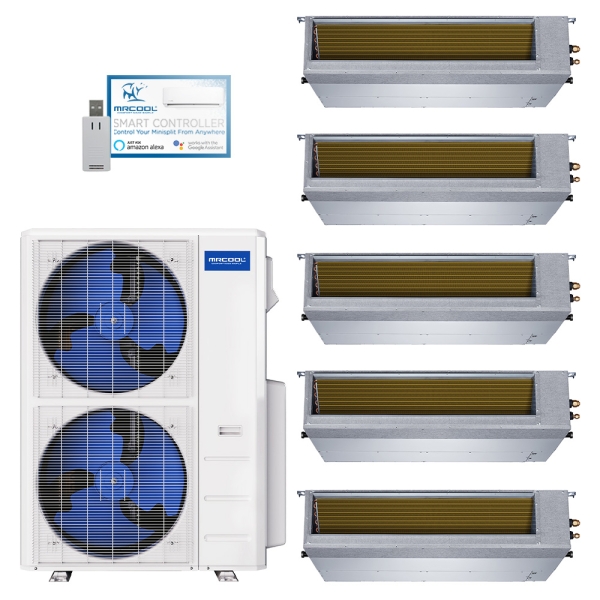

45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B
MRCOOL

Accessories
Description / Documents
Tired of tolerating inadequate climate control results that leave some rooms in your home or small commercial space suffering in extreme temperatures? For a solution that supplies fully custom temperatures in multiple rooms simultaneously, the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B is the right tool for the task. Earning ETL listing, plus Energy Star and AHRI certifications, the MrCool Olympus Heat Pump validates every efficiency, operational, and safety claim by passing strict evaluations from third-party agencies. Make the most of your indoor living space regardless of the season with the integration of a 45k BTU MrCool Split System.
Meeting your indoor temperature needs where they are, the condenser in the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B produces results that won’t fall flat in any zone. Inverter technology gives the MrCool Condenser the ability to keep you comfortable efficiently by keeping the temperature from drifting too far from your set-point. Environmentally conscious R454B refrigerant boasts zero ozone depletion potential and a lower global warming potential than older HVAC hardware. Ensure the cozy conditions you crave in below freezing winters and the cool respite you require in sultry triple digit heat with the MrCool Olympus Split System.
Producing tailored temperatures in each zone, the five ceiling recessed air handlers in the 45k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 9k - R454B make it easy to stay comfortable in any conditions. With all of the 9k BTU MrCool Ceiling Recessed Air Handlers boasting a flush fit installation, you won’t have to compromise your aesthetic by optimizing ambiance. Coming with a remote control, and boasting compatibility with a wall-mounted controller, the MrCool Olympus Split System puts the tools to optimize your indoor space well within your reach.
Giving you the top-tier temperature regulation you need, then adding on the support of warranty coverage that includes 7 years on the compressor, 5 years on parts, and the option to enroll in the MrCool Care Program to extend warranty coverage to a limited lifetime, it’s easy to see the best path forward. Decide on a 45k BTU 5 Zone MrCool Olympus In-Duct Heat Pump Split System with five 9k BTU Ceiling Recessed Air Handlers utilizing R454B refrigerant today and guarantee the exact indoor conditions you want in your home or small business in every season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M548HP23RD00C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
