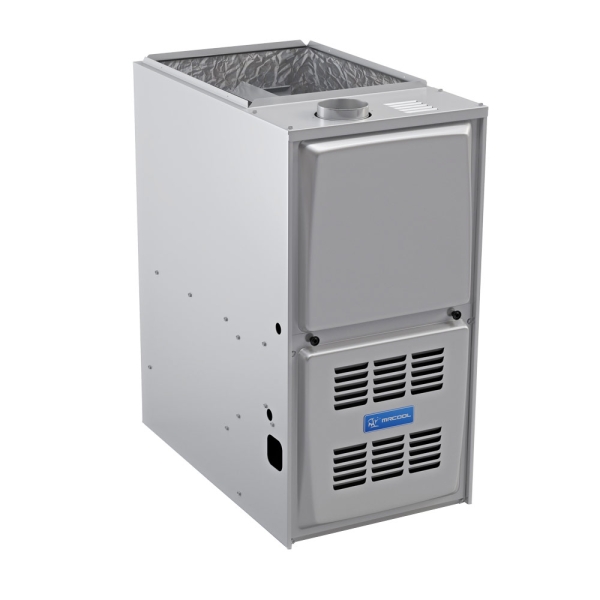

45k BTU 80% AFUE MrCool Signature Gas Furnace - Downflow - 14.5" Cabinet
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Choose a gas furnace that is easy on your wallet! The 45k BTU 80% AFUE Variable Speed MrCool Gas Furnace has mid-efficiency capabilities with a 14.5 cabinet that can fit in small and compact spaces.
This furnace works to keep your home warm in the cold months without breaking the bank. It flows air in a downflow direction and will need to be positioned in your home's space accordingly. Noise isn't an issue with this furnace from MrCool. It was designed to give you good air quality with minimum sound.
In the case of maintenance or serving, you can easily access the unit from the slide-out blower. Easy for both you and the maintenance guy! It also is installed with self-diagnostic features that monitor the health of your furnace and will help identify problems. Plus, if you lose power and the furnace is forced to shut down, it will remember the last five codes from its internal diagnostics. In other words, you will never have to second guess if your unit is reporting its true performance health. This helps to prevent serious damage. In the case of a more severe issue, this unit is covered by MrCool's limited parts warranty.
The outer shell of the 45k BTU 80% AFUE Variable Speed MrCool Gas Furnace is finished in a modern gray painted and designed to fit nearly any space within your home. Pairing simply the best features for gas furnaces from MrCool, this Gas Furnace makes a great investment for your HVAC system!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MGD80SE045A3A |
|---|---|
| UPC | 810512033676 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 14.5 |
| Air Flow Direction | Downflow |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 112.000000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
