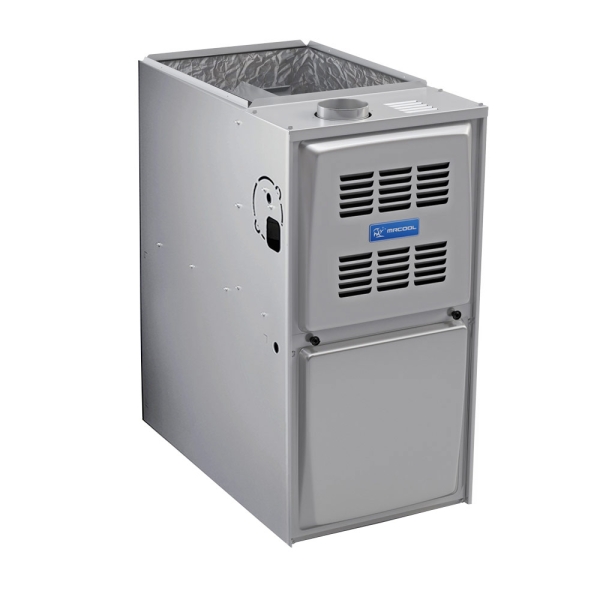

45k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 14.5" Cabinet
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Provided you like staying warm during cold winter weather, the 45k BTU 80% AFUE Variable Speed MrCool Gas Furnace is an ideal tool for home heating. This flexible furnace can deliver the heat you want at an economic price point that won't make you regret investing in such a capable piece of equipment. Basically, it's awesome.
But how does the MGM80S045A3A deliver effective performance while still maintaining a reasonable price tag? By relying on a time-tested assembly of capable components and quality parts without unnecessary frills. This furnace features self diagnostics with fault code storage, a Variable Speed PSC blower motor, an easily removable slide-out blower design, single-stage gas valve, and a rotatable draft inducer for venting flexibility.
Fortunately, the 45k BTU 80% AFUE Variable Speed MrCool Gas Furnace is also a versatile product designed to make installation possible in many different locations. It can be deployed in upflow, horizontal, and downflow configurations. It can accommodate left or right utility connections. It has zero step horizontal conversion, and a removable floor base for bottom return air. It can go virtually wherever needed to deliver quality comfort.
The MGM80S045A3A also come with really high quality and long term warranty protection. It features a standard warranty for parts and a second just to ensure the heat exchanger. Register online within 60 days of installation and you will instantly extend the length of both furnace warranties.
Powerful heating, quality components, versatile installation footprint, and great warranty protection are all combined in this furnace. Call us to get one of these high performers shipped to you today!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MGM80SE045A3A |
|---|---|
| UPC | 810512033614 |
| AHRI Number | 204085897 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 14.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 110.000000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
