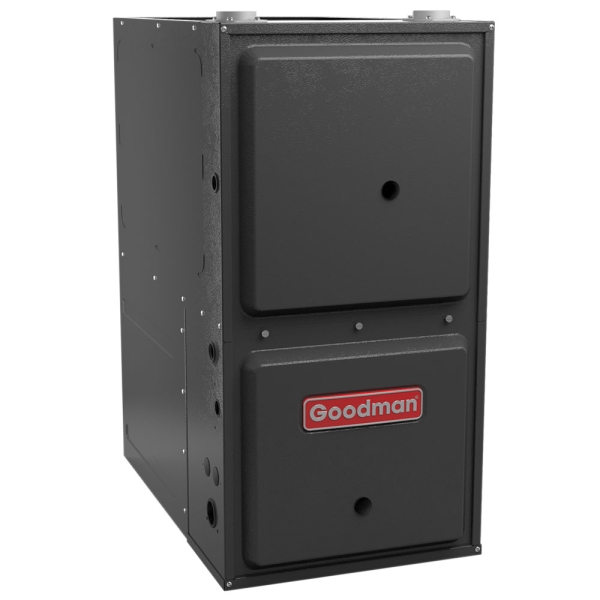

45k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 17.5" Cabinet

Item: HA10566
Model: GCH950453BX
Condition: New

45k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

Related Videos

A powerful furnace that complies with California's low NOx emissions standards can be tough to find. Fortunately, homeowners can rely on the Goodman GCH95 95% AFUE Two-Stage Gas Furnace to perform beyond expectations. This quality heating system is built with superior components like a dual-diameter tubular heat exchanger, dual-stage gas valve, silicon nitride igniter, self-diagnostics, and a fully insulated, heavy-gauge steel cabinet with an attractive baked-enamel finish.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Overview

Product Features

A powerful furnace that complies with California's low NOx emissions standards can be tough to find. Fortunately, homeowners can rely on the Goodman GCH95 95% AFUE Two-Stage Gas Furnace to perform beyond expectations. This quality heating system is built with superior components like a dual-diameter tubular heat exchanger, dual-stage gas valve, silicon nitride igniter, self-diagnostics, and a fully insulated, heavy-gauge steel cabinet with an attractive baked-enamel finish.

Are you looking for a high quality gas furnace to heat your home? The Goodman GCH95 is the product that you’ve been looking for! Featuring a patented aluminized-steel tubular heat exchanger and ultra strong Silicon Nitride Hot Surface Ignition system, this furnace is ready to run on natural gas right out of the box! Does your home run on propane? No problem! This furnace can easily convert to propane with an optional conversion kit.

This system is full of revolutionary features designed to maximize product life and to make this furnace function specifically for your needs. Equipped with a Silicon Nitride igniter that lasts twice as long as standard igniters, you can relax knowing that your Goodman furnace will continue working for you for years to come. The system control board stores its diagnostic code history, and with a simple push button generates the fault codes to a flashing red LED. This feature makes HVAC repair a breeze!

For simplicity of use and energy saving value, the GCH95 is an ideal furnace. Its 4-speed, direct-drive blower motor turns the fan with motor operation instead of a belt, meaning less maintenance and fewer repair costs down the road! Additionally, a quiet low fan mode allows air to continue circulating throughout your home, even during the system’s off cycle. Homeowners can enjoy fresh air and a quiet heating system all winter long!

This furnace features an automatic detection, two-stage furnace gas valve allowing for both a high and low setting, depending on your thermostat setting. This translates to greater heating efficiency for moderate and extreme cold, meaning greater cost savings for you.

And with this the 95% AFUE rating, homeowners can rest easy knowing that very little gas is lost in the heating process!

Goodman HA10566

Manufacturer Highlights

The Goodman® brand GCH Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve with Dual$aver™ technology that allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Furnace control board with self-diagnostics, color-coded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high or low stage based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Easy-to-install top venting is standard; alternate flue/vent located on the right (GMH95)
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation -- upflow, horizontal left or right;
  • Airtight solid bottom for side-return applications and easy cut tabs for effortless removal in bottom air inlet applications
  • Convenient left/right connection for gas/electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GCH950453BX
UPC 663051484566
Gas Furnace Efficiency 95%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 750 - 900 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 40,001 - 45,000 BTU
Product Height 40
Product Length 28.75
Product Width 17.5
System Application Type Central Split Systems
Vent Connection 2 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 120.0000
