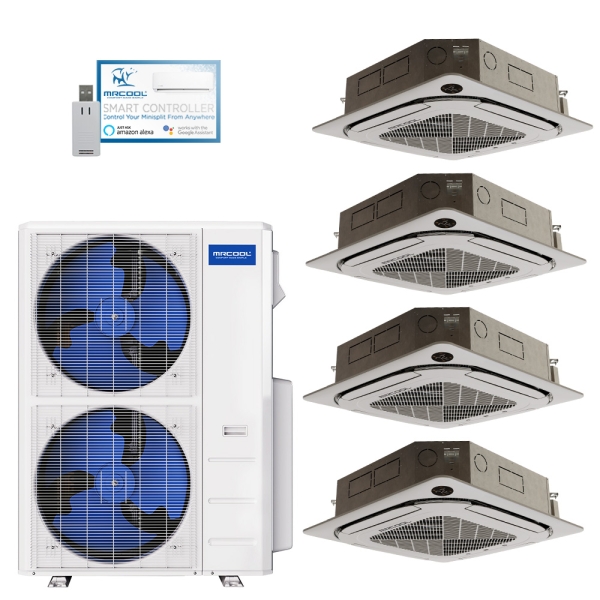

48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k + 12k + 12k + 12k - R454B
MRCOOL

Accessories
Description / Documents
At the end of the day, your home should always be your sanctuary that protects you from outdoor temperatures. When your central HVAC setup struggles to keep a handful of rooms comfortable, or your home can’t support the ductwork of a standard system, a 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k + 12k + 12k + 12k - R454B can make all the difference. Backed by AHRI and Energy Star certifications, plus ETL listing, the MrCool Olympus Ductless Heat Pump validates every safety, performance, and efficiency claim by passing invasive inspections from independent agencies. Cater your climate control in every season with the addition of a 48k BTU MrCool Split System.
Designed to support multiple air handlers at one time, the condenser in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k + 12k + 12k + 12k - R454B has the power to craft your ideal temperatures in every zone. Thanks to the use of inverter technology, the MrCool Heat Pump balances efficiency and comfort by keeping temperatures closer to your set-point throughout the day. R454B refrigerant ensures the MrCool Condenser maintains zero ozone depletion potential and a reduced global warming potential compared to HVAC hardware running on older refrigerants. When you and your family want to stay toasty during below freezing temperatures, the MrCool Olympus Split System is the perfect solution to produce the cozy conditions you crave.
Tailoring your climate control results per zone, the four air handlers in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 4 Zone Ceiling Cassette - 12k + 12k + 12k + 12k - R454B makes it easy to stay comfortable. The sleek design of the 12k BTU MrCool Ceiling Cassettes allows them to be easily tucked away for a flush ceiling installation, combining this with quiet operation to optimize your indoor ambiance from every angle. The remote gives you access to your settings from anywhere in the room, while MrCool’s smartphone app extends that ability to anywhere else with cell service, so you can relax knowing the MrCool Olympus Split System puts the power of reliable temperature regulation in the palm of your hand.
If you’re ready to enjoy more than just powerful climate control, the MrCool Olympus Split System provides peace of mind with a warranty that covers 7 years on the compressor, 5 years on parts, and the option to enroll in the MrCool Care Program to extend compressor coverage to a limited lifetime. Dedicate to a 48k BTU 4 Zone MrCool Olympus Ductless Heat Pump Split System with four 12k BTU Ceiling Cassette Air Handlers running on R454B refrigerant today to guarantee the exact indoor ambiance you want throughout your home.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M448HP23CC00C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
