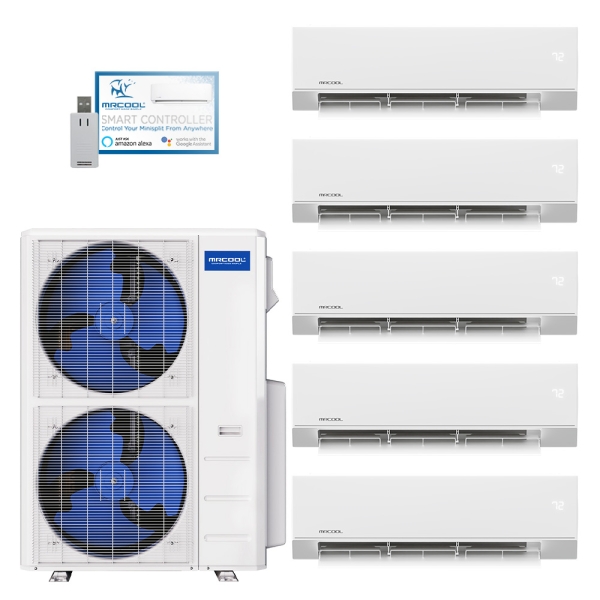

48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 12k + 12k - R454B
Shop All MRCOOL

Accessories
Description / Documents
There’s nothing more frustrating than dealing with inadequate climate control within your home. When the HVAC system in your sanctuary struggles to regulate conditions in multiple rooms or areas, especially during extreme temperatures, the addition of a 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 12k + 12k - R454B can make all the difference. Gaining the support of ETL listing, as well as Energy Star and AHRI certifications, the MrCool Olympus Ductless Heat Pump verifies every safety, performance, and efficiency claim by undergoing intensive inspections from independent agencies. Give your family tailored temperatures in each unique room with a 48k BTU MrCool Split System.
Designed to handle multiple air handlers from a single outdoor unit, the condenser in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 12k + 12k - R454B makes it easy to maintain comfort throughout your home. The integration of inverter technology keeps temperatures closer to your set-point at all times, minimizing energy use without sacrificing comfort. With R454B refrigerant, the system benefits from zero ozone depletion potential and a lower global warming potential to older refrigerant options. Even in areas where outdoor temperatures drop below freezing during winter weather, the MrCool Olympus Split System offers the toasty temperatures you crave without issue.
Built to tailor your climate control with ease, the five air handlers in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 12k + 12k - R454B produce individualized temperatures in each zone. By including washable filters, you’ll save money by eliminating the cost of five regular replacement filters every few weeks. All the 9k and 12k BTU MrCool Air Handlers operate quietly, optimizing your comfort from every angle. Giving you the option to adjust your settings from the remote control or the compatible smartphone app, the MrCool Olympus Split System goes above and beyond for your comfort all year long.
Between the powerful performance you crave and the backing of warranty coverage that offers 7 years on the compressor, 5 years on parts, and the means to extend the coverage on the compressor to a limited lifetime by enrolling in the MrCool Care Program, why would you settle for anything less? Choose a 48k BTU 5 Zone MrCool Olympus Ductless Heat Pump Split System with two 12k BTU and three 9k BTU Air Handlers making use of R454B refrigerant today and give your family the tailored temperatures they deserve.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M548HP23WM02C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-12-HP-WMAH-230C-O Specifications:
| Model | O-12-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587716 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.320000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
O-12-HP-WMAH-230C-O Specifications:
| Model | O-12-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587716 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.320000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
