In stock

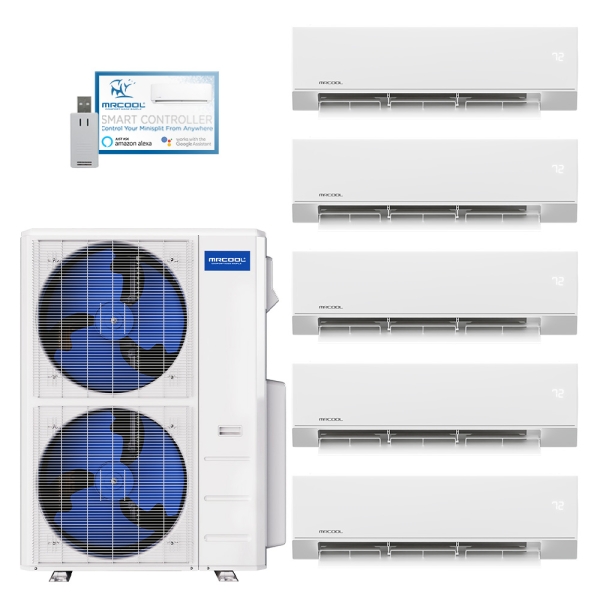

48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B
Shop All MRCOOL

Accessories
Description / Documents
From full home climate control to supplemental support in five unique zones, ductless split systems are a powerfully customizable way to handle temperature regulation. If you’re ready to enjoy the exact temperatures you want in multiple different rooms without each choice affecting the others, a 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B is the perfect solution. Earning ETL listing alongside Energy Star and AHRI certifications, the MrCool Olympus Ductless Heat Pump validates every safety, operational, and efficiency claim by passing exhaustive examinations from independent agencies. Guarantee toasty temperatures in winter and cool conditions through the summer with a 48k BTU MrCool Split System.
Supporting up to five unique indoor units at once, the condenser in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B has the power to handle the heavy lifting of your home’s climate control. Including inverter technology ensures top-tier efficiency, minimizing the amount of energy exerted by maintaining temperatures closer to your set-point throughout the day. The use of R454B refrigerant offers zero ozone depletion potential and a decreased global warming potential from previous refrigerant standards. When you live in a region where winter temperatures plummet below freezing, you can relax knowing the MrCool Olympus Split System can handle whatever Mother Nature throws its way all year long.
Providing individualized results per zone, the five air handlers in the 48k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B are perfect for families with varied home comfort preferences. Washable filters eliminate the cost of five replacements multiple times a year, swapping the time-sink for a simple wipedown. Both the 9k and 12k BTU MrCool Air Handlers maintain quiet operation, ensuring your comfort goes beyond just temperature considerations. With a remote to control the temperature in the room, and the smartphone app to adjust settings from anywhere else, it’s easy to see why the MrCool Olympus Split System is the perfect tool for the task.
With the top-tier temperature regulation you want, the support of a warranty that includes 7 years of coverage on the compressor and 5 years on parts, and the ability to lengthen compressor coverage to a limited lifetime with enrollment in the MrCool Care Program, what more could you be holding out for? Obtain a 48k BTU 5 Zone MrCool Olympus Ductless Heat Pump Split System with one 12k BTU and four 9k BTU Air Handlers utilizing R454B refrigerant today to enjoy total control over your indoor ambiance in every season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M548HP23WM01C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-12-HP-WMAH-230C-O Specifications:
| Model | O-12-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587716 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.320000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
