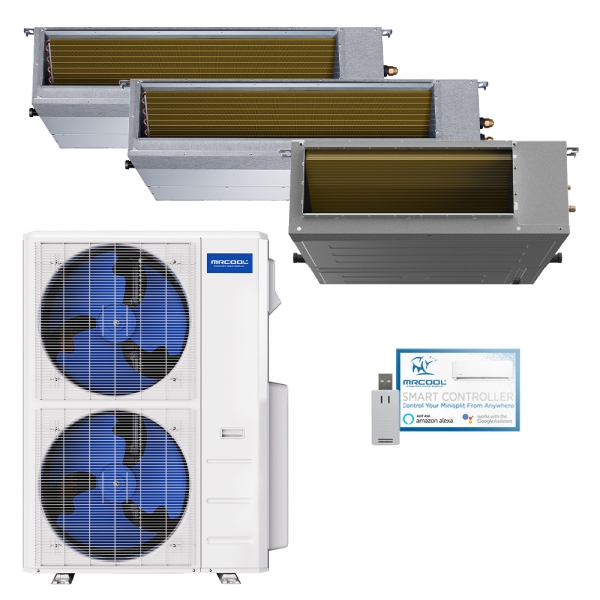

48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 24k - R454B
MRCOOL

Accessories
Description / Documents
Keeping each room of your home or light commercial space comfortable in every season shouldn’t be a struggle for your HVAC system. If you find that your central heating and cooling hardware falls shy in a few areas, or if your space is better suited for individualized results, the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 24k - R454B can make all the difference in the world. Backed by ETL listing, as well as Energy Star and AHRI certifications, the MrCool Olympus Heat Pump verifies every efficiency, functional, and safety claim by passing thorough testing from third-party agencies. Provide the tailored temperatures you’ve been seeking in three unique rooms with the integration of a 48k BTU MrCool Split System.
Supplying the steady results you want in each room, the condenser in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 24k - R454B makes it easy to relax in any season. The use of inverter technology allows the MrCool Condenser to ensure uncompromising comfort, minimizing how far the temperature can wander from your set-point while optimizing efficiency. R454B refrigerant is an intelligent and eco-friendly choice that gives the MrCool Heat Pump zero ozone depletion potential and a decreased global warming potential compared to older refrigerants. Keeping you comfortable in temperatures that dip below freezing or hit the triple digits, you can relax knowing the MrCool Olympus Split System has everything you need and more to maintain your ideal indoor ambiance.
Offering unique temperatures to multiple areas, the three ceiling recessed air handlers in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 24k - R454B won’t leave you wanting for better heating and cooling results. By tucking flush against the ceiling, the 12k and 24k BTU MrCool Ceiling Recessed Air Handlers ensure the comfortable temperatures you want without ruining the look and feel of your space. Giving you access to your settings from the included remote or a wall-mounted controller, it’s easy to see how the MrCool Olympus Split System makes climate control effortless.
With all the climate control power you crave, plus the support of a warranty that includes 7-year coverage on the compressor, 5-year coverage on parts, and the ability to extend compressor coverage to a limited lifetime by enrolling in the MrCool Care Program, why would you settle for anything less? Obtain a 48k BTU 3 Zone MrCool Olympus In-Duct Heat Pump Split System with one 24k BTU and two 12k BTU Ceiling Recessed Air Handlers running on R454B refrigerant today to enjoy the exact conditions you crave in three unique areas of your space.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M348HP23RD10C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-24HP-230B-O Specifications:
| Model | DUCT-24HP-230B-O |
|---|---|
| UPC | 840255587693 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 29.5 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 39.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 80.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
