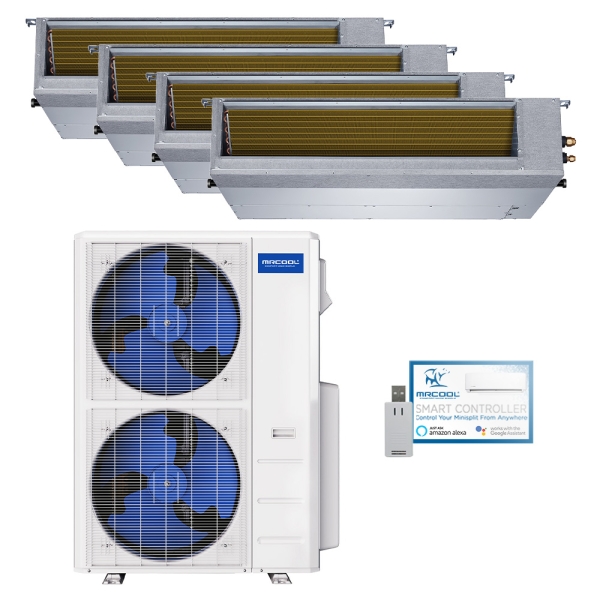

48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 18k - R454B
MRCOOL

Accessories
Description / Documents
Some homes and small commercial properties can enjoy perfect temperature regulation from a single central HVAC system, but what’s the plan for the rest? As long as the space supports central ductwork, the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 18k - R454B offers a comprehensive climate control solution with tailored results per area. Backed by ETL listing, plus Energy Star and AHRI certifications, the MrCool Olympus Heat Pump showcases every efficiency, operational, and safety claim by passing exhaustive inspections from third-party agencies. Ensure the exact indoor conditions you want in any season with the addition of a 48k BTU MrCool Split System.
Making it easy to stay comfortable, the condenser in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 18k - R454B supports all four air handlers simultaneously. Thanks to inverter technology, the MrCool Condenser stops the temperature from fluctuating as far from your set-point to optimize both efficiency and comfort. The use of eco-friendly R454B refrigerant affords the MrCool Heat Pump zero ozone depletion potential and a smaller global warming potential than older refrigerant standards. To stay cozy during below freezing winters and crisp throughout the summertime, the MrCool Olympus Split System is the climate control solution you’ve been searching for.
Producing tailored indoor temperatures in each unique zone, the four ceiling recessed air handlers in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 12k + 18k - R454B meet your ever-shifting preferences with ease. Thanks to a design that lays flush against the ceiling, the 9k, 12k, and 18k BTU MrCool Ceiling Recessed Air Handlers manages to maintain your carefully curated aesthetic while delivering the ambiance you need. From the included remote to the wall-mounted controller compatibility, the MrCool Olympus Split System goes above and beyond to ensure top-tier comfort all year long.
If you’re not sold on just the performance you crave, the support of a warranty that provides 7-year compressor coverage, 5-year parts coverage, and the option to enroll in the MrCool Care Program for an extension on the compressor coverage to a limited lifetime should sweeten the deal more than enough. Grab a 48k BTU 4 Zone MrCool Olympus In-Duct Heat Pump Split System with one 12k BTU, one 18k BTU, and two 9k BTU Ceiling Recessed Air Handlers utilizing R454B refrigerant today and enjoy the tailored indoor temperatures you deserve.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M448HP23RD04C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-18HP-230B-O Specifications:
| Model | DUCT-18HP-230B-O |
|---|---|
| UPC | 840255587686 |
| Product Height (in) | 8.3 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 26.5 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 34.7 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 54.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
