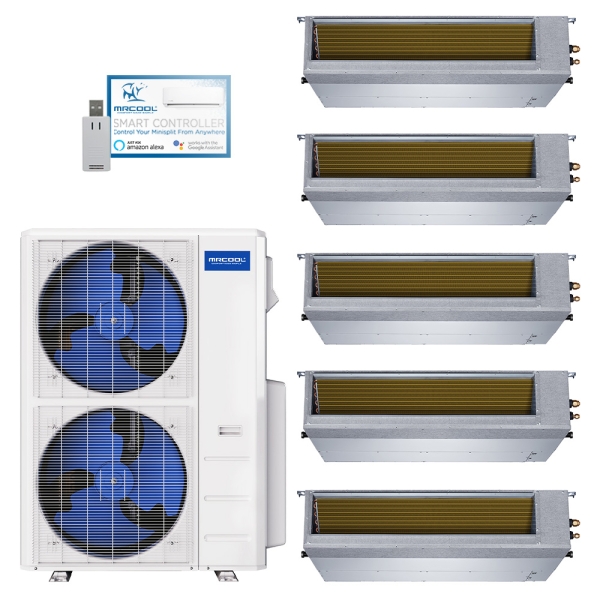

48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B
MRCOOL

Accessories
Description / Documents
Whether your family likes different temperatures in their respective rooms or your light commercial space would benefit from customizable conditions in multiple areas, the solution is simple. Choose the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B and enjoy the exact conditions you want in each unique room without affecting the others. Gaining the support of ETL listing alongside Energy Star and AHRI certifications, the MrCool Olympus Heat Pump proves every efficiency, performance, and safety claim by passing exhaustive testing from independent agencies. Bring in the big guns and enjoy truly customizable temperatures with the integration of a 48k BTU MrCool Split System.
Supporting multiple different indoor climate control needs at once, the condenser in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B perfectly suits the unique needs of your living space. Including energy-efficient inverter technology, the MrCool Condenser maintains conditions closer to your set-point throughout the day for peak comfort. R454B refrigerant is an eco-friendly choice that offers zero ozone depletion potential and a smaller global warming potential than outdated equivalents. From below freezing winters to triple-digit summers, the MrCool Olympus Split System is the perfect solution to guarantee the varied results you want in each individual space.
Operating independently of the other air handlers in the system, the five ceiling recessed air handlers in the 48k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 5 Zone - 9k + 9k + 9k + 9k + 12k - R454B provide personalized results in each individual space with ease. Thanks to the 9k and 12k BTU MrCool Ceiling Recessed Air Handlers all sporting an intelligent construction, the units sit flush within your ceiling to optimize ambiance and aesthetic. With an included remote control and the option to use a wall-mounted controller, the MrCool Olympus Split System won’t leave your space uncomfortable any time of the year.
When you can have the tailored temperatures you want, plus the support of warranty that covers 7 years on the compressor, 5 years on parts, and offers the option to extend compressor coverage to a limited lifetime with enrollment in the MrCool Care Program, what more could you be holding out for? Opt for a 45k BTU 5 Zone MrCool Olympus In-Duct Heat Pump Split System with one 12k BTU and four 9k BTU Ceiling Recessed Air Handlers equipped with R454B refrigerant today and enjoy every inch of your living space, regardless of the season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M548HP23RD01C |
|---|---|
| AHRI Number | 217291701 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI6-48HP230C-O Specifications:
| Model | MULTI6-48HP230C-O |
|---|---|
| UPC | 840255587815 |
| AHRI Number | 217291699 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.3 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
