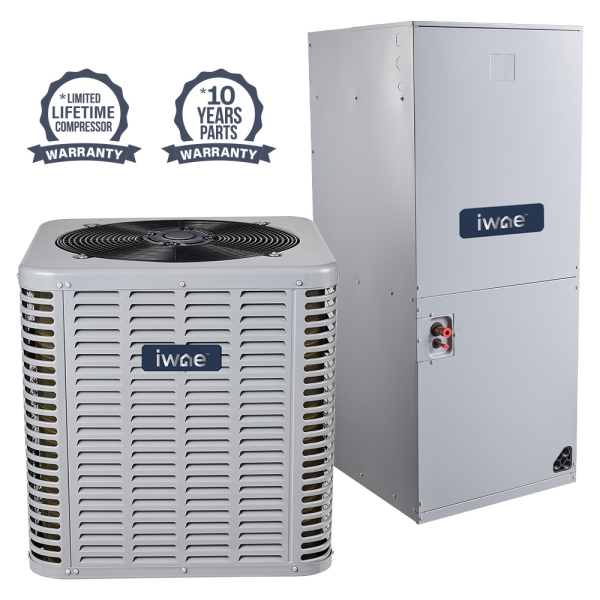

5 Ton 13.7 SEER2 Variable Speed IWAE Central Air Conditioner Split System - Multiposition - R454B
Item
HA27022
Models IWAESAS4T6021AA, IWAEAMPEF60E21AA
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
5 Ton Variable Speed IWAE Central Air Handler - Multiposition - 22" Cabinet - Flowrater - R454BItem: HA26894 Model: IWAEAMPEF60E21AA
Qty: 1
Say hello to
The New Name in Home Comfort
Introducing the IWAE Split System - our brand new, in-house line of heating and cooling systems built to deliver high performance without the high price tag.
Scroll Compressor
Energy-efficient compressor giving energy savings to homeowners.
Defrost Technology
Specialized time-delay defrost technology
Quiet Operation
Acoustically engineered sound control blanket for quiet operation
Baked Enamel Finish
Protects the system from the elements
Condensing Unit: Air Conditioning & Heat Pump Versions
Insulation
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Convertible Return
Factory standard front return that can convert to a bottom return
Stud-mount Air Handler
Variable Speed
Variable speed ECM indoor blower motor
Multi-position Air Handler
Comfort That
Works for Everyone.
Whether you're outfitting your own home or quoting a job, the IWAE Split System delivers where it counts. Homeowners get a budget-friendly system with quiet operation and dependable comfort day after day. Contractors get straightforward installs, low upfront costs, and the kind of margin-friendly pricing that keeps business booming.
 Heat Pump Rating Highlights | Air Conditioner Rating Highlights | |
|---|---|---|
HSPF | 7.5 on all 7 models | N/A |
SEER2 | 14.3 on all 7 models | 14.3 on all 7 models |
EER2 | 11.7 on 5 small models 11.2 on 48k & 60k | 11.7 on 5 small models 11.2 on 48k & 60k |
The Ratings are In
All four systems in the IWAE lineup—heat pump, air conditioner, multi-position air handler, and stud-mount air handler—are AHRI Certified and ETL listed by Intertek. That means they meet rigorous performance standards and safety requirements, so both homeowners and contractors can install with confidence.
Peace of Mind
Comes Standard
Every IWAE system is backed by a 10-Year Limited Parts Warranty and a Limited Lifetime Compressor Warranty—so homeowners can feel confident that their comfort is protected for the long haul. Want even more coverage? Add an Extended Labor Warranty directly through IWAE.com for an extra layer of security. And if you ever need help, our U.S.-based customer service team is just a call or click away.
While enjoying the summer sun can be a pleasant break from winter weather, keeping your indoor environment comfortable in any conditions shouldn’t be a struggle for your HVAC system. When inside feels no better than outdoors, let the 5 Ton 13.7 SEER2 Variable Speed IWAE Central Air Conditioner Split System - Multiposition - R454B step up to the plate. Earning AHRI certification and ETL listing on both the AC and air handler, this IWAE Air Conditioner System proves the legitimacy of every functional and safety claim by passing exhaustive third-party evaluations. Keep your 2500 to 3000 square foot space cool and comfortable in even the worst summer heat with the help of this 5 Ton IWAE AC Split System.

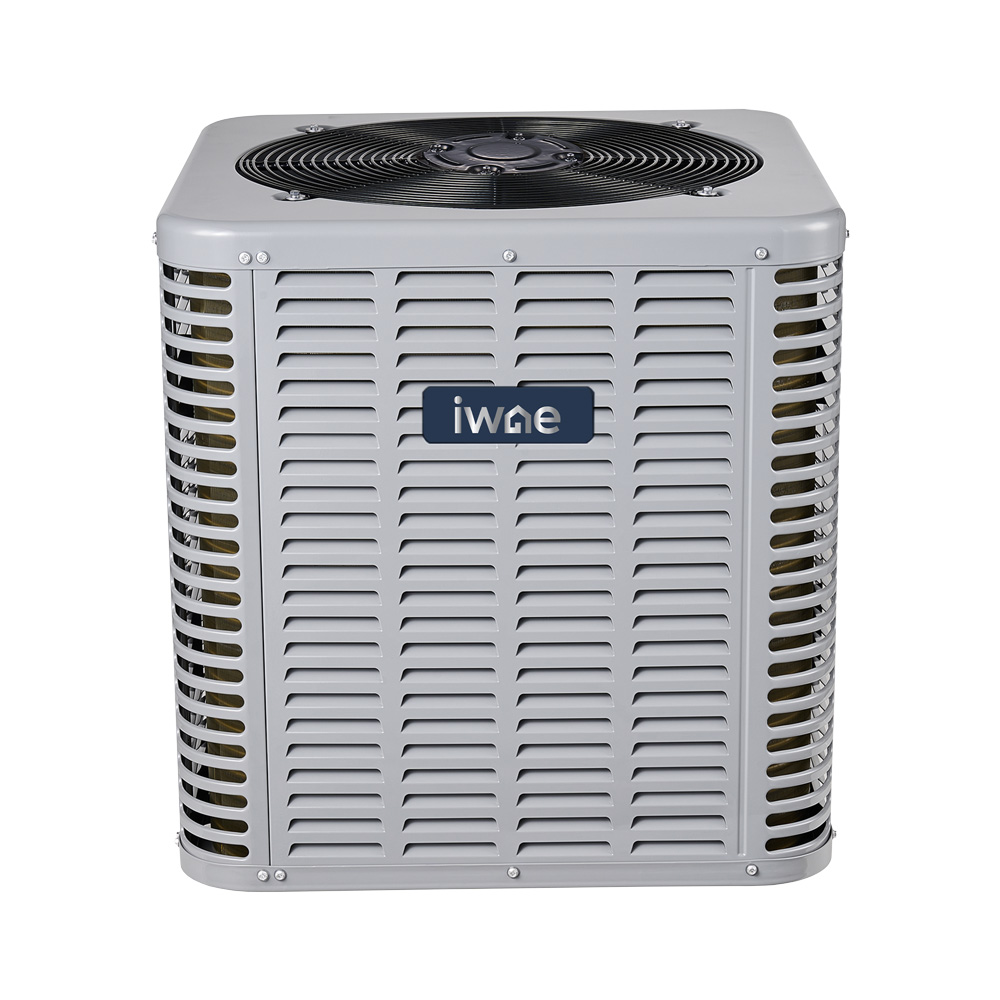

A great solution for climate control in hot climates, the condenser in the 5 Ton 13.7 SEER2 Variable Speed IWAE Central Air Conditioner Split System - Multiposition - R454B is designed to handle almost any housing setup with ease. Crafted to work effectively and efficiently when outside temperatures are between 54 and 126 degrees Fahrenheit, this IWAE AC can handle the hottest conditions in most regions. Using gold fin protection to resist corrosion and a baked enamel coating to shield against severe weather and debris, this IWAE Air Conditioner won’t fall prey to common outdoor hazards. Equipped with a sound control blanket that lowers the noise levels of operation and an energy efficient compressor that decreases your utility bill, this IWAE Split System is exactly what you need to maximize the results in your home over the years.

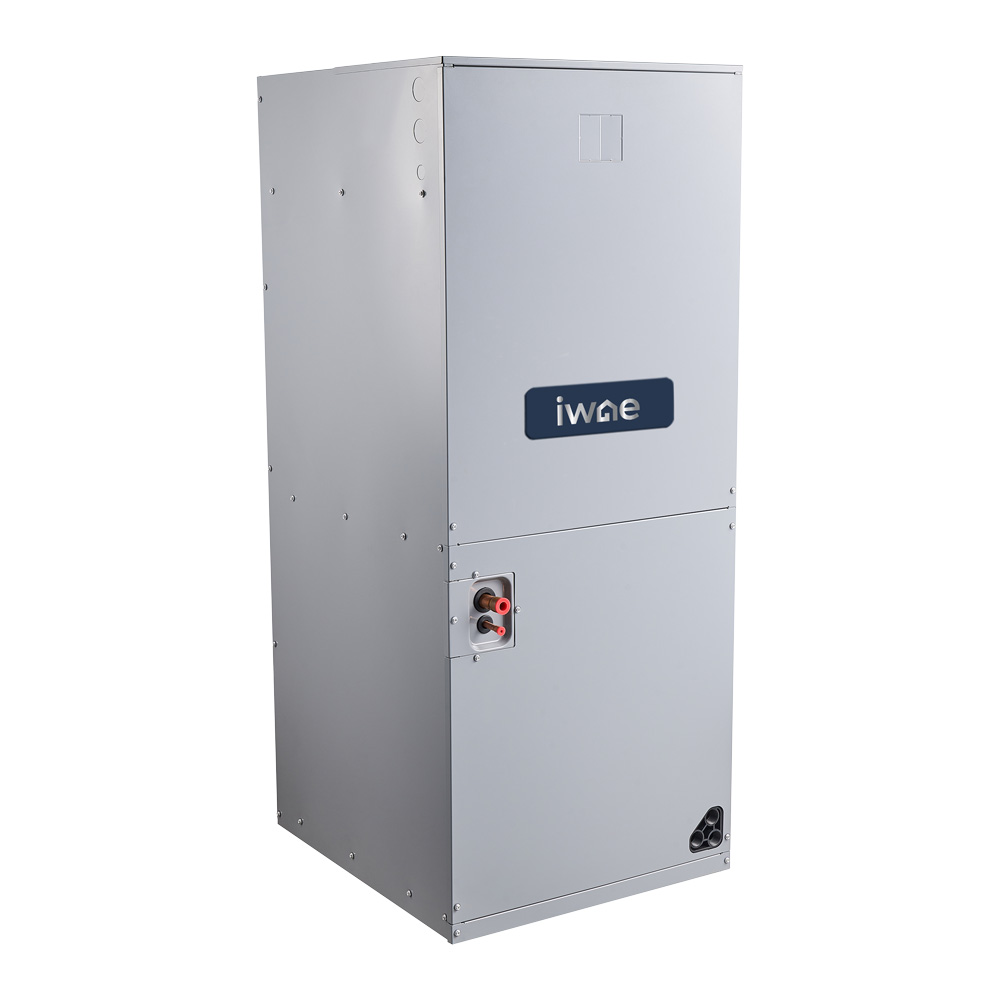

Crafted to work well with the matching AC, the air handler in the 5 Ton 13.7 SEER2 Variable Speed IWAE Central Air Conditioner Split System - Multiposition - R454B makes the most of your indoor space by piggy-backing on the hard work of the outdoor unit. Giving you next level versatility, this IWAE Air Handler accommodates upflow, downflow, and left or right horizontal applications while being able to incorporate a 5kW to 10kW electric heat kit without hassle, ensuring a perfect fit in a wide range of home layouts. Thanks to the foil-faced insulation that coats the inside of the casing, this IWAE Split System optimizes your comfort from every angle by giving you the top-notch efficiency that won’t leave you high and dry in the heat.
Giving you the results you’ve been dreaming of and adding the peace of mind that comes with a warranty that covers 10 years on parts and a lifetime on the compressor, what more could you be holding out for? Grab this 5 Ton Multiposition IWAE Central Air Conditioner Split System utilizing R454B refrigerant today and make sure everyone in your home can stay cool, calm, and collected no matter what the weather is doing in your area.
| Model | IWAESAS4T6021AA,IWAEAMPEF60E21AA |
|---|---|
| UPC | 840433703938 |
| AHRI Number | 217513201 |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
IWAESAS4T6021AA Specifications:
| Model | IWAESAS4T6021AA |
|---|---|
| UPC | 840433703938 |
| AHRI Number | 217513201 |
| Product Height (in) | 32.9 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 29.1 |
| Compressor | Single Stage |
| Product Width (in) | 29.1 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 60 amps |
| Weight (lbs) | 206.000000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 13.8 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Region Compatibility | Nationwide |
IWAEAMPEF60E21AA Specifications:
| Model | IWAEAMPEF60E21AA |
|---|---|
| UPC | 840433704072 |
| Product Height (in) | 53.1 |
| Configuration | Floor Mounted |
| Product Length (in) | 24.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 22 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 10 amps |
| Weight (lbs) | 170.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
