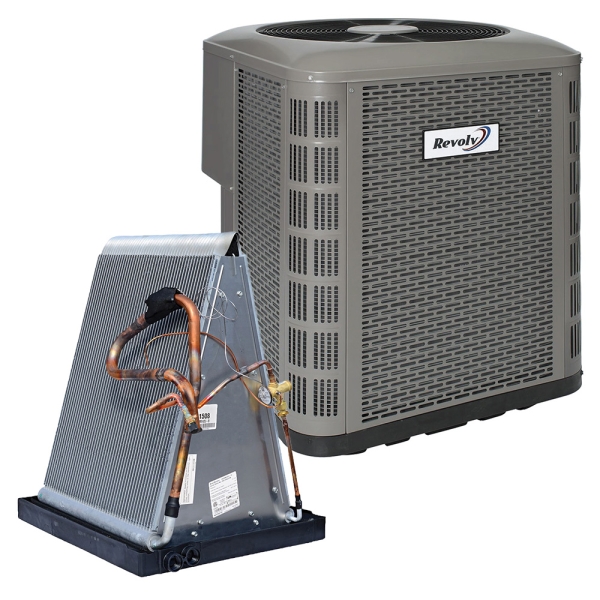

5 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B

Item
HA27672
Models HSA4ME5M1SN60K, C85DAMX4960U-B
Condition
New


Customize 5 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    Free Shipping

    What's included

    Guaranteeing reliably crisp temperatures in your mobile home doesn’t have to be a difficult task just because your antiquated HVAC system struggles to keep up with modern-day temperatures. With an upgrade to the 5 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B, summertime won’t spell the end of cool indoor comfort any longer. Backed by both AHRI certification and ETL listing, the Revolv AC & Coil System passes thorough third-party testing to showcase the validity of every safety and functional claim. Make the most of your 2500 to 3000 square foot home no matter how hot it is outside by bringing home a 5 Ton Revolv System.

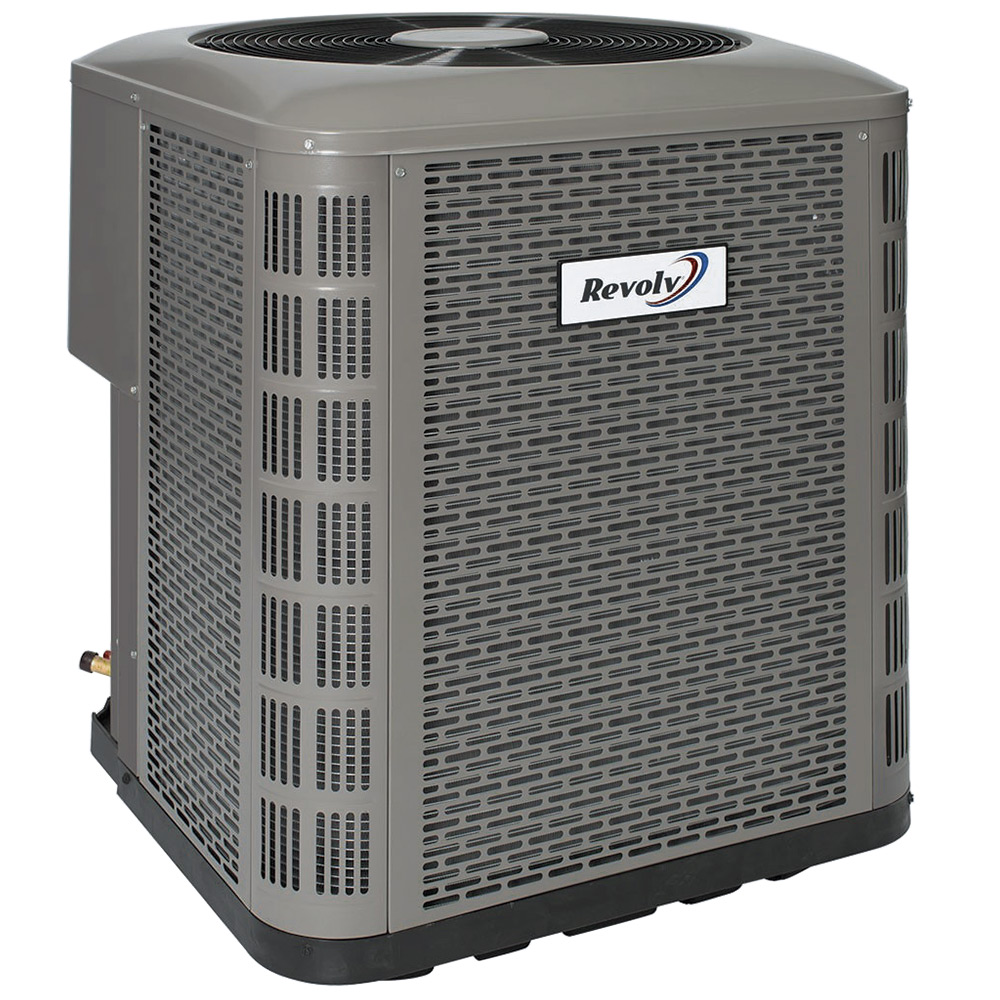

    Ensuring the refreshing temperatures you want in the throws of summer, the condenser in the 5 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B keeps you and your loved ones comfortable. Crafted from galvanized steel and coated with a powder-paint treatment that rounds sharp corners and earns 950-hour salt-spray approval, the Revolv System has a cabinet that shouldn’t fade, chip, scratch, and corrode for a long, long time. A combination of the permanently lubricated PSC motor, quality scroll compressor, and base pan mitigate any vibrations during normal use, keeping operation quiet to maximize your comfort beyond just climate control. With enough refrigerant to handle 20 feet of line set and a removable top grille assembly, the Revolv AC makes setup an effortless task for trained technicians. The easily removable jacket streamlines access to the compressor and controls without having to remove the top grille, letting the Revolv AC System save you money at every step of the process.

    Eliminating the warmth from inside your home, the evaporator coil in the 5 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B keeps you cool with ease. Thanks to the use of R454B refrigerant, the Revolv Coil boasts zero ozone depletion potential and a lowered GWP (global warming potential) compared to older refrigerant options. An integrated TXV metering device lets the Revolv System automatically adapt the amount and flow of the refrigerant to maintain superheat, keeping the system operating efficiently over time. The down turn braze connections ensure leak-free performance, allowing the Revolv AC & Coil System to go above and beyond your needs to guarantee the reliable results you deserve.

    Making sure every nook and cranny of your manufactured or modular housing is crucial to stay cool through summertime, so why settle for anything less? Decide on the 5 Ton Revolv Mobile Home Air Conditioner & Coil System equipped with R454B refrigerant today to ensure the exact indoor ambiance you crave, even in the worst heat Mother Nature can throw your way.

    More Information
    Model HSA4ME5M1SN60K,C85DAMX4960U-B
    AHRI Number 216044465
    Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
    Bundle Cooling Capacity 5 Ton
    Bundle Cooling Efficiency (SEER2) 13.8
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    HSA4ME5M1SN60K Specifications:

    More Information
    Model HSA4ME5M1SN60K
    UPC 663132529216
    Product Height (in) 45.25
    Avg Coverage Area 2,000 - 2,400 Sq Ft
    Product Length (in) 31.75
    Compressor Single Stage
    Product Width (in) 31.75
    Cooling Capacity 5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 50 amps
    Weight (lbs) 179.000000
    Refrigerant R-454b
    Cooling Efficiency (SEER2) 13.8
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C85DAMX4960U-B Specifications:

    More Information
    Model C85DAMX4960U-B
    UPC 663132533732
    Product Height (in) 29
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 4 Ton, 5 Ton
    Product Width (in) 18.125
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 50.000000
    Refrigerant R-454b
    Suction Line Size 7/8 inch
    Warranty 5 Year
