Overview

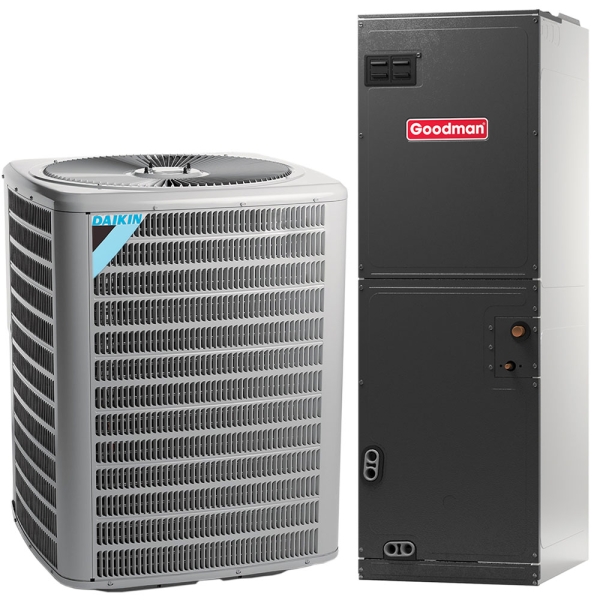

Goodman 5 Ton Multi Speed Air Handler - ARUF61D14

Manufacturer Highlights
The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Suitable for use with the refrigerants R-410A and R-22
- All-aluminum evaporator coil
- Check flowrater expansion device for cooling-only and heat pump applications
- Direct-drive, multi-speed motor
- Transformer and blower time-delay on all units
- AHRI Certified; ETL Listed
Cabinet Features
- Rust-resistant, fully insulated steel cabinet
- Galvanized, leather grain-embossed finish
- Attractive Architectural Gray painted front panels
- Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
- Built-in filter rack for 1" filter (filter not included)
- Power supply entry at top; low-voltage entry on left side and top
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | DX13SA0603,ARUF61D14 |
---|---|
UPC | 663051540620 |
AHRI Number | 8000271 |
Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
Bundle Cooling Capacity | 5 Ton |
Bundle Cooling Efficiency | 13 SEER |
EER | 11 |
Region Compatibility | Nationwide |
California Residents | see Prop 65 WARNING |
DX13SA0603 Specifications:
Model | DX13SA0603 |
---|---|
UPC | 663051540620 |
Avg Coverage Area | 2,500 - 3,000 Sq Ft |
Compressor | Single Stage |
Cooling Capacity | 5 Ton |
Electrical Phase | 3-Phase |
Line Set Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 35 amps |
Product Height (in) | 39 |
Product Length (in) | 36 |
Product Width (in) | 36 |
Cooling Efficiency | 13 SEER |
Suction Line Size | 1 1/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 229.0000 |
Region Compatibility | North |
ARUF61D14 Specifications:
Model | ARUF61D14 |
---|---|
UPC | 663051512504 |
Air Flow Direction | Downflow, Horizontal, Upflow |
Configuration | Floor Mounted |
Blower Motor | Multi Speed |
Cooling Capacity | 5 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | Up to 25 kW |
Line Set Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 58 |
Product Length (in) | 21 |
Product Width (in) | 24.5 |
Suction Line Size | 7/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 10 Year Parts |
Weight (lbs) | 155.0000 |
Reviews
Accessories
Q & A
How many BTU do both the selected furnace's produce?
Our proposed systems are:
(1) Main level living + lower level Family room: Daikin DM96VC and Daikin DX13SA060 for about 3300 sq. ft.
(2) Lower bedrooms + Main level laundry and office: Daikin DC96VC080 + DX13SA036 for about 1300 sq. ft.
Thank you,
