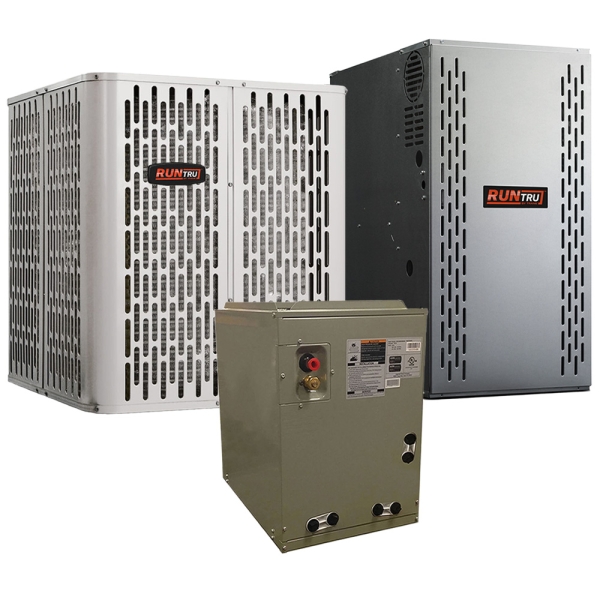

5 Ton 14.3 SEER2 120K BTU 80% AFUE Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition
Item
HA23740
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Are you finding yourself fatigued by the erratic temperature shifts generated by your antiquated HVAC system? It's time to leave behind the frustration and usher in the future with the 5 Ton 14.3 SEER2 120K BTU 80% AFUE Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition. This Trane Split System leverages ETL listing as well as AHRI and UL 1995 certifications, a SEER2 rating of 14.3, and an 80% fuel efficiency rating to guarantee that every performance claim earns validation. This verification assures that your 2500 to 3000 square foot space will luxuriate in the benefits of dependable climate control, enhancing the quality of your daily life.
Engineered for peak efficiency in any environment, the heat pump integrated into the 5 Ton 14.3 SEER2 120K BTU 80% AFUE Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition features a carefully curated range of components that not only shields the internal hardware but also delivers unparalleled results. Even in extreme temperatures as high as 115 degrees Fahrenheit, this Trane Split System doesn't falter thanks to a heavy-gauge galvanized steel cabinet treated with a weather-resistant powder paint finish. Bumping up resilience to new levels, all panels showcase durability by passing a rigorous 1000-hour salt spray test, ensuring long-lasting performance over time. While the default build of this Trane Heat Pump can cool your space to a relaxing 55 degrees Fahrenheit, various optional ambient kits give you the capability to lower your home's temperature to an icy 20 degrees Fahrenheit, presenting you with every means to relish the exact atmosphere you want in your space.
The furnace employed in the 5 Ton 14.3 SEER2 120K BTU 80% AFUE Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition maintains an equally intense focus on quality. Built with efficiency in mind, this Trane Gas Furnace trims your utility bills through an airflow design that reduces electrical energy consumption. Encased in a lightweight 34-inch shell, this 120k BTU Trane is effortless to install, even in cramped areas like closets or basement crawl spaces. Upholds an air leak rate of 1.4% or less when tested in accordance with ASHRAE standard 193, you can rest easy knowing that you'll save both time and money without making any concessions on performance.
With all these advantages and more, why delay your decision another moment? Transform your home into your personal sanctuary with this Trane Split System and begin living the life of opulence you've been yearning for.
120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5" Cabinet
The 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet is the answer to keeping your loved ones warm and cozy during the winter months. This gas furnace is designed to quickly send warmed air throughout your home and is known for its quality construction, reliable dependability, and cost-saving efficiency.
This model of the Trane RunTru gas furnace has a 120,000 BTU capacity, a 5 ton nominal air flow, and an 80% annual fuel utilization efficiency (AFUE). This system works to provide affordable, reliable service even with high use.
The multiport, inshot burners in the Trane RunTru gas furnace work reliably and quietly to keep your home comfortable for many years and unnecessary noise to a minimum. You will need to purchase a conversion kit to switch the power source for this furnace to liquefied petroleum (LP).
Specification errors aren't a worry with this 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet because the flexible system can be installed in four configurations: upflow, downflow, horizontal left, or horizontal right. This gas furnace is also compatible with large, high-efficiency coils.
Trane RunTru multiposition gas furnaces are easy to move and can fit in tight spaces like closets or basements. The dimensions of this particular model are 34 high, 24.5 wide, and 28.75 deep.
Trane RunTru gas furnace heat exchangers are made of durable, cycle tested heavy gauge tubular aluminized steel. These quality components efficiently transfer heat to keep your space comfortable when temperatures drop.
Instead of a standard PSC motor, Trane RunTru gas furnaces use a constant torque blower motor that is more efficient. The motor used in this appliance has nine different speeds and produces enough airflow for most heating and cooling requirements. This gas furnace motor can easily switch speeds on demand to meet your home's needs, depending on your thermostat's features.
Trane RunTru gas furnaces are single-stage and non-condensing, and the unit's centrifugal combustion fan evenly distributes heat throughout your home. The power vent blower efficiently discharges the furnace's gas fumes outdoors and uses minimal energy to do so.
Trane RunTru gas furnaces use a silicon nitride hot surface ignition system to light the main burners instead of a traditional pilot light. The more modern ignition system is safer and eliminates the hassle of checking and lighting the pilot each new season.
The integrated control unit for Trane RunTru gas furnaces is a solid state device that allows you to manage the system's setup functions, see its status, and view diagnostics that are shown on the control's digital display.
To ensure your family is safe, the control unit continuously monitors for the presence of a flame and allows you to monitor the limit sensors, blowers, and gas valve. A rain shield covers and protects the integrated control from condensation. An additional safety measure from Tren RunTru is the unit's dual solenoid combination gas valve and regulator.
A solid galvanised steel cabinet protects and houses the Trane RunTru gas furnace components with its Air-Tite™design. The casing's energy efficiency meets ASHRAE 193's certifications with less than 1.4% air leak.
The heavy gauge steel cabinet surrounds the furnace, which provides additional strength. All installation configurations provide two venting options, and the cabinet is compatible with industry standard coils and common accessories.
The limit setting and rating data for the Trane Runtru Multi Speed Gas Furnace follow American National Standards Institute (ANSI) requirements, and Intertek certified the furnace's design for use with both natural and liquid petroleum (LP) gas. This 120K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 24.5inch Cabinet was designed, assembled, and tested in the USA and manufactured at a facility in Trenton, New Jersey.
| Model | A4AC5060D1000,A801X120DM5S,4MXCD010C6 |
|---|---|
| UPC | 647535882727 |
| AHRI Number | 210588365 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 12 |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
A801X120DM5S Specifications:
| Model | A801X120DM5S |
|---|---|
| UPC | 850017455450 |
| AHRI Number | 204606306 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 24.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 160.000000 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| System Application Type | Central Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
4MXCD010C6 Specifications:
| Model | 4MXCD010C6 |
|---|---|
| UPC | 762530184000 |
| Product Height (in) | 30 |
| Air Flow Direction | Horizontal, Vertical |
| Product Length (in) | 21 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Product Width (in) | 24.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 95.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
