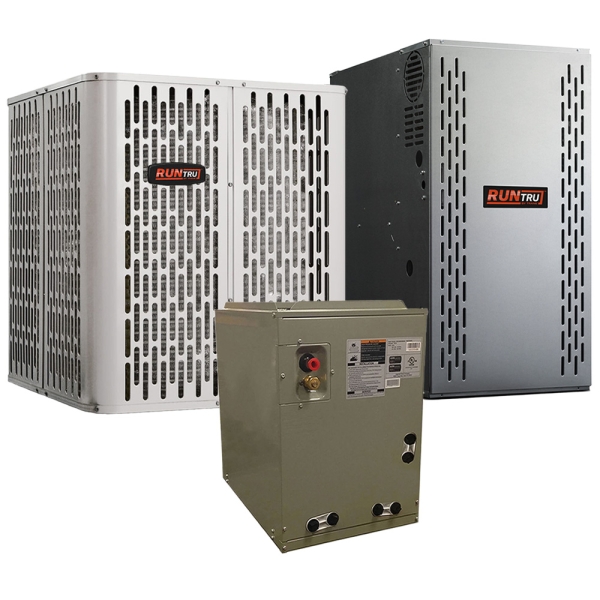

5 Ton 14.3 SEER2 80K BTU 80% AFUE Multi Speed Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition
Item
HA23741
Models A4AC5060D1000A, A801X080CM5S, 4MXCD010C6
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA21208 Model: A801X080CM5S
Qty: 1
Item: HA21595 Model: 4MXCD010C6
Qty: 1
Are you about to give up due to the unpredictable temperature swings produced by your outdated HVAC system? It's time to put the inconsistency to bed and start your journey towards the future with the 5 Ton 14.3 SEER2 80K BTU 80% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition. This Trane Split System puts its money where its mouth is by earning ETL listing, AHRI and UL 1995 certifications, a SEER2 rating of 14.3, and an 80% fuel efficiency rating. These confirmations that each and every performance claim has been thoroughly validated ensure that your 2500 to 3000 square foot space will reap the benefits of reliable climate control, upgrading the quality of your everyday life.
Constructed for optimal efficiency in any setting, the heat pump included in the 5 Ton 14.3 SEER2 80K BTU 80% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition boasts a thoughtfully chosen range of features that not only safeguards the internal components but also provides unmatched results. Even in sweltering temperatures as high as 115 degrees Fahrenheit, this Trane Split System remains unwavering in part due to a heavy-gauge galvanized steel cabinet finished with a weather-resistant powder paint coating. Elevating resilience even further, all panels demonstrate their durability by passing a 1000-hour salt spray test, guaranteeing long-lasting performance over the years. While the standard configuration of this Trane Heat Pump can cool your space to a chill 55 degrees Fahrenheit, assorted optional ambient kits provide you with the capability to lower your home's temperature to a frigid 20 degrees Fahrenheit, giving you with every means to savor the exact ambiance you desire in your space.
The furnace employed in the 5 Ton 14.3 SEER2 80K BTU 80% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition keeps an equally remarkable focus on quality. Constructed with efficiency on the forefront, this Trane Gas Furnace minimizes your utility bills with an airflow design that decreases electrical energy consumption. Enclosed within a lightweight 34-inch shell, this 80K BTU Trane is easy to install even in tight areas like closets or basement crawl spaces. With an air leak rate of 1.4% or less when tested in accordance with ASHRAE standard 193, you can breathe a sigh of relief knowing that you'll save both time and money without putting a damper on performance.
With all these advantages and more, why wait any longer? Upgrade your home into your personal oasis with this Trane Split System and begin living the life of luxury you've been hoping for.
80K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 21" Cabinet
Stay warm on chilly winter nights with a 80K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 21inch Cabinet that sends comforting warm air throughout your home. With this gas furnace you can expect quality construction, reliable dependability, and cost-saving efficiency at a relatively low price point.
This 80K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 21inch Cabinet has an 80,000 BTU capacity, 4-5 ton nominal air flow, and an 80% annual fuel utilization efficiency (AFUE) that work together to provide affordable, reliable service during high use seasons.
This furnace uses multiport, inshot burners that work quietly and reliably to keep your home comfortable for many years. Do note that if you need a system that runs on liquified petroleum (LP) gas, you can purchase a separate conversion kit to easily switch the fuel type and meet your home's needs.
Expect no specification errors with this Trane RunTru furnace because the flexible system can be installed four ways: upflow, downflow, horizontal left, or horizontal right. These multiposition gas furnaces are easy to move, can be installed in tight spaces like basements or closets, and are compatible with large, high-efficiency coils. The dimensions of this particular Trane RunTru gas furnace are 34 high, 21 wide, 28.75 deep.
80K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 21inch Cabinet heat exchangers are made of durable, cycle tested heavy gauge tubular aluminized steel and efficiently transfer heat to keep your home comfortable during the coldest months of the year.
Rather than a standard PSC motor, Trane RunTru gas furnaces use a constant torque blower motor that is more efficient. The constant torque blower motor used in this system has nine different speeds and produces enough airflow for most heating and cooling requirements. Depending on your thermostat, this gas furnace can easily switch speeds on demand to meet your family's needs.
This single-stage, non-condensing gas furnace operates with a centrifugal combustion fan that evenly distributes heat throughout your home. The power vent blower on this appliance discharges the furnace's gas fumes outdoors and is low energy, which increases efficiency and saves money.
Trane RunTru gas furnaces use a silicon nitride hot surface ignition system to light the main burners instead of relying on a continuous burning pilot light. The ignition system is safer and eliminates the hassle of having to check or light the pilot light each season.
Trane RunTru gas furnaces use a solid state device integrated control unit that allows you to manage setup functions, view system status, and manage diagnostics that are shown on its digital display. To ensure your family is safe, the control unit continuously monitors for the presence of a flame. The control unit also allows you to manage the limit sensors, blowers, and gas valve. A rain shield protects the integrated control from condensation.
An additional safety feature on Trane RunTru gas furnaces are the dual solenoid combination gas valve and regulator installed on each unit.
A sturdy galvanised steel cabinet houses and protects Trane RunTru gas furnace components. This casing is designed to be energy efficient with an Air-Tite™ design and is certified to have less than 1.4% air leak per ASHRAE 193.
The heavy gauge steel cabinet wraps around the furnace for additional strength, and every installation configuration provides two venting options. This casing is compatible with industry standard coils and common accessories and does not feature knockouts.
Intertek has certified the Trane RunTru Multi Speed Gas Furnace design for use with both natural and liquid petroleum (LP) gas. American National Standards Institute (ANSI) requirements were used to determine the furnace's limit setting and rating data. Trane designs, assembles, and tests 80K BTU 80% AFUE Multi Speed Trane RunTru Gas Furnace - Multiposition - 21inch Cabinet units like this one in the USA. It is manufactured at a plant in Trenton, New Jersey.
| Model | A4AC5060D1000,A801X080CM5S,4MXCD010C6 |
|---|---|
| UPC | 647535882727 |
| AHRI Number | 210588361 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 12 |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
A4AC5060D1000A Specifications:
| Model | A4AC5060D1000A |
|---|---|
| UPC | 647535882727 |
| Product Height (in) | 45 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 34 |
| Compressor | Single Stage |
| Product Width (in) | 34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 306.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A801X080CM5S Specifications:
| Model | A801X080CM5S |
|---|---|
| UPC | 850017455436 |
| AHRI Number | 204606304 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 142.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
4MXCD010C6 Specifications:
| Model | 4MXCD010C6 |
|---|---|
| UPC | 762530184000 |
| Product Height (in) | 30 |
| Air Flow Direction | Horizontal, Vertical |
| Product Length (in) | 21 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Product Width (in) | 24.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 95.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
