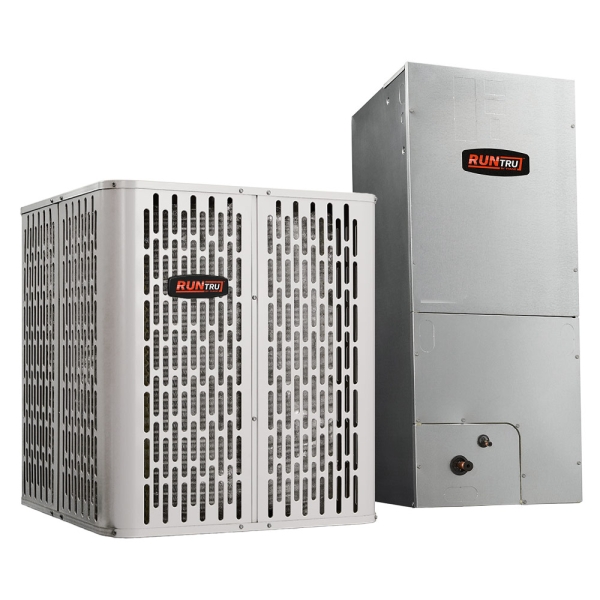

5 Ton 14.3 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition
Item
HA23713
Models A4HP5060D1000A, A4AH4E60B1C30A
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA22336 Model: A4AH4E60B1C30A
Qty: 1
Are you fed up with the endless battle against your out-of-date heat pump system? The time has come to wave goodbye to inconsistent temperatures and welcome in the reliability you deserve with the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System. Meriting both AHRI and UL 1995 certifications alongside a SEER2 rating of 16, you can be confident that every performance claim has been validated to ensure that your 2500 to 3000 square foot space can revel in the dependable climate control you've longed for. Engineered to operate at peak efficiency even in sweltering temperatures of up to 115 degrees Fahrenheit, this Trane Split System doesn't waver even in the most tropical regions. While the standard design of this Trane Heat Pump cools your space to a relaxing 55 degrees Fahrenheit, a wide array of optional ambient kits gives you with the tools needed to lower your home's temperature to an impressively cool 20 degrees Fahrenheit, offering you the flexibility required to align with your desires for your space's ambiance.
The heat pump included in the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System leverages a diverse array of thoughtfully selected features to supply uncompromising results. The unit's casing, forged from heavy-gauge galvanized steel, is additionally strengthened by a weather-resistant powder paint coating. Extending this durability even further, all panels have successfully endured a 1000-hour salt spray test, guaranteeing long-lasting durability. The condenser coil reaps the reward of even more protection thanks to louvered panels on all four sides, reducing air resistance and maximizing heat transfer. Arriving fully charged with ten feet of tested connecting line, this Trane Heat Pump comes fully equipped with all the essential tools to streamline the setup process, saving you both time and cost.
The air handler in the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System maintains an equivalently impressive performance. Coming in one uniform color and loaded with captured foil-faced insulation, this Trane Air Handler earns an insulating value of R-4.2 while keeping air leak at 2% or less. The all-aluminum coil fends off corrosion while offering upflow, downflow, and horizontal left or right configuration options, promising that this 5 Ton Trane has the adaptability to accommodate your home's specific layout.
With all these advantages and more, why put off the decision any longer? Upgrade your home's comfort levels with this Trane Heat Pump bundle and transform your home into your personal oasis.
| Model | A4HP5060D1000A,A4AH4E60B1C30A |
|---|---|
| UPC | 601954744226 |
| AHRI Number | 212579336 |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 12 |
| Heat Pump Efficiency (HSPF) | 8 |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
A4HP5060D1000A Specifications:
| Model | A4HP5060D1000A |
|---|---|
| UPC | 601954744226 |
| AHRI Number | 212579334 |
| Product Height (in) | 45 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 34 |
| Compressor | Single Stage |
| Product Width (in) | 34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 8.1 |
| Heat Pump Efficiency (HSPF2) | 8 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 300.000000 |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A4AH4E60B1C30A Specifications:
| Model | A4AH4E60B1C30A |
|---|---|
| UPC | 647535850375 |
| Product Height (in) | 55.75 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.13 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | High Efficiency |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 25 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 185.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Evaporator Coil |
