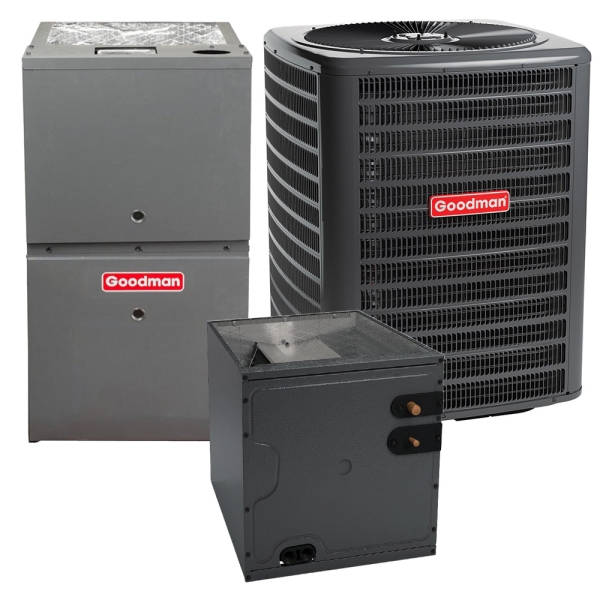

5 Ton 14.5 SEER2 100k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Downflow - R32
GOODMAN

Description / Documents
Navigating through the vast range of HVAC systems available on the market today can make selecting the right heating and cooling system for your home feel like an overwhelming task. There's no need to let yourself fall prey to anxiety, the 5 Ton 14.5 SEER2 100k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Downflow - R32 is here to present an excellent solution for elevating your home's ambient comfort level. Achieving both AHRI certification and ETL listing, this Goodman Split System has passed intensive third-party evaluations to confirm the accuracy of its performance claims. Replace your outdated system and refrigerant with this 5 Ton Goodman Split System that utilizes R32 refrigerant, and enjoy superior climate control in your 2500 to 3000 square foot home.
Designed to improve the overall comfort in your home, the Air Conditioner in the 5 Ton 14.5 SEER2 100k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Downflow - R32 takes advantage of several powerful features that bolster your indoor environment. The sturdy galvanized steel cabinet is coated with a durable gray powder-paint finish, offering remarkable safety against external conditions as proven by its successful passing of a 500-hour salt-spray test. With a straightforward single-panel design and well-positioned gauge ports, this Goodman AC ensures that any licensed technician can easily access internal components, allowing for efficient servicing. Equipped with a factory-installed filter drier and providing plenty of space for additional field-installed accessories, this Goodman Air Conditioner is designed to deliver reliable, energy-efficient cooling throughout your home.

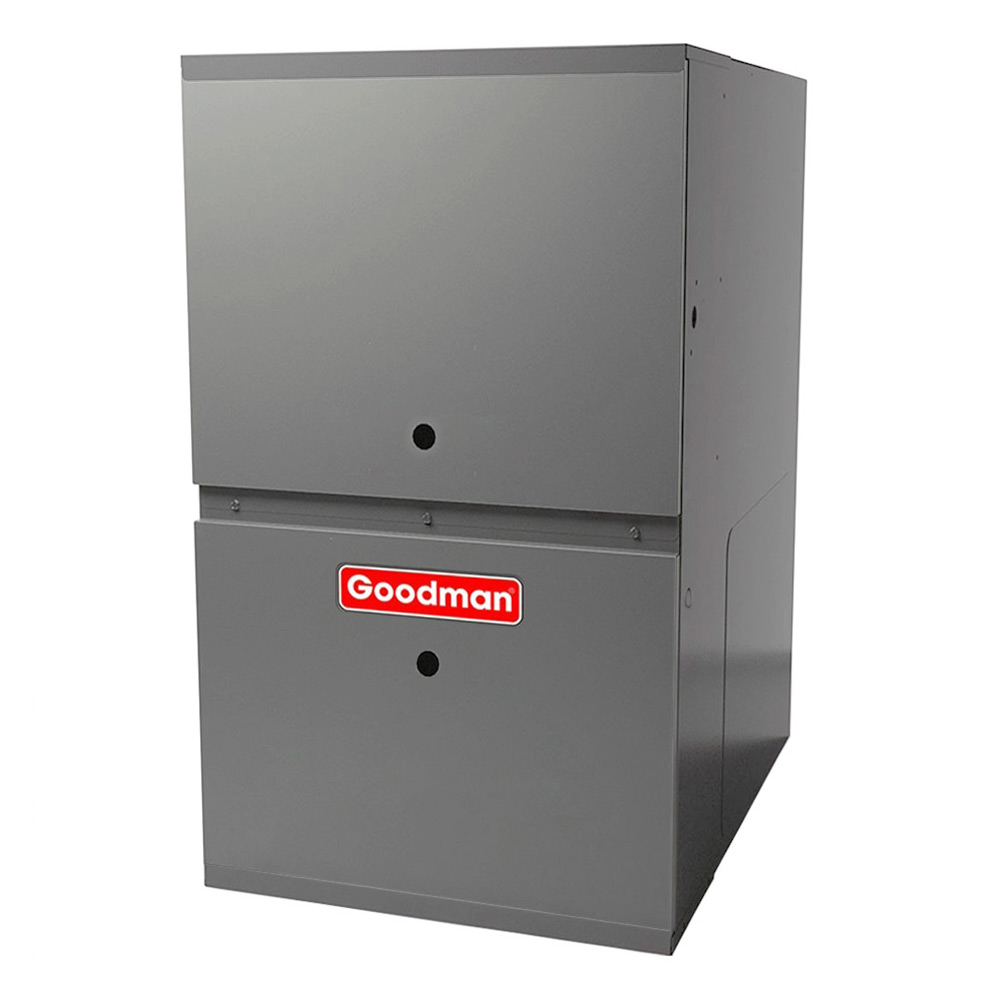

Enhancing your home's heating capacity, the Gas Furnace in the 5 Ton 14.5 SEER2 100k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Downflow - R32 offers the next level climate control you desire for your living space. Encased in a strong, heavy-gauge steel cabinet with a baked-enamel coating, this Goodman Furnace is protected from moisture, dust, and other potentially harmful factors. Packed with advanced components such as a SureStart Silicon Nitride igniter, a two-stage gas valve, and a multi-speed ECM circulator motor, this Goodman Furnace guarantees smooth, silent airflow throughout your home. With flexible options for gas and electric connections on either side of the unit and the ability to run in downflow or left or right horizontal configurations, this Goodman Gas Furnace is designed to fit seamlessly into your home's layout and ensure an effortless setup process.
Also including an all-aluminum, rust and UV-resistant Evaporator Coil into this system, you'll enjoy dependable and long-lasting performance. Why wait any longer to change out your system? Choose this 5 Ton Goodman AC & Gas Furnace Split System with R32 refrigerant today and transform your home into the peaceful sanctuary you've always dreamed of.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS4BA6010,GD9T801005CX,CAPTA6030C3 |
|---|---|
| UPC | 663051691681 |
| AHRI Number | 214860188 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.5 |
| EER2 | 11.5 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| Region Compatibility | Nationwide |
GLXS4BA6010 Specifications:
| Model | GLXS4BA6010 |
|---|---|
| UPC | 663051691681 |
| Product Height (in) | 39.5 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 174.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 14.5 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
GD9T801005CX Specifications:
| Model | GD9T801005CX |
|---|---|
| AHRI Number | 215358016 |
| Product Height (in) | 33.375 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28 |
| Product Width (in) | 21 |
| Air Flow Direction | Downflow, Horizontal |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 131.000000 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
CAPTA6030C3 Specifications:
| Model | CAPTA6030C3 |
|---|---|
| UPC | 663051688445 |
| Product Height (in) | 30 |
| Air Flow Direction | Downflow, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 66.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
