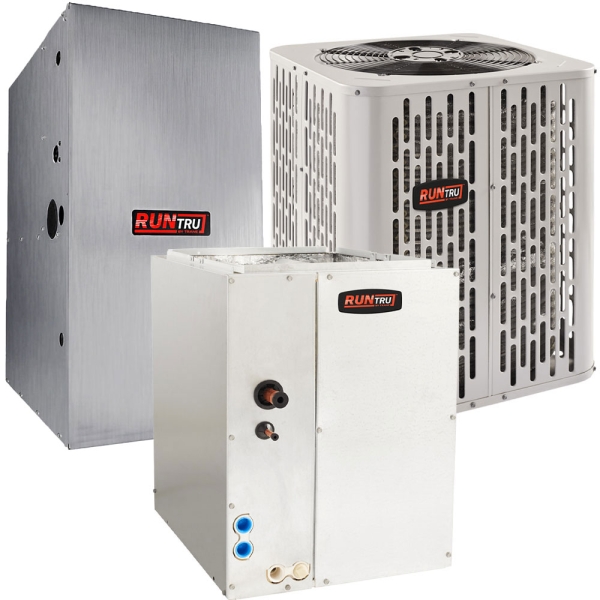

5 Ton 14 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal

Keep comfortable in every season with this 5 Ton 14 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System, a practical heating and cooling system for your home. This split system set includes a central heat pump condenser, cased evaporator coil, and multi speed gas furnace. Each of these appliances are affordable and built to last many years.

This Trane RunTru Central Heat Pump Condenser is the largest in the RunTru line with its 5 ton cooling capacity and 14 SEER rating. This heat pump condenser is capable of cooling your space when temperatures outside are as high as 115°F.

This Trane RunTru Central Heat Pump Condenser creates a low vibration, reducing background noise. For the environmentally conscious, this heat pump condenser is factory charged with R410-A refrigerant, an eco-friendly refrigerant that doesn't damage the ozone layer. This refrigerant is controlled with a compressor contactor, condenser fan, high and low pressure switches, and a TXV that maintains a constant heat for optimal performance.

The scroll compressor features over temperature and overcurrent protection. The all aluminum condenser coil provides low resistance to airflow and efficiently transfers heat. The coil is protected by louvered panels, and the outdoor propeller fan is dynamically and statically balanced. This condenser measures 44.6 high by 34.3 wide by 34.3 deep.

Protecting and housing this heat pump condenser is a cabinet that is made of heavy-gauge, galvanized steel. This casing is coated with a weather-resistant powder paint finish and tested with a 1,000 hour salt spray test to ensure its durability outdoors, including in coastal areas.

The Trane RunTru Cased Evaporator Coil in this 5 Ton 14 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System works well in any arrangement with its 3.5 to 5 ton capacity. The cased evaporator coil uses R-410A refrigerant, the same eco-friendly refrigerant used in the heat pump condenser, and is controlled with a TXV.

The all aluminum coil can be moved to multiple positions, allowing you to tailor the equipment for your home's requirements. The dimensions of this cased evaporator coil are 30.7 high by 21 wide by 21.5 deep.

The Trane RunTru Cased Evaporator Coil is housed in a cabinet made of long lasting galvanized steel. The cabinet is fully insulated to reduce waste. The evaporator coil cabinet includes a double-sloped drain pan that protects your floors from moisture created during the air conditioning process.

The Trane RunTru Multi Speed Gas Furnace in this 5 Ton 14 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is an excellent solution for keeping your family warm during the colder months. This gas furnace has a 100,000 BTU capacity, 4-5 ton nominal air flow, and a 95% annual fuel utilization efficiency (AFUE). The multiport, inshot burners operate quietly and reliably, reducing background noise. The standard fuel source for this gas furnace is natural gas, but you can easily switch it for liquefied petroleum (LP) gas with a conversion kit.

The Trane RunTru Multi Speed Gas Furnace can be installed in an upflow, horizontal left, or horizontal right configuration. This gas furnace can fit into small spaces like basements or closets and measures 34 high by 21 wide by 28.75 deep. It is designed to safely and efficiently meet your home's heating needs with its nine-speed constant torque blower motor (ECM). The silicon nitride hot surface ignition system does not run continuously like a traditional pilot light. With this safe and modern ignition system you won't ever have to relight a pilot light.

Both of the gas furnace's heat exchangers are made with cycle tested, heavy gauge tubular stainless steel that quickly transfers heat. The Vortica II Blower is designed exclusively for Trane RunTru gas furnaces, improves airflow efficiency, and ensures gas fumes are safely discharged outdoors.

The Trane RunTru Multi Speed Gas Furnace has an integrated system control so you can easily monitor your system. This control unit is a solid state device that continuously monitors for the presence of flame. The gas furnace has a digital display for diagnostics that make it easier to service when needed.

A heavy gauge steel wrap-around cabinet with a baked-on enamel finish houses and protects the Trane RunTru Multi Speed Gas Furnace. Any installation configuration has two venting options and no cabinet knockouts.

The 5 Ton 14 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is designed, tested, and assembled in the USA.
