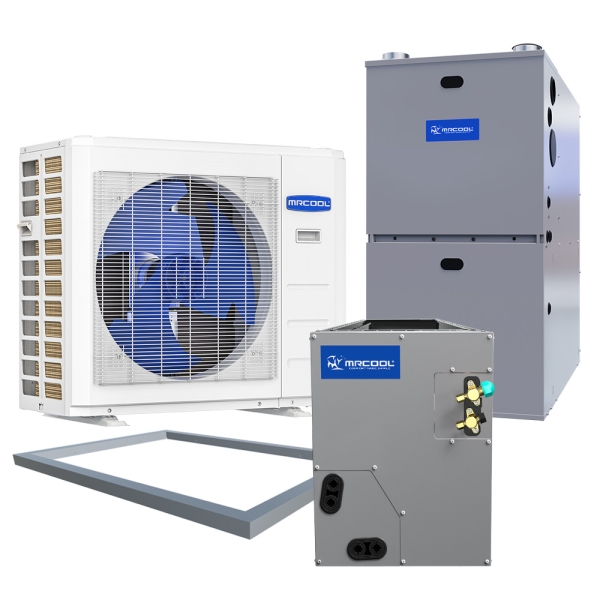

5 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All MRCOOL

Accessories
Description / Documents
For whole home climate control that doesn’t leave you freezing through winter or sweating away the summer, options like the 5 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B are exactly what you’re looking for. Backed by AHRI certification, as well as CSA, UL, and ETL listings, the MrCool System has proven results that won’t leave you wanting. For your 2500 to 3000 square foot home, enjoy the exact temperatures you crave all year long with a 5 Ton MrCool Split System.
Offering heating and cooling performance in a single unit, the condenser in the 5 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B can handle seasonal shifts with ease. The Gold Fin corrosion protection ensures harsh environments along the coast or near industrial zones can install a MrCool condenser without worrying about rust or degradation. The modular construction comes with an accessible, covered filter rack, a slide-out blower, and self-diagnostic abilities, simplifying servicing efforts for reliable performance over time. With its flexible installation options and quiet functionality, the MrCool Split System optimizes your indoor ambiance from every angle.
Adding an extra oomph to maintain toasty temperatures, the furnace in the 5 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B guarantees the cozy conditions you deserve in winter weather. Between the included LP kit and versatile setup, the MrCool furnace meets the needs of your home right where they are. With a resilient casing that maintains efficiency over time, it’s easy to see why the two-stage MrCool Split System can make a positive impact during plummeting temperatures.
Filled to the brim with R454B refrigerant, the evaporator coil in the 5 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B ensures the heat goes exactly where it needs to achieve your settings. Working in upflow, downflow, and left or right horizontal applications, the MrCool coil with CoolGuard corrosion resistance can be accommodated in almost any space. With the flange attaching the coil to the furnace, and a TXV controlling the direction of the refrigerant, the MrCool Split System gives your home the top-tier temperature regulation results you need.
Even if you’re impressed with the performance of the MrCool Split System, the peace of mind it offers makes your choice simple. With the condenser, furnace, and evaporator coil all coming with a warranty that provides 10 years of parts coverage, the condenser including the same length of warranty on the compressor, and the furnace adding a lifetime of coverage onto the heat exchanger, what more could you ask for? Choose the 5 Ton 100k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System running on R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MVP60P60M96100C |
|---|---|
| UPC | 840255599450 |
| AHRI Number | 217666254 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Heat Pump Efficiency (HSPF2) | 8.4 |
| Region Compatibility | Nationwide |
MVP-60-HP-C-230A00-O Specifications:
| Model | MVP-60-HP-C-230A00-O |
|---|---|
| UPC | 840255586436 |
| AHRI Number | 216032540 |
| Product Height (in) | 38.39 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 38.58 |
| Compressor | Inverter |
| Product Width (in) | 16.34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.4 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 193.000000 |
| Primary Heating Capacity | 50,001 - 55,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 15.2 |
| Series | VersaPro |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
MGM96EE100C5NB Specifications:
| Model | MGM96EE100C5NB |
|---|---|
| UPC | 840255582667 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 173.000000 |
| Primary Heating Capacity | 105,001 - 110,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP4860COTB Specifications:
| Model | MCMP4860COTB |
|---|---|
| UPC | 840255582810 |
| Product Height (in) | 27.8 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21.5 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21.6 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 97.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year, 10 Year Parts |
MCMP4860C-F Specifications:
| Model | MCMP4860C-F |
|---|---|
| UPC | 840255582810 |
| Product Height (in) | 21 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.700000 |
