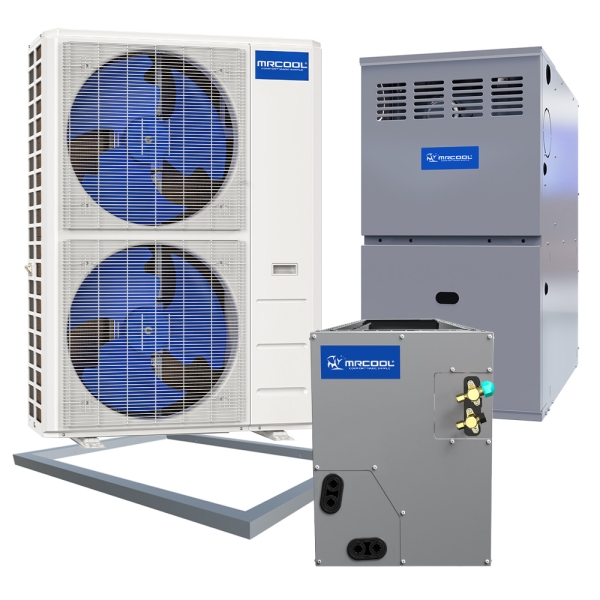

5 Ton 15.6 SEER2 120k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All MRCOOL

Accessories
Description / Documents
Having an HVAC system that can handle the frigid temperatures of winter and stifling heat of summer doesn’t have to be difficult with the 5 Ton 15.6 SEER2 120k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B. Earning CSA, UL, and ETL listings, on top of AHRI and Energy Star certifications, each component of the MrCool System is backed by proven testing. Enjoy the exact indoor ambience you want in your 2500 to 3000 square foot home with a 5 Ton MrCool Split System.
Going the distance for your year-round comfort, the condenser in the 5 Ton 15.6 SEER2 120k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B makes your home your sanctuary in every season. Thanks to Gold Fin corrosion protection, coastal towns and other corrosive environments won’t get the best of the MrCool condenser. The modular design includes a slide-out blower, self-diagnostic abilities, and a filter rack with removable cover for easy servicing. Flexible installation options and variable speed functionality let the MrCool Split System suit the needs of almost any home.
Able to effectively fight off frigid winter temperatures, the furnace in the 5 Ton 15.6 SEER2 120k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B is more than equipped to bring the heat. The multi-position setup options and included LP kit provide impressive flexibility, catering to your home’s unique layout. Designed for long-term durability, the two-stage MrCool Split System is exactly what your loved ones need to stay cozy during bitter outdoor temperatures.
Packed full of R454B refrigerant, the evaporator coil in the 5 Ton 15.6 SEER2 120k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B effectively handles the flow of refrigerant for efficient performance. Able to work in upflow, downflow, and right or left horizontal applications, the MrCool Coil with CoolGuard corrosion resistance meets your home’s needs exactly where they are. A compact construction is designed to attach to the furnace securely with the flange adapter. Pre-installed with a TXV that flips the refrigerant flow to accommodate heating and cooling modes, the MrCool Split System is more than equipped to maintain your preferences in any weather.
Giving you the performance you want, then backing the hardware of the condenser, furnace, and evaporator coil by a 10-year parts warranty, it’s easy to justify the upgrade. MrCool sweetens the pot even further with 10 years of coverage on the condenser’s compressor and labor, as well as a lifetime of coverage on the furnace’s heat exchanger in the furnace. So what do you gain by waiting? Choose the 5 Ton 120k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System making use of R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | CEN60P60M96120D |
|---|---|
| UPC | 840255599764 |
| AHRI Number | 217666241 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.6 |
| Heat Pump Efficiency (HSPF2) | 8.4 |
| Region Compatibility | Nationwide |

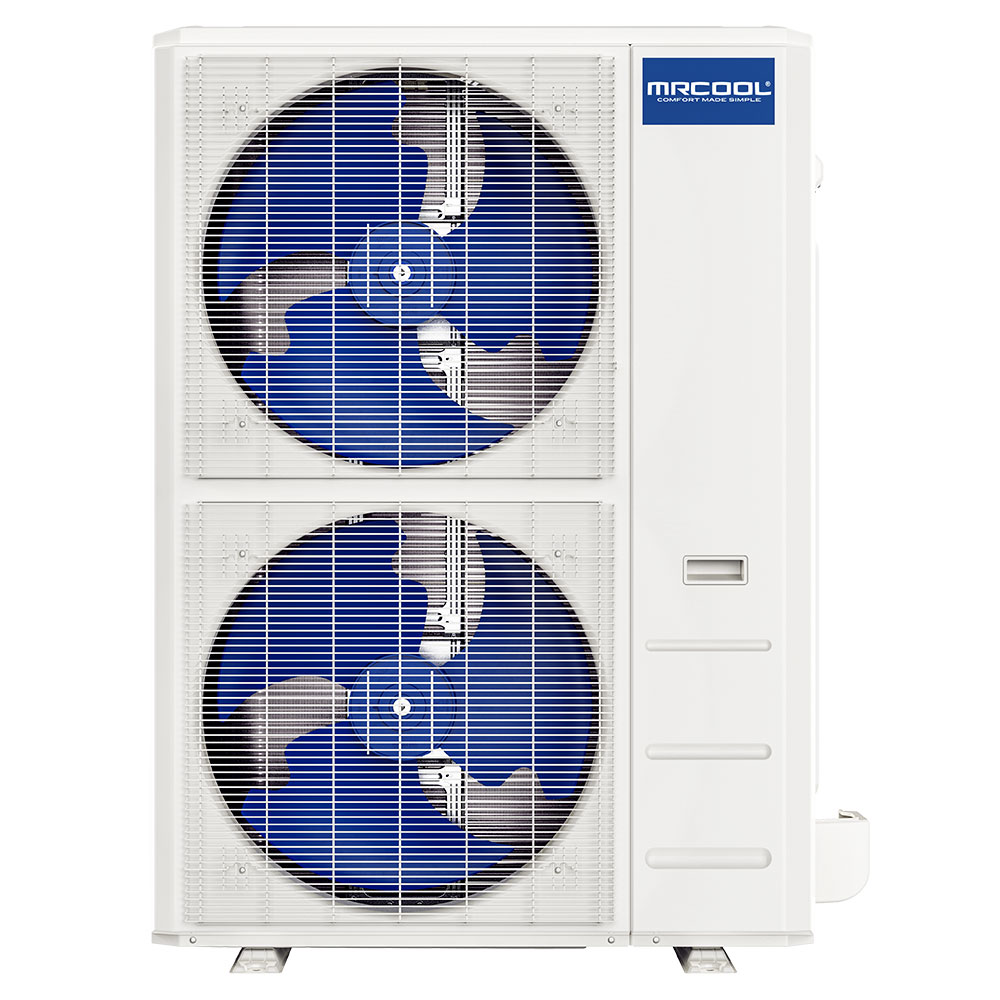

CENTRAL-60-HP-C-230B00-O Specifications:
| Model | CENTRAL-60-HP-C-230B00-O |
|---|---|
| UPC | 840255586542 |
| AHRI Number | 216032534 |
| Product Height (in) | 52.48 |
| Product Length (in) | 37.48 |
| Compressor | Inverter |
| Product Width (in) | 16.34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 275.130000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 16 |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Labor |
| Region Compatibility | Nationwide |
MGM96EE120D5NB Specifications:
| Model | MGM96EE120D5NB |
|---|---|
| UPC | 840255582674 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 24.5 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 190.000000 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP4860DOTB Specifications:
| Model | MCMP4860DOTB |
|---|---|
| UPC | 840255582827 |
| Product Height (in) | 28 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 24.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 81.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year, 10 Year Parts |
MCMP4860D-F Specifications:
| Model | MCMP4860D-F |
|---|---|
| UPC | 840255582827 |
| Product Height (in) | 24.5 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.800000 |
