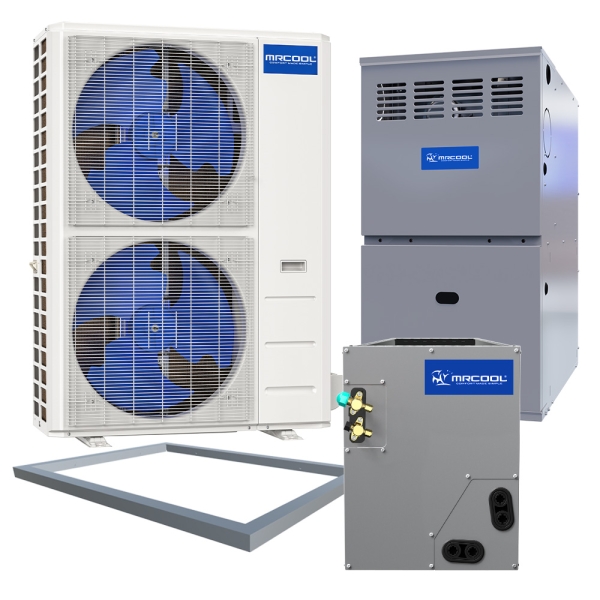

5 Ton 15.7 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All MRCOOL

Accessories
Description / Documents
Fluctuating seasonal temperatures don’t have to spell the end for consistent climate control in your home with the 5 Ton 15.7 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B. Earning CSA, UL, and ETL listings, on top of AHRI and Energy Star certifications, each piece of the MrCool System proves its trustworthiness. Make the most of your 2500 to 3000 square foot home all year long with the integration of a 5 Ton MrCool Split System.
Handling summer’s heat and winter’s chill, the condenser in the 5 Ton 15.7 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B won’t leave you to suffer through any season. Thanks to Gold Fin corrosion protection, areas along the coast or near industrial equipment won’t corrode. The combination of a modular design, slide-out blower, self-diagnostics, and magnetic covered filter rack, maintenance is designed to be simple. Versatile setup options and variable speed operation combine to ensure the MrCool Split System won’t fall short of your needs.
Providing top-tier heating performance that fends off frigid temperatures, the furnace in the 5 Ton 15.7 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B won’t leave you shivering during winter. The included LP kit and multi-position installation options are easy to accommodate in almost any home. The durable build and finish of the two-stage MrCool Split System is exactly what your space needs to survive the worst Mother Nature can throw your way.
Filled with R454B refrigerant, the evaporator coil in the 5 Ton 15.7 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B rounds out the impressive performance of the system. Between downflow, upflow, and right or left horizontal setup options, the MrCool Coil equipped with CoolGuard corrosion resistance can be installed almost anywhere. A compact design fits perfectly to the furnace with a flange adapter. The pre-installed TXV can flip the refrigerant flow between modes, allowing the MrCool Split System to meet your wildest expectation in every season.
Performance is only part of the game changing benefits of this MrCool Split System. Backed by a warranty that includes 10 years of parts coverage on the condenser, furnace, and evaporator coil, an expansion of that coverage to include the condenser’s compressor and labor, and the inclusion of a lifetime warranty on the heat exchanger in the furnace, it’s easy to see the many benefits of this HVAC upgrade. Choose the 5 Ton 80k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System utilizing R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | CEN60P60M96080C |
|---|---|
| UPC | 840255599740 |
| AHRI Number | 217666239 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.7 |
| Heat Pump Efficiency (HSPF2) | 8.6 |
| Region Compatibility | Nationwide |
CENTRAL-60-HP-C-230B00-O Specifications:
| Model | CENTRAL-60-HP-C-230B00-O |
|---|---|
| UPC | 840255586542 |
| AHRI Number | 216032534 |
| Product Height (in) | 52.48 |
| Product Length (in) | 37.48 |
| Compressor | Inverter |
| Product Width (in) | 16.34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 275.130000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 16 |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Labor |
| Region Compatibility | Nationwide |
MGM96EE080C4NB Specifications:
| Model | MGM96EE080C4NB |
|---|---|
| UPC | 840255582650 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 165.000000 |
| Primary Heating Capacity | 85,001 - 90,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP4860COTB Specifications:
| Model | MCMP4860COTB |
|---|---|
| UPC | 840255582810 |
| Product Height (in) | 27.8 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21.5 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21.6 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 97.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year, 10 Year Parts |
MCMP4860C-F Specifications:
| Model | MCMP4860C-F |
|---|---|
| UPC | 840255582810 |
| Product Height (in) | 21 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.700000 |
