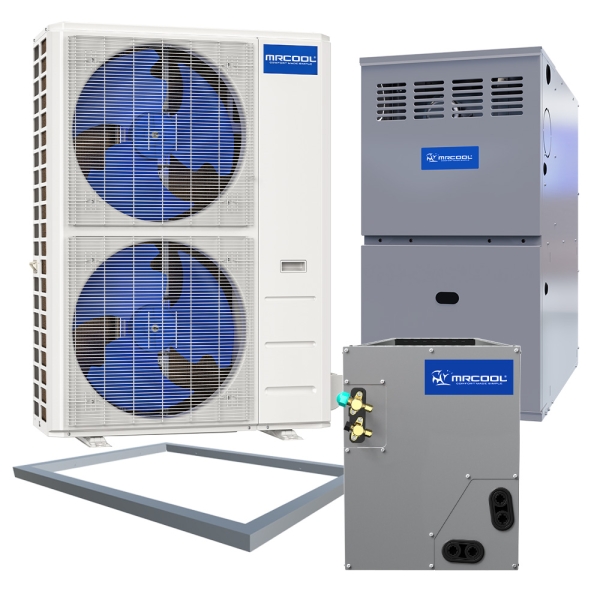

Nothing is worse than suffering through inadequate climate control from an old HVAC system due to dramatically fluctuating seasonal temperatures in winter and summer. With the 5 Ton 15.9 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B, staying comfortable has never been easier. Backed by CSA, UL, and ETL listings, plus AHRI and Energy Star certifications, the components of the MrCool System have proven their performance claims. Guarantee crisp summers and cozy winters for your 2500 to 3000 square foot home with a 5 Ton MrCool Split System.
Accessories
Description / Documents

Nothing is worse than suffering through inadequate climate control from an old HVAC system due to dramatically fluctuating seasonal temperatures in winter and summer. With the 5 Ton 15.9 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B, staying comfortable has never been easier. Backed by CSA, UL, and ETL listings, plus AHRI and Energy Star certifications, the components of the MrCool System have proven their performance claims. Guarantee crisp summers and cozy winters for your 2500 to 3000 square foot home with a 5 Ton MrCool Split System.

Providing year-round temperature regulation, the condenser in the 5 Ton 15.9 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B handles anything you throw its way with ease. The Gold Fin corrosion protection allows installation in regions along the coast or near industrial zones. The combination of a modular design, slide-out blower, self-diagnostics, and magnetic covered filter rack, maintenance is designed to be simple. Versatile setup options and variable speed operation combine to ensure the MrCool Split System is designed for every season.

Even the worst winter weather won’t leave the furnace in the 5 Ton 15.9 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B struggling to keep you snug. The included LP kit and multi-position setup options make it easy to install the MrCool furnace in almost any home. Thanks to the resilient design and finish of the two-stage MrCool Split System, you and your loved ones can stay comfortable with toasty temperatures.

Pre-charged with R454B refrigerant, the evaporator coil in the 5 Ton 15.9 SEER2 100k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B rounds out the impressive performance of the system. Supporting upflow, downflow, and right or left horizontal orientations, the MrCool Coil with CoolGuard corrosion resistance suits almost any home HVAC system setup. The dense design uses the flange adapter to attach to the furnace. With a pre-installed TXV to swap the refrigerant flow between modes, the MrCool Split System can meet your every expectation all year long.

This level of performance is already enough to make a positive impact on your home, but MrCool doesn’t stop there. Supporting 10 years of parts coverage on the condenser, furnace, and evaporator coil, 10 years on the compressor and labor of the condenser, and a lifetime of coverage on the heat exchanger in the furnace, what more could you ask for from an upgrade? Bring home the 5 Ton 100k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System running on R454B refrigerant today.

Customer Reviews / Q&A
Specifications

System Overview

Model CEN60P60M96100C
UPC 840255599757
AHRI Number 217666240
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
Bundle Cooling Capacity 5 Ton
Bundle Cooling Efficiency (SEER2) 15.9
Heat Pump Efficiency (HSPF2) 8.4
Region Compatibility Nationwide

CENTRAL-60-HP-C-230B00-O Specifications:

Model CENTRAL-60-HP-C-230B00-O
UPC 840255586542
AHRI Number 216032534
Product Height (in) 52.48
Product Length (in) 37.48
Compressor Inverter
Product Width (in) 16.34
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 9
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 275.130000
Primary Heating Capacity 45,001 - 50,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 16
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, 10 Year Labor
Region Compatibility Nationwide

MGM96EE100C5NB Specifications:

Model MGM96EE100C5NB
UPC 840255582667
Product Height (in) 33.75
Gas Furnace Efficiency 96+%
Product Length (in) 24.813
Configuration Floor Mounted
Product Width (in) 21
Air Flow Direction Horizontal, Vertical
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 173.000000
Primary Heating Capacity 105,001 - 110,000 BTU
Series VersaPro
System Application Type Central Split Systems
Vent Connection 2 inches, 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger

MCMP4860COTB Specifications:

Model MCMP4860COTB
UPC 840255582810
Product Height (in) 27.8
Air Flow Direction Downflow, Horizontal, Upflow
Product Length (in) 21.5
Cooling Capacity 5 Ton
Product Width (in) 21.6
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 97.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 10 Year, 10 Year Parts

MCMP4860C-F Specifications:

Model MCMP4860C-F
UPC 840255582810
Product Height (in) 21
Product Length (in) 21
Product Width (in) 0.9
Weight (lbs) 1.700000
