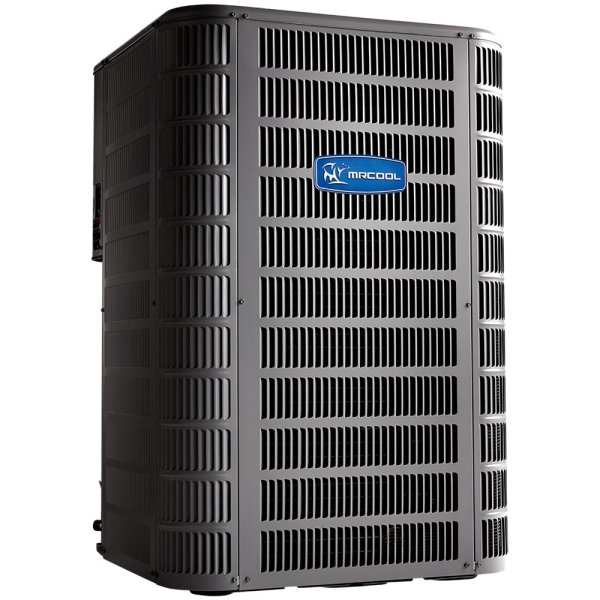

5 Ton 15 SEER MrCool Signature Central Heat Pump Condenser
Shop All MRCOOL

Description / Documents
Look out for your home air comfort and energy consumption simultaneously with a 5 Ton 15 SEER MrCool Signature Central Heat Pump Condenser. When properly integrated with other high efficiency MrCool HVAC products, the MHP15060A condenser can heat, cool, dehumidify, and save money on utilities all year long. It's exactly the kind of central split system you want when you need heating, cooling, dehumidifying, and also like money. But how does it work so well?
As with any other sophisticated machine, the MHP15060A condenser is only as good as the sum of its parts. Fortunately, it has a lot of great parts.
The 5 Ton 15 SEER MrCool Signature Central Heat Pump Condenser features high quality components like a 100% aluminum condenser coil with durable tubing and enhanced louvered fin. It also comes with louvered panel coil protection, easy-access electrical panels, bi-directional liquid line filter drier, discharge muffler, short cycle protection, and more.
Plus, all units are run tested before they leave the factory floor to ensure every MHP15060A will work flawlessly after installation. They're ETL and ETLC approved and AHRI certified. They come with a great warranty that can be extended even further when registered online within 60 days of the initial install.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MHP15060A |
|---|---|
| UPC | 810512031061 |
| Product Height (in) | 43 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 32.25 |
| Compressor | Single Stage |
| Product Width (in) | 32.25 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 8.2 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 297.000000 |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 15 SEER |
| Series | Signature |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | North |
