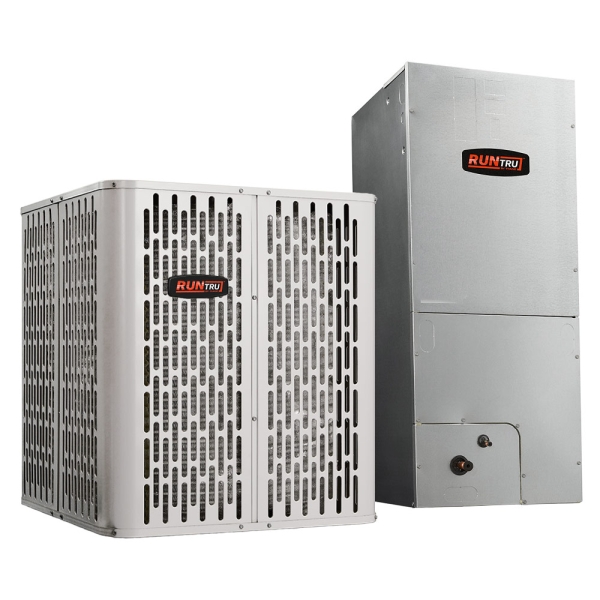

5 Ton 15 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition - R454B
Shop All RUNTRU

Accessories
Description / Documents
Finding a dependable solution to bolster the climate control results you desire in your home when your outdated HVAC system fails to craft comfortable temperatures? While the vast number of choices available on the market and recent changes to refrigerant regulations may make the task seem overwhelming, the 5 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition simplifies the decision by offering the perfect fit for your home in a single package. Supported by both UL listing and AHRI certification, this Trane RunTru Heat Pump has passed extensive third-party evaluations to validate the integrity of every operational claim. Built to manage the temperature regulation needs of spaces ranging from 2500 to 3000 square feet, this 5 Ton Trane Split System provides the consistent comfort you’ve been looking for.

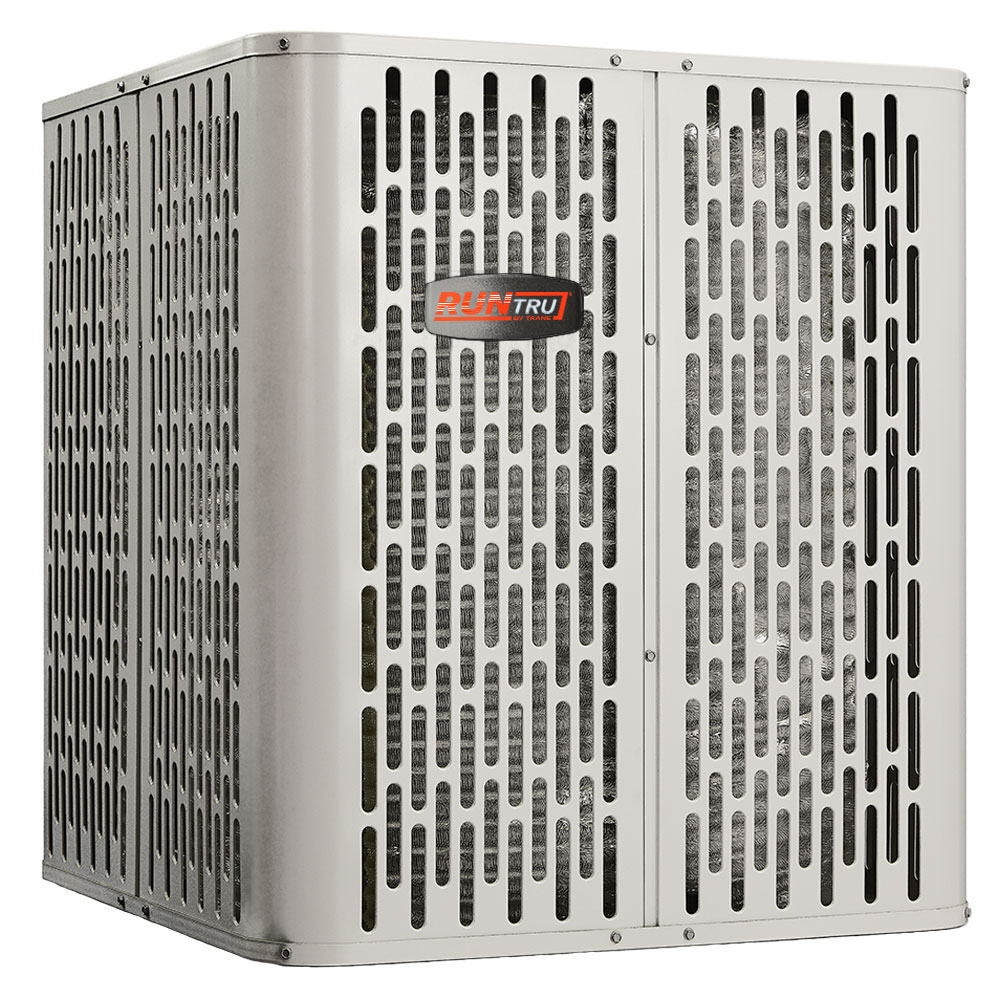

Designed with a range of meticulously selected hardware, the heat pump in the 5 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition is engineered to deliver long-term comfort over time. The housing is constructed from heavy-gauge galvanized steel coated with a weather-resistant powder paint treatment, even passing a 1000-hour salt spray test, confirming its durability. Additionally equipped with louvered panels on all sides, the internal parts are effectively shielded from harsh weather. The condenser coil is constructed to minimize airflow resistance while improving heat transfer efficiency, ensuring outstanding energy efficiency. This Trane RunTru Split System is equipped to operate in outdoor temperatures up to 115 degrees Fahrenheit, working to cool your space down to 55 degrees Fahrenheit as standard, with the option to craft temperatures as low as 20 degrees using an optional kit, guaranteeing reliable performance no matter the season.
Pushing the boundaries of performance further, the air handler in the 5 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition takes the overall system efficiency to even greater heights. The casing of this Trane Spilt System is an unpainted galvanized metal cabinet that’s lined with captured foil-faced insulation, reducing heat loss during normal operation and optimizing energy efficiency. Offering a range of flexible installation options that can accommodate downflow, upflow, and both left and right horizontal orientations, this Trane RunTru System ensures a perfect fit for your home’s unique layout. With its compact structure and easy-to-clean interior surfaces, this Trane Split System makes setup and service work a breeze for licensed technicians, saving you both time and money at every step.
With so many outstanding benefits at your disposal, what more could you be waiting for? Invest in this 5 Ton Variable Speed Multiposition Trane RunTru Central Heat Pump Split System today and transform your home into the peaceful haven you’ve always envisioned.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5HP5060A1000A, A5AHV006A1D30A |
|---|---|
| AHRI Number | 214296794 |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15 |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Region Compatibility | Nationwide |
A5HP5060A1000A Specifications:
| Model | A5HP5060A1000A |
|---|---|
| UPC | 612461426796 |
| Product Height (in) | 45.13 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 34.25 |
| Compressor | Single Stage |
| Product Width (in) | 37.25 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 50 amps |
| Weight (lbs) | 301.000000 |
| Primary Heating Capacity | 48,000 - 60,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A5AHV006A1D30A Specifications:
| Model | A5AHV006A1D30A |
|---|---|
| UPC | 612461498458 |
| Product Height (in) | 57.45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.15 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton, 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 185.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Evaporator Coil |
