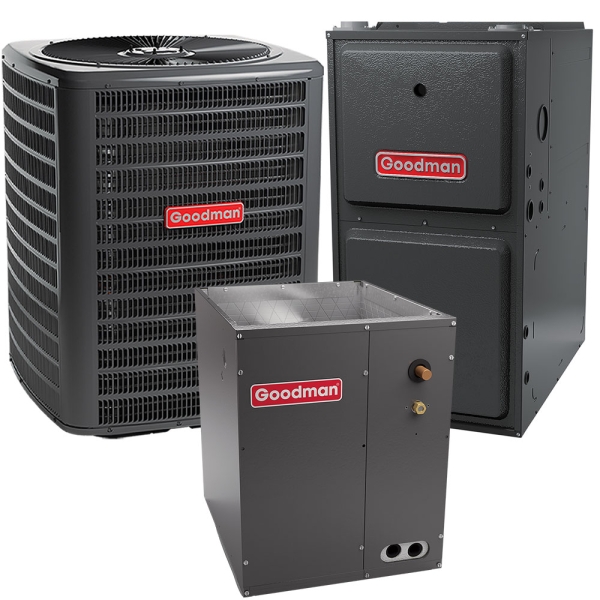

5 Ton 16 SEER 2 Stage 120k BTU 96% AFUE Variable Speed Goodman Heat Pump & Gas Central Split System - Upflow

Item: HA16427
Models: GSZC180601, CAPF4961D6, GMVC961205DN , TX5N4
Condition: New


Availability: Out of stock

As low as: $9,213.00

Price as configured: $9,213.00

Call for availability

Up To $200 Local Pickup Discount

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Overview



Goodman 4 to 5 Ton Evaporator Coil - CAPF4961D6

Goodman HA10479

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Goodman 120k BTU 96% AFUE Variable Speed 2 Stage Gas Furnace - GMVC961205DN

Goodman HA10692

Manufacturer Highlights

The Goodman® brand GMVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Aluminized-steel dual-diameter tubular heat exchanger
  • Two-stage gas valve operates with two-stage or single stage thermostats
  • ComfortNet™ Communications System compatible
  • Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
  • 120V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostic and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • Multiple continuous fan speed options for quiet air circulation
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet two-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Designed for multi-position installation: Upflow, Horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GSZC180601,CAPF4961D6,GMVC961205DN,TX5N4
UPC 663051549326
AHRI Number 201691790
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
Bundle Cooling Capacity 5 Ton
Bundle Cooling Efficiency 16 SEER
EER 12.5
Heat Pump Efficiency (HSPF) 9.2
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

GSZC180601 Specifications:

Model GSZC180601
UPC 663051563872
Avg Coverage Area 2,500 - 3,000 Sq Ft
Compressor Two Stage
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 38.25
Product Length (in) 35.5
Product Width (in) 35.5
Refrigerant R-410a
Cooling Efficiency 18 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor
Weight (lbs) 336.0000
Region Compatibility Nationwide

CAPF4961D6 Specifications:

Model CAPF4961D6
UPC 663051440425
Air Flow Direction Vertical
Cooling Capacity 4 Ton, 5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 30
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 76.0000

GMVC961205DN Specifications:

Model GMVC961205DN
UPC 663051469280
AHRI Number 7368842
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 2,000 - 2,400 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 20 amps
Primary Heating Capacity 115,001 - 120,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 156.0000

TX5N4 Specifications:

Model TX5N4
UPC 681344941473
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
