This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

5 Ton 16 SEER 2 Stage Goodman Central Air Conditioner Condenser

Item: HA10536
Model: DSXC160601
Condition: New

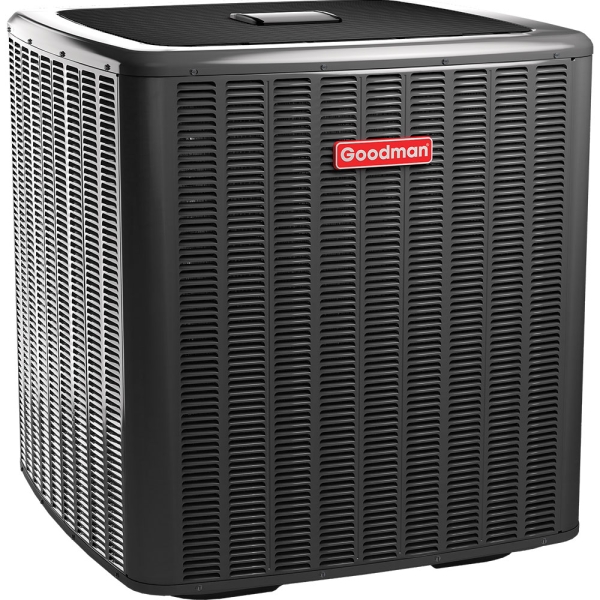

5 Ton 16 SEER 2 Stage Goodman Central Air Conditioner Condenser Zoom

Photo Gallery

Do you want a truly excellent air conditioner? The Goodman DSXC16 5 Ton 2-Stage Air Conditioner is what you've been looking for. This quality Goodman HVAC unit features a two-stage Copeland compressor, R-410A refrigerant, ComfortAlert diagnostics and ComfortNet Communications System compatibility, compressor sound blanket, color-coded terminal strip, ambient temperature sensors, two-speed quiet condenser fan motor, and some of the best warranty protection in the business.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Do you want a truly excellent air conditioner? The Goodman DSXC16 5 Ton 2-Stage Air Conditioner is what you've been looking for. This quality Goodman HVAC unit features a two-stage Copeland compressor, R-410A refrigerant, ComfortAlert diagnostics and ComfortNet Communications System compatibility, compressor sound blanket, color-coded terminal strip, ambient temperature sensors, two-speed quiet condenser fan motor, and some of the best warranty protection in the business.
Goodman HA10536

Manufacturer Highlights

The Goodman® brand DSXC Series Air Conditioners offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with 2 low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of 6 fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches - Factory-installed filter drier
  • Coil and ambient temperature sensors
  • Two-speed, quiet condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DSXC160601
UPC 663051503991
Avg Coverage Area 2,500 - 3,000 Sq Ft
Compressor Two Stage
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 60 amps
Product Height (in) 38.25
Product Length (in) 35.5
Product Width (in) 35.5
Cooling Efficiency 16 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight (lbs) 301.0000
Region Compatibility Nationwide
California Residents see Prop 65 WARNING
