This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

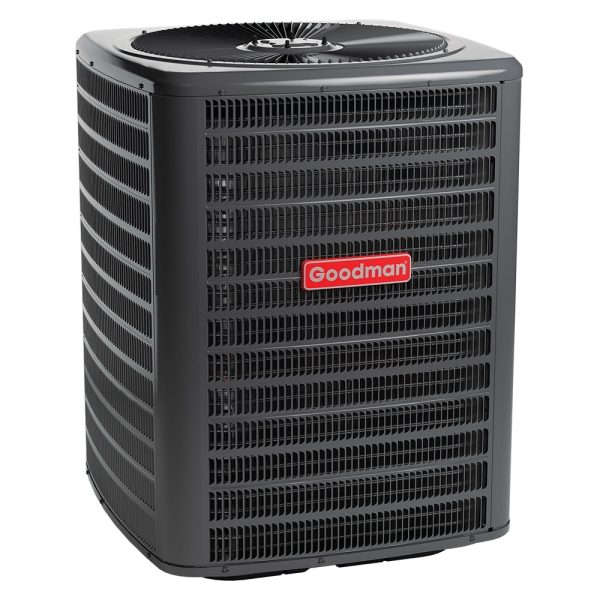

5 Ton 16 SEER Goodman Central Air Conditioner Condenser

Item: HA10994
Model: SSX160591
Condition: New

5 Ton 16 SEER Goodman Central Air Conditioner Condenser Zoom

Photo Gallery

The best way to survive high summer temperatures is with an air conditioner. The best way to survive while saving money is with a Goodman SSX160591 High Efficiency Air Conditioner. Every SSX160591 features copper tube coils with enhanced aluminum fins, sweat connection service valves with easy access to gauge ports, and a high quality compressor sound blanket. It even comes standard with a Lifetime Compressor Limited Warranty.

Recommended Alternative:

  1. 5 Ton 16 SEER Goodman Central Air Conditioner Condenser

    5 Ton 16 SEER Goodman Central Air Conditioner Condenser

    Was: $1,992.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman
Up to 15% Off - Members Only

What's Included

What customers are saying...



Overview

Stay comfortable all summer long with the 5 Ton 16 SEER Goodman SSX160591 Central Air Conditioner Condenser. Goodman designed this condenser with everything the high efficiency Copeland compressor has to offer. The compressor and condenser fan operate in harmony to deliver high performance at quieter sound levels than your typical air conditioning condenser. The scroll compressor has fewer moving parts than a piston compressor which leaves you with a quiet humming sound and the added sound blanket muffles the noise. The condenser fan blade design also offers quiet sound levels and gives you a combination that performs nicely. This unit is a great combination that offers you a 16 SEER rating for energy savings and quiet operation that will keep you sleeping through out the night.

The 5 Ton 16 SEER Goodman Central Air Conditioner Condenser is built with high quality materials and components to deliver a reliable and efficient experience. The condensing coil is built with corrugated aluminum fins that allows for more efficient heat transfer.

This 5 ton condensing unit is sized to accommodate homes that are between 2400 and 3300 square feet in size. The large range is based on climate conditions in different locations. Depending on your homes construction and the location you may need a larger or smaller unit. Or if you are replacing existing equipment you can find out the tonnage that was previously installed and size your new one accordingly.

The best way to survive high summer temperatures is with an air conditioner. The best way to survive while saving money is with a Goodman SSX160591 High Efficiency Air Conditioner. Every SSX160591 features copper tube coils with enhanced aluminum fins, sweat connection service valves with easy access to gauge ports, and a high quality compressor sound blanket. It even comes standard with a Lifetime Compressor Limited Warranty.

Goodman HA10994

Manufacturer Highlights

The Goodman® brand SSX Series Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • High-efficiency Copeland® scroll compressor
  • High- and low-pressure switches
  • High-quality compressor sound blanket
  • 850 RPM condenser fan motor
  • Factory-installed liquid-line filter drier
  • Service valves with sweat connections and gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Goodman® brand sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model SSX160591
UPC 663051439191
Avg Coverage Area 2,500 - 3,000 Sq Ft
Compressor Two Stage
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 50 amps
Product Height (in) 38.25
Product Length (in) 35.25
Product Width (in) 35.25
Cooling Efficiency 16 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor
Weight (lbs) 296.0000
Region Compatibility Nationwide
